CWA6185x2000 4 tons load heavy duty metal lathe machine
- Dalian/Tianjing/Shanghai/Qingdao China
- T/T
You May Like
-
CW61160x1500mm 10 tons load heavy duty horizontal lathe
-
CW61200x4000 10 tons load heavy duty lathe machine for sale
-
CW61180x10m 10 tons load heavy duty conventional lathe
-
CW61180 10 tons load china heavy duty horizontal metal lathe
-
CW61200x8000 10 tons load china heavy duty lathe
-
CC61250 Series heavy duty manual horizontal lathe machine made in china
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | Normal | Automatic Grade | Manual | |
| Max. Swing Diameter | 850mm | Place of Origin | Liaoning, China | |
| Brand Name | LFM | Model Number | CW6285x2000 heavy duty metal lathe machine | |
| Voltage | Customer's Requirement | Power(W) | 15kW | |
| Dimension(L*W*H) | 2,150x1,500x1,500mm | Weight | 4300kgs | |
| Certification | CE, ISO9001:2008 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

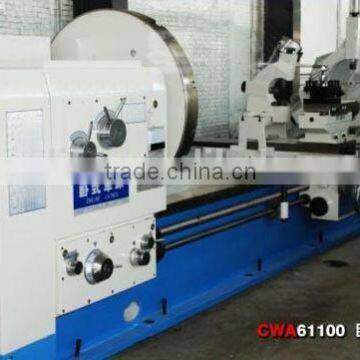

CWA6185x2000 heavy duty metal lathe machine
Such heavy duty lathe machines have following features:
1. mainly suitable for various cutting jobs, such as internal and external cylindrical surfaces turning, facing and various pipe thread cutting.
2. can also be used for drilling, boring trepanning etc.
3. gap lathe can process the deformation parts;
4. fine appearance, concentrated control arrangement for easy operating and convenient maintenance.
5. threads types: Metric, inch, diametrical pitch, module thread
6. DRO is avaible;
Specifications | Unit | Parameter |
Swing over bed | mm | 850 |
Max. Swing over carriage | mm | 520 |
Max. Swing over gap | mm | 1150 |
Gap width from chuck | mm | 470 |
Distance between centers | mm | 2000 |
Max. length to be cut | mm | 1800 |
Max. bed ways width | mm | 600 |
Max. supporting capacity of centers | kg | 4000 |
Spindle nose |
| ISO A2-11 |
Spindle bore |
| 100 |
Spindle speed |
| 5~630 (4 steps) |
Number of feeds and range | rpm | 64 |
Longitudinal | mm | 0.08 ~ 9.6 |
Cross slide | mm | 0.04 ~ 4.8 |
Compound slide | mm | 0.02 ~ 2.4 |
No. & Range of metric threads | mm | 56 Kinds, 1 ~ 120 |
No. & Range of inch threads | T.P.I. | 56 Kinds 30 ~ 1 / 4 |
No. & Range of module threads |
| 56 Kinds 0.5 ~60 |
No. & Range of diametric pitchs |
| 56 Kinds 60 ~ 0.5 |
Rapid traverse speed (longitudinal) | mm/min | 3640 |
Rapid traverse speed (cross) | mm/min | 1800 |
Max. travel of cross slide | mm | 600 |
Max. travel of tool post | mm | 250 |
Dia. Of tailstock sleeve | mm | 120 |
Travel of tailstock sleeve |
| Morse No. 6 |
Power of main motor with inverter | kW | 15 |
Power of rapid motor | kW | 1.5 |
Power of pump motor | kW | 0.55 |
Power of cooling motor | kW | 0.15 |
Net dimension of the machine | mm | 2,150×1,500×1,500 |
Packing dimension of the machine | mm | 2,500×1,900×1,820 |
N. W./ G. W. | Kg | 4,300 / 4,850 |
Name | Size | Note |
4-jaw chuck | DIA. 800 mm | 1 SET |
Steady rest | RANGE 40 ~ 350 mm | 1 SET |
Follow rest | RANGE 30 ~ 120 mm | 1 SET |
Dead center |
| 2 PCS |
Reducing sleeve |
| 1 PCS |
Living center |
| 1 SET |
Cooling system |
| Yes |
Work light |
| Yes |
Special tools |
| Yes |
Operation manual |
| Yes |
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
kinds of colors for your choice/can be customized
