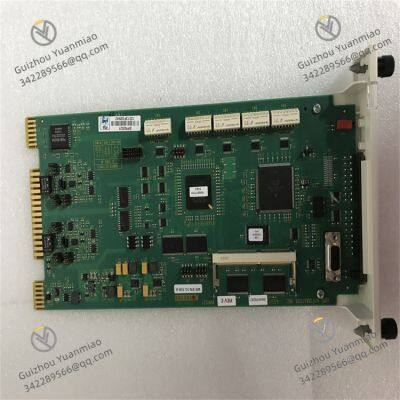

ABB Bailey IIMCP01 Digital Input Module

ABB Bailey IIMCP01 is a digital input module belonging to the ABB Bailey series, which undertakes key signal acquisition tasks in industrial automation control systems. It is mainly used to receive various digital signals in industrial fields, such as on-off status signals of limit switches, buttons, contactor auxiliary contacts and other equipment, and convert these signals into digital information recognizable by the control system. It provides real-time and accurate on-site equipment status data for upper control units (such as DCS, PLC) and serves as an important bridge connecting on-site equipment and control systems. With its reliable performance and stable signal processing capability, this module is widely used in industrial fields such as electric power, metallurgy, chemical industry, and papermaking, providing strong support for the automatic control and monitoring of industrial production processes and ensuring the smooth operation of production processes.

•


• Number of Input Channels: Equipped with 16 independent digital input channels, which can collect status signals of multiple on-site devices at the same time, meeting the signal acquisition needs of medium and large-scale industrial sites. For example, in an automated production line, it can monitor the status of sensors at 16 different stations simultaneously to achieve comprehensive monitoring of the production process.

• Input Signal Type: Supports 24V DC digital input signals, which are well compatible with common low-voltage switchgear in industrial fields. The input current range is 2mA-10mA, which can reliably identify the on-off status of the signal.

• Response Time: The response time of the input signal is short, usually less than 10ms, which can quickly capture the instantaneous changes of the on-site equipment status, ensuring that the control system can obtain equipment information in a timely manner and make corresponding control decisions. This feature is particularly important in the monitoring of high-speed mechanical equipment, which can avoid safety accidents caused by signal delay.

• Isolation Performance: Adopts photoelectric isolation technology, and the isolation voltage between channels and between channels and the internal circuit of the module reaches 2500V AC, which effectively blocks on-site electromagnetic interference and ground loop interference, improves the working stability of the module in complex electromagnetic environments, and ensures the accuracy of signal acquisition.

• Power Requirement: The working power supply is 24V DC, with low power consumption during normal operation, and the total current is about 150mA (excluding input signal current). It has a wide power supply adaptation range (18V DC-30V DC), and can operate stably under industrial power fluctuations, reducing the risk of equipment failure caused by power supply problems.

• Environmental Adaptability: The operating temperature range is 0℃-60℃, which can work reliably in the common temperature environment of industrial workshops; the relative humidity is 5%-95% RH (non-condensing), which can adapt to humid production environments, such as paper mills, food processing plants and other places with high humidity, ensuring that the module performance is not affected by environmental humidity.

• Physical Specifications: The module has a compact size and adopts a standard rack mounting method, which is suitable for installation in ABB Bailey series control cabinets or terminal cabinets. When used with other modules, it can effectively save installation space and facilitate system integration and maintenance.

•


• Channel Status Indication: Each input channel is equipped with an independent LED indicator. The light is on, indicating that the channel has received a valid input signal; the light is off, indicating no signal or abnormal signal. Operators can intuitively understand the working status of each channel through the indicator lights, which is convenient for quick on-site troubleshooting and improves maintenance efficiency.

• Diagnostic Function: It has a certain self-diagnostic capability, which can monitor the power status of the module itself and internal circuit faults. When an abnormality is detected, it will feed back to the control system through a specific signal, trigger an alarm prompt, help maintenance personnel find and deal with module faults in a timely manner, and reduce system downtime.

• Anti-interference Design: In addition to photoelectric isolation technology, the module also adopts filtering circuits and shielding measures inside, which can effectively resist electromagnetic interference and radio frequency interference in industrial fields, ensuring that it can stably collect signals and avoid misjudgment of signal status in environments close to strong interference sources such as high-power motors and frequency converters.

• Strong Compatibility: As part of the ABB Bailey series, it is well compatible with the DCS systems of this series (such as INFI 90), and can be seamlessly integrated into the system to realize rapid data transmission and sharing, simplify the system configuration and debugging process, and reduce the user's use cost.

•


• Auxiliary Equipment Control in the Power Industry: In the auxiliary equipment control system of thermal power plants, it is used to collect limit switch signals (such as equipment operating position, valve open/close in place signals) and button signals (such as start and stop buttons) of feed water pumps, forced draft fans, induced draft fans and other equipment. These signals are transmitted to the DCS system through the IIMCP01 module, and the control system controls the start and stop of auxiliary equipment and monitors their operation according to the signal status, ensuring the stable operation of the auxiliary system and the normal power generation of the generator set.

• Monitoring of Metallurgical Production Processes: In the steel rolling production line of iron and steel plants, it is used to monitor various travel switch signals (such as roll position, steel plate conveying in place signals) and safety interlock signals (such as protective door closing signals) of rolling mill equipment. The module feeds these signals back to the control system in real time. When an abnormal signal occurs (such as the protective door not being closed), the control system immediately issues an instruction to stop the operation of the rolling mill to prevent safety accidents and ensure production safety.

• Status Monitoring of Chemical Equipment: In chemical production devices, it collects auxiliary contact signals of the stirring motor contactor of the reactor (to determine whether the motor is running) and solenoid valve status signals of valves (to determine whether the valve is acting). Through the module, these signals are transmitted to the control system, so that operators can grasp the operating status of the equipment in real time in the control room. When the equipment shuts down abnormally or the valve does not act according to the instruction, timely measures can be taken to avoid affecting the production progress or causing potential safety hazards.

• Control of Papermaking Production Lines: In the paper production line of paper mills, it is used to collect sensor signals from various parts of the paper machine, such as paper tension detection switch signals and paper break detection signals. When a paper break signal is detected, the module quickly transmits the signal to the control system, and the control system immediately stops the operation of related equipment to prevent equipment damage and raw material waste caused by continued paper transportation, improving the automation level and production efficiency of the production line.
