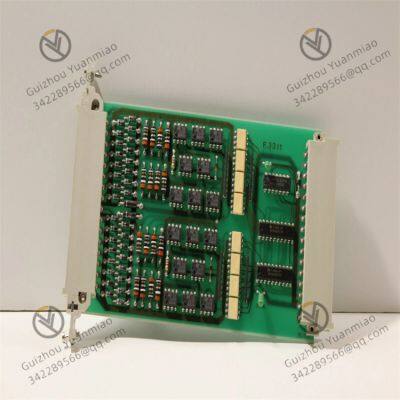

HIMA F3349 Digital Input/Output Module

Functional Features

• High Reliability and Safety: Complies with strict safety standards, featuring fault-tolerant and redundant functions. Even in the event of component failure, it can maintain system integrity and ensure stable operation in environments with extremely high requirements for safety and reliability.

• Rugged and Durable: Adopts a robust structural design, capable of withstanding extreme temperatures, vibrations, and electrical interference, and can work stably for a long time in harsh industrial environments.

• Flexible Output Configuration: Offers multiple output options and supports various output configurations, enabling flexible integration into different system architectures to meet diverse application needs.

• Easy Integration: Supports standard communication protocols and interfaces, allowing for easy integration into existing systems and facilitating connection with other devices and control systems.

• Diagnostic Function: Integrates diagnostic capabilities to monitor the module's status, helping to quickly troubleshoot faults and simplify maintenance.

• Number of Channels: Typically has 16 digital I/O channels, capable of processing multiple input and output signals simultaneously to meet various control requirements.

• Output Voltage and Current: The output voltage is generally 24V DC, with each channel's output current reaching up to 0.5A and a switching capacity of 12W per channel.

• Power Supply Requirement: Powered by a 24V DC power supply to ensure operation under stable voltage.

• Communication Method: Uses RS-485 for communication, enabling data transmission and interaction with other devices.

• Safety Level: Reaches SIL 3 (IEC 61508) safety standard, with high safety performance.

• Installation Method: Adopts DIN rail mounting, facilitating installation and layout in industrial control cabinets.

• Protection Level: Usually IP65, providing good dust and water resistance to adapt to harsh industrial environments.

• Operating Temperature: The operating temperature range is generally -20℃ to +70℃, and the storage temperature is -40℃ to +85℃, with strong temperature adaptability.

• Safety Control of Chemical Reactors: In chemical production, the F3349 module can be used in the safety control system of reactors. It receives signals from sensors such as temperature, pressure, and liquid level through 16 digital input channels to monitor the operating status of the reactor in real-time. When abnormal conditions such as excessive temperature or overpressure occur, it drives actuators like emergency shut-off valves and cooling system valves through 8 digital output channels to quickly take safety measures and prevent accidents.

• Emergency Shutdown Control of Oil and Gas Pipelines: In oil and gas transmission pipeline systems, the F3349 module can be connected to leakage detection sensors, flame detectors, and other devices along the pipeline to receive their switching signal inputs. When dangerous situations such as pipeline leakage or fire are detected, the module controls emergency shutdown devices through output channels according to preset logic, closes pipeline valves, cuts off oil and gas transmission, ensures pipeline safety, and realizes the safety interlock function.

•


• Equipment Protection in Power Plants: In power plants, the F3349 module can be used in the protection systems of key equipment such as generators and transformers. It receives digital signal inputs from overvoltage and overcurrent protection devices. When abnormalities occur in the equipment, it promptly drives emergency isolation devices of generators, valves of transformer cooling systems, etc., through output channels, enabling the equipment to quickly enter a safe state and avoiding equipment damage and large-scale power outage accidents.

• Safety Gate Control in Automobile Production Lines: In automobile manufacturing production lines, the F3349 module can be connected to safety gate sensors to receive signals of the safety gate's open/close status. When the safety gate is not closed or is abnormally opened during production, the module controls the shutdown of relevant equipment on the production line through output channels to prevent harm to operators and ensure safe and orderly production.

• Pump Start/Stop Control in Sewage Treatment Plants: In sewage treatment plants, the F3349 module can real-time monitor signal inputs from water quality sensors and liquid level sensors to keep track of sewage quality and liquid level. When the water quality exceeds the standard or the liquid level reaches the set threshold, the module controls the start and stop of pumps through output channels to ensure the normal operation of the sewage treatment process and avoid problems such as sewage overflow or substandard treatment.
