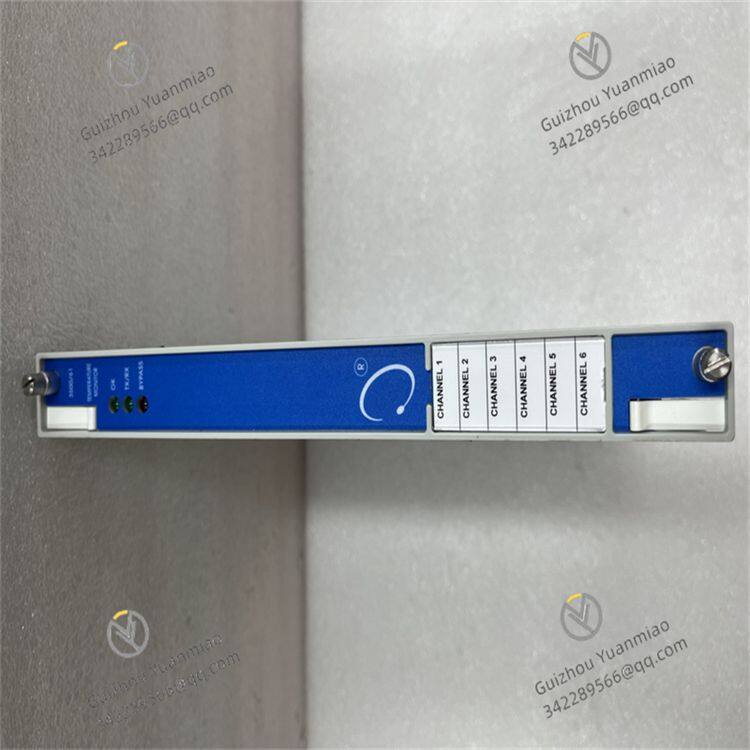

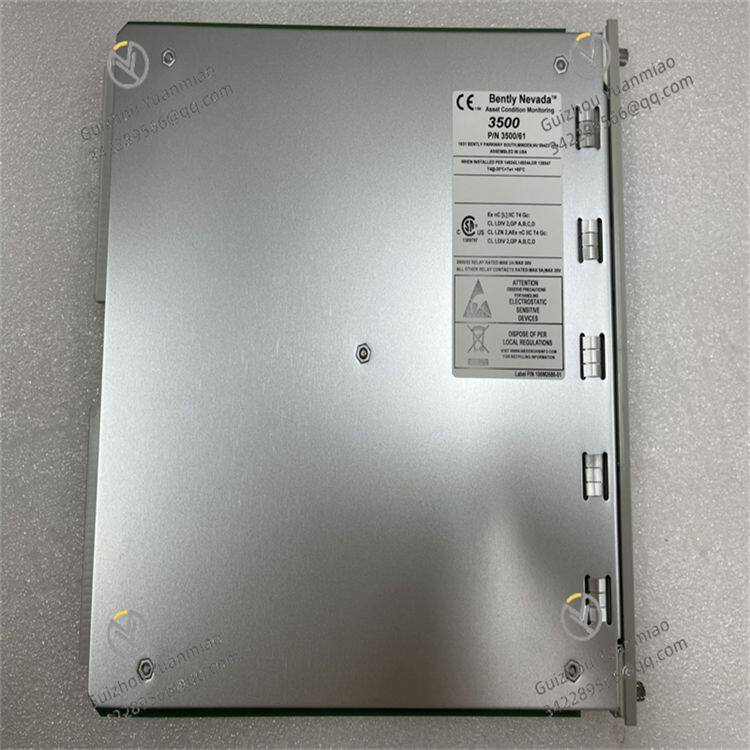

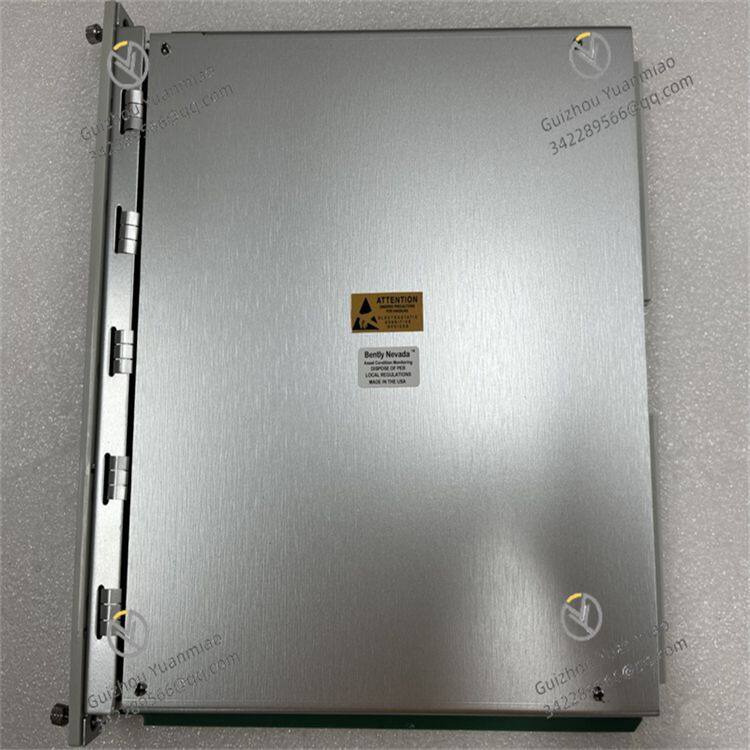

Bently Nevada 3500/61 Temperature Monitor

Bently Nevada 3500/61 is an important relay output module in the Bently Nevada 3500 series monitoring system, playing a key executive role in the industrial equipment condition monitoring and protection system. It mainly receives alarm signals from 3500 series monitoring modules (such as 3500/32M, 3500/40M, etc.) and converts these signals into relay contact actions according to preset logic, thereby realizing shutdown control of on-site equipment, triggering of sound and light alarms, or linkage with other control systems. As a bridge between the monitoring system and the executive mechanism, this module ensures that alarm signals can be quickly and reliably converted into actual protection actions, effectively preventing serious damage to equipment due to fault expansion. It is widely used in large rotating machinery protection systems in industries such as electric power, petrochemicals, and metallurgy.

•


• Number of Relay Outputs: Usually equipped with 8 pairs of independent relay contacts, each pair of contacts can be flexibly configured as normally open or normally closed mode, which can meet the control needs of multiple actuators (such as shutdown circuits, alarm lights, alarms, etc.) and support diversified protection logic designs.

• Contact Capacity: Each pair of relay contacts has a strong rated load capacity, with common rated values of 250V AC/5A or 30V DC/5A, which can directly drive small and medium-sized contactors, solenoid valves and other equipment without additional intermediate relays, simplifying system wiring.

• Response Time: The action response time of relay contacts is extremely short, generally less than 10ms, which can quickly respond to alarm signals from monitoring modules, ensuring that protection actions are triggered in time when equipment parameters exceed limits, and minimizing fault response time.

• Input Signal Type: Receives digital alarm signals from the 3500 series main frame, these signals are transmitted through the internal bus, realizing high-speed data interaction with the monitoring module, ensuring the real-time and accuracy of alarm signals.

• Power Requirements: The working power supply is 24V DC, with low power consumption during normal operation, current is about 100-200mA, and the power supply adaptation range is wide (18V DC-32V DC), which can operate stably in the environment of industrial power supply voltage fluctuations. The module integrates overvoltage and overcurrent protection circuits to improve power supply safety.

• Environmental Adaptability: The working temperature range is 0℃-60℃, which can adapt to the temperature environment in the control room or near the equipment; the relative humidity is 5%-95% RH (non-condensing), which can cope with humid industrial scenarios; it has a certain anti-electromagnetic interference ability to ensure the reliability of relay actions in complex electromagnetic environments.

• Physical Specifications: Adopts a standardized design compatible with 3500 series modules, with compact size, can be directly installed in the 3500 series frame, work with other modules, save installation space, and facilitate system integration and maintenance.

•


• Flexible Logic Configuration: Supports flexible configuration of relay output logic through 3500 series configuration software, and can set different trigger conditions according to the alarm signals of the monitoring module (such as warning, danger), such as "AND" and "OR" logic combinations, to meet the protection strategy needs of different equipment. For example, when the vibration monitoring reaches the danger value "OR" the shaft displacement exceeds the limit to reach the danger value, the shutdown relay action is triggered.

• Redundancy Design Option: Some models support redundant configuration, can form a redundant system with another 3500/61 module, the two modules receive alarm signals synchronously and drive relay contacts independently. When the main module fails, the standby module can seamlessly take over the control function to ensure the continuity of protection actions, which is suitable for key equipment protection systems with extremely high reliability requirements.

• Status Indication and Diagnosis: Equipped with clear LED indicators, each pair of relay contacts corresponds to a status light, which can intuitively display the on-off status of the contacts; at the same time, it has a self-diagnostic function, which can monitor relay coil faults, power supply abnormalities, etc., and upload diagnostic information to the upper computer through the 3500 main frame, facilitating maintenance personnel to troubleshoot in time.

• Contact Protection Function: The relay contacts are integrated with an arc suppression circuit, which can effectively suppress the arc generated when the contacts act, extend the service life of the contacts, reduce the problem of poor contact caused by arc ablation, and improve the long-term reliability of the relay.

•


• Steam Turbine Shutdown Control: In the steam turbine protection system of thermal power plants, the 3500/61 module receives dangerous alarm signals from vibration and shaft displacement monitoring modules. When any parameter exceeds the limit, the corresponding relay contact acts to cut off the oil supply circuit of the steam turbine or trigger the emergency shutdown solenoid valve, realizing the rapid shutdown of the steam turbine and preventing rotor damage or unit flying accidents.

• Compressor Alarm Linkage: In the compressor protection system of petrochemical plants, after the module receives the warning signal from the compressor vibration and temperature monitoring module, it drives the alarm relay to act, triggers the on-site sound and light alarm, and reminds the operator to check in time; if a dangerous signal is received, it triggers the shutdown relay at the same time to cut off the compressor power supply to avoid fault expansion.

• Fan Protection System: In the blast furnace fan protection system of iron and steel plants, the 3500/61 module starts the auxiliary cooling system through relay contacts when the parameters reach the warning value according to the monitoring data of fan vibration and bearing temperature; if the parameters reach the dangerous value, it immediately cuts off the fan motor power supply and links to turn on the standby fan to ensure the continuity of blast furnace air supply.
