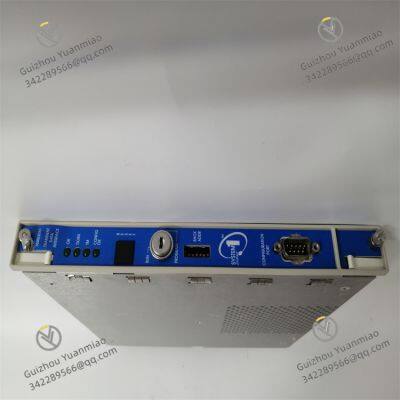

Bently Nevada 138607-01 Transient Data Interface (TDI) Module

Bently Nevada 138607-01, as a key model of the 3500/22M Transient Data Interface (TDI), occupies a core position in the industrial equipment condition monitoring system. It is mainly used to build a bridge between the 3500 monitoring system and compatible software (such as System 1 condition monitoring and diagnostic software, 3500 system configuration software). Through efficient data interaction, it helps enterprises achieve accurate insight and intelligent management and control of the operating status of industrial equipment. With its advanced design concept and excellent performance, 138607-01 plays an irreplaceable role in various industrial scenarios, especially in industries such as electric power, petrochemicals, and manufacturing that have strict requirements on equipment operation stability and real-time data transmission, providing strong support for ensuring the continuity of production processes and improving equipment maintenance efficiency.

•


• Electrical Characteristics: This module is powered by a stable 24 VDC voltage, which can effectively adapt to the common power supply environment in industrial sites and ensure stable operation of the equipment. In terms of data transmission rate, it has a high-speed transmission capability of 1 Mbps, which can quickly upload a large amount of collected equipment operation data to the back-end system, meeting the strict requirements of real-time monitoring and analysis for data timeliness. It adopts the RS-485 communication protocol, which is widely used in the field of industrial communication and has the advantages of strong anti-interference ability and long transmission distance, ensuring reliable data transmission in complex electromagnetic environments.

• Environmental Adaptability: The operating temperature range is extremely wide, from -40°C in extremely cold environments to +85°C in high-temperature scenarios. 138607-01 can work stably, unaffected by various extreme temperature conditions in industrial production. In terms of humidity, it can withstand an environment with 0% to 95% relative humidity (non-condensing). Whether in humid coastal factories or dry and high-temperature inland workshops, it can reliably perform data transmission tasks, showing strong environmental adaptability.

• Physical Specifications: The product is compact in design, and its size is perfectly compatible with the standard 3500 system rack slots. During installation, it only needs to be inserted into the slot adjacent to the 3500 rack power supply (usually slot 1), without complex modification projects, which greatly reduces the installation difficulty and time cost. Its structure is strong and durable, made of high-quality materials, which can effectively resist adverse factors such as mechanical vibration and dust erosion in industrial sites, ensuring long-term stable operation.

•


• Data Acquisition and Integration: 138607-01 integrates the data access function of the 3500/20 Rack Interface Module (RIM) and the data acquisition capability of communication processors (such as Tdxnet). It can work closely with M-series monitors (such as 3500/40M, 3500/42M, etc.) to continuously collect steady-state and transient dynamic (waveform) data during equipment operation. For example, when rotating equipment such as compressors are running, it can accurately capture the real-time changes of parameters such as equipment vibration and displacement, providing a rich and comprehensive data basis for equipment status evaluation.

• Communication and Transmission: Through the Ethernet link, this module transmits the collected data to the host software at high speed and stably. At the same time, it supports multiple communication protocols. In addition to seamless docking with mainstream System 1 software and 3500 system configuration software, it can also be compatible with the proprietary protocols of communication processors such as Tdxnet, Tdix, and Ddix. It has excellent communication flexibility and can be easily integrated into the existing complex industrial control system architectures of different enterprises.

• Data Security and Reliability: It has a built-in advanced error correction mechanism, which can monitor and repair errors in real-time during data transmission, minimize data loss, and ensure the integrity and security of transmitted information. This feature is crucial for industrial production, which can effectively avoid problems such as equipment misjudgment and operation errors caused by data errors, and ensure that the production process meets strict safety standards.

• System Integration and Scalability: As a key component of the 3500 monitoring system, 138607-01 can conveniently work with other monitoring modules, sensors, and other equipment to realize comprehensive monitoring of multi-dimensional operating parameters of equipment. In addition, its modular design gives it good scalability. Enterprises can flexibly add or upgrade modules according to the expansion of their production scale and the increase of monitoring needs to adapt to the changing industrial production scenarios.

•


• Compressor Monitoring in the Petrochemical Industry: In petrochemical production, compressors are one of the core equipment, and their operating status is directly related to the continuity and safety of production. 138607-01 can be connected to sensors at various key parts of the compressor. For example, at the thrust bearing with dual redundant axial displacement measurement points, Bentley 3300 XL series eddy current sensors are used to measure axial displacement; a tile vibration measurement point is set in the horizontal and vertical directions of each rolling support bearing, and Bentley 330500 series speed sensors are used to measure tile vibration. By continuously collecting data from these sensors and transmitting it to the back-end analysis software, operation and maintenance personnel can grasp the operating status of the compressor in real-time, timely detect potential faults such as bearing wear and rotor imbalance, arrange maintenance in advance, and avoid production interruptions and safety accidents caused by compressor faults.

• Steam Turbine Monitoring in the Power Industry: Steam turbines in power plants operate at high speeds and with frequent load changes, which have extremely high requirements on the real-time and accuracy of the monitoring system. 138607-01 can be integrated into the monitoring system of the steam turbine to collect transient and steady-state data such as vibration, temperature, and speed of the steam turbine in real-time and quickly transmit it to the monitoring center of the power plant. With the help of this data, engineers can accurately analyze the operating status of the steam turbine, adjust operating parameters in a timely manner, prevent serious faults such as blade fracture and abnormal shafting vibration, and ensure the stable supply of electric power production.

• Monitoring of Large Equipment in Manufacturing: In manufacturing workshops, the stable operation of large mechanical equipment (such as CNC machine tools, large injection molding machines, etc.) is the key to ensuring production efficiency and product quality. 138607-01 can be connected to various sensors of these equipment to collect data such as vibration, displacement, and torque during the processing of the equipment, and transmit it to the production management system through Ethernet. By analyzing this data, managers can understand the operating status of the equipment in real-time, reasonably arrange equipment maintenance plans, improve equipment utilization, reduce equipment failure rates, and thus improve the production efficiency and product quality of the entire production line.
