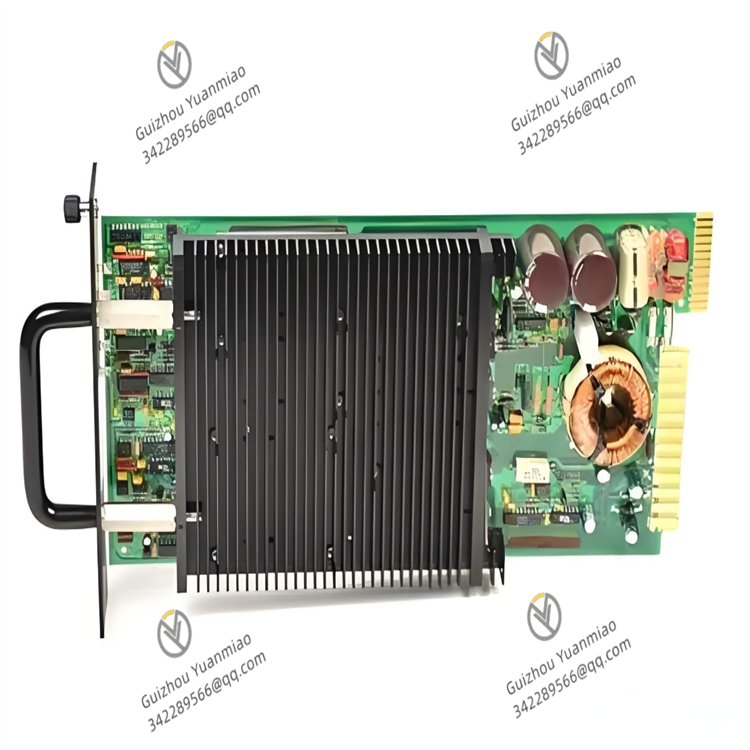

ABB Bailey IPSYS01 Selling Unit

Overview

ABB Bailey IPSYS01 is an important input/output module in the ABB Bailey automation control system, playing a key role in the field of industrial automation. Its main function is to realize efficient signal interaction between on-site equipment and the control system. It is responsible for collecting digital and analog signals from the site and accurately transmitting command signals from the control system to on-site execution equipment, ensuring stable and precise control of the entire industrial production process. It is one of the core components of building a reliable automation control system, widely applicable to various industrial scenarios, and provides strong support for the intelligent and automated upgrading of industrial production.

Core Parameters

•


• Input/Output Channels: Equipped with rich input/output channel configurations, providing multiple combination modes, such as common 16 digital inputs, 8 analog inputs, 8 digital outputs, and 4 analog outputs. It can be flexibly selected according to actual project requirements to meet diverse signal access and control needs in industrial production of different scales.

• Supported Signal Types: Digital inputs support dry contact and wet contact signals, which can be directly connected to various on-site equipment such as switches, buttons, and proximity switches to accurately sense changes in equipment status; analog inputs support standard voltage signals (such as 0-10V, ±10V) and current signals (such as 4-20mA), capable of accurately collecting process parameters like temperature, pressure, and flow. Digital outputs can drive loads such as relays and contactors, while analog outputs can provide precise control signals for equipment like control valves and frequency converters.

• Signal Processing Accuracy: Analog input and output have high accuracy, generally up to ±0.1% FS (full scale), ensuring that the collected and output signals accurately reflect the actual on-site situation, providing a reliable data foundation for the control system. It meets industrial applications with strict requirements for control accuracy, such as precise proportion control in chemical production and precise parameter monitoring in power systems.

• Response Speed: It has an extremely fast response to signals. The response time of digital input/output is usually in the millisecond level, and the update rate of analog signal processing can also meet industrial scenarios with high real-time requirements. It can quickly capture changes in on-site signals and feed them back to the control system in a timely manner, ensuring that control commands are issued promptly and guaranteeing efficient operation of the production process.

• Communication Interfaces: Equipped with dedicated interfaces for internal communication with the ABB Bailey control system, such as high-speed fieldbus interfaces. The communication rate is fast and stable, enabling efficient data transmission with other modules (such as processor modules and communication modules), ensuring data synchronization and collaborative work of the entire control system. Meanwhile, some models may support Ethernet interfaces, facilitating data interaction with upper computers or third-party systems and enhancing the openness and integration capability of the system.

• Power Requirements: The working power supply is 24V DC, with good power adaptability, allowing a certain range of voltage fluctuations (such as 20V DC - 28V DC), and can operate stably in complex power supply environments of industrial sites. The module integrates a complete power management circuit with overvoltage and overcurrent protection functions, effectively preventing damage to the module due to abnormal power supply and improving system reliability.

• Environmental Adaptability: It can adapt to harsh industrial environments. The operating temperature range is generally -20℃ - 70℃, allowing normal operation in high-temperature steel smelting workshops, low-temperature cold storage, etc.; the relative humidity range is 5% - 95% RH (non-condensing), capable of coping with humid places such as paper mills and water treatment plants. Additionally, it has strong anti-electromagnetic interference capability, maintaining stable performance in complex electromagnetic environments and ensuring undisturbed signal transmission.

• Physical Specifications: Adopting a compact modular design with a small size, it is easy to install in standard control cabinets or ABB Bailey series racks, effectively saving space. When installed with other modules, the layout is compact and reasonable, facilitating system integration and maintenance. Its mechanical structure is sturdy and durable, able to withstand a certain degree of vibration and impact, adapting to installation and use conditions in industrial sites.

Functional Features

•


• Flexible Configuration Function: Users can flexibly set the input/output channels of the IPSYS01 module through programming software or configuration tools of the control system, including signal type definition, range adjustment, filtering parameter setting, etc., to meet the diverse needs of different on-site equipment and control processes. For example, in an industrial scenario with both temperature sensors (outputting 4-20mA signals) and pressure sensors (outputting 0-5V signals), the analog input channels can be easily configured to adapt to these two different types of sensor signals.

• Diagnosis and Fault Alarm: Built-in comprehensive self-diagnosis function, which can real-time monitor the working status of the module itself, including power supply status, communication status, input/output channel status, etc. Once an abnormality is detected, such as channel failure, communication interruption, power undervoltage, etc., it will immediately notify the control system and maintenance personnel through indicator flashing, sending alarm information via communication interfaces, and record detailed fault codes, facilitating quick location and troubleshooting, reducing system downtime, and improving production continuity.

• Redundancy Function (Some Models): To further improve system reliability, some IPSYS01 modules support redundant configuration and can form a redundant pair with another identical module. During normal operation, the two modules work simultaneously and monitor each other's status; when the main module fails, the standby module can seamlessly switch over in a very short time to take over the work of the main module, ensuring uninterrupted transmission of input/output signals, guaranteeing stable operation of the control system, and is suitable for industrial production scenarios with extremely high reliability requirements, such as key production links in chemical, power and other industries.

• Protection and Isolation: The module adopts multiple protection and isolation measures in hardware design. The input/output channels and internal circuits are electrically isolated through isolation components such as optocouplers and transformers, effectively preventing external interference signals from entering the control system and avoiding damage to the module due to on-site equipment failures. In addition, it has hardware protection functions such as overvoltage, overcurrent, and short circuit, enhancing the anti-interference capability and reliability of the module in complex industrial environments.

•


• Automation Control in the Power Industry: In substation automation systems, the IPSYS01 module is used to collect position signals (digital inputs) of various switchgear (such as circuit breakers and disconnectors), as well as analog signals output by voltage and current transformers, and transmit these signals to the substation monitoring system to realize real-time monitoring and control of substation equipment operation status. In power plants, it can be used to collect various process parameters (such as analog signals of temperature, pressure, flow, etc.) of equipment such as boilers, steam turbines, and generators, as well as equipment start-stop status and fault alarm signals (digital signals), providing accurate data for the plant's distributed control system (DCS) and ensuring safe and stable operation of the power generation process.

• Chemical Production Process Monitoring: In chemical production plants, the IPSYS01 module connects various on-site sensors (such as temperature sensors, pressure sensors, flow sensors) and actuators (such as control valves, pump start-stop control). By collecting analog signals output by sensors, it real-time monitors process parameters of equipment such as reactors, distillation towers, and pipelines. According to production process requirements, the control system outputs analog or digital signals through the module to precisely adjust the opening of control valves, start-stop of pumps, etc., realizing automatic control of the chemical production process, ensuring stable product quality, and improving production efficiency.

• Metallurgical Industry Equipment Control: In the steel rolling production line of iron and steel plants, the module collects analog signals such as rolling mill speed, rolling force, roll gap, as well as digital signals such as motor start-stop status and fault alarms, and transmits them to the automation control system of the production line. The control system precisely controls the rolling mill based on these signals, adjusts parameters such as rolling speed and rolling force to ensure the dimensional accuracy and quality of steel plates. At the same time, it controls the start-stop of motors and sequential actions of equipment through the module, realizing automatic operation of the entire steel rolling production line, improving production efficiency and product quality.
