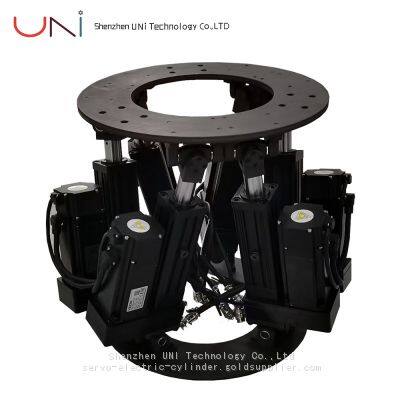

6DOF Stewart Motion Platform Small Size for Training Simulator
- 100 Piece / Pieces per Month
- SHENZHEN
- T/T Western Union
- 10 days
You May Like
-
Custom 6DOF Motion Platform
-
6DOF Full Motion Platform System Hexapod Platform with Universal Joint on both ends for Entertaining Simulator
-
DIY 3DOF Motion Platform AASD15A Drive Controllable for Home Use
-
3DOF Motion Platform for Simulator 9D VR cinema
-
3DOF Motion Platform for Simulator 9D VR cinema
-
DIY 3DOF Motion Platform AASD15A Drive Controllable for Home Use
Product Details
| Brand Name | UNI | Place of Origin | China | |
| Model Number | UNI-6DOF |
Product Description
6DOF Stewart Motion Platform(6 axis) are equipped with controller. The custom control board can work with many games in Simtool. Among which, X-Plane, Dirt, iFactor are the most popular.
500mm/s high speed servo actuator with Universal joints mounted on both ends. This setting above can reach 35 degrees of rotation in pitch,yaw,roll. 2G of acceleration is easy to make it. What’s more, the precision of the 6 axis motion platform are +/- 0.1 degree.
We has traing/education/entertainment simulator ready to ship as well. Please contact us for more details as well as shipping cost check.
Click our website for more details: /product/uni-servo-actuator-with-6dof-stewart-motion-platform-for-training-simulator/
Technical Date(6DOF Full Motion Platform System)
| Product | UNI-6DOF | UNI-6DOF |
| Pitch/Screw Lead(mm) | 5 | 10 |
| Payload(KG) | 500 | 250 |
| Max Stroke(mm) | 2000 | 2000 |
| Max Speed(mm/s) | 333 | 500 |
| Roll/Pitch/Yaw(Cont.) | ±35° | ±35° |
| Acceleration | 2g | 2g |
| Precision | ±0.1° | ±0.1° |
| Servo motor rated power (W) | 400W | with AASD-15A drive; with encoder and cable |
| Servo motor voltage | 220V AC | Single Phase |
FAQ
Q1. Does 6DOF Stewart Motion Platform comes along with control system?
A1: Yes. Our controller can integrate any actuators type for every control software. It covers 100% customer needs worldwide.
Q2. What game engine can your controller compatible with?
A2: Many of them like Unreal, Simtools,Unity,etc.
Q3. What is your price about ready to ship simulator ?
A9: Well, that’s depends on your detail requirements. The price differs a lot based on the payload, stroke and speed. Please contact us for more details if you are interested in it.
