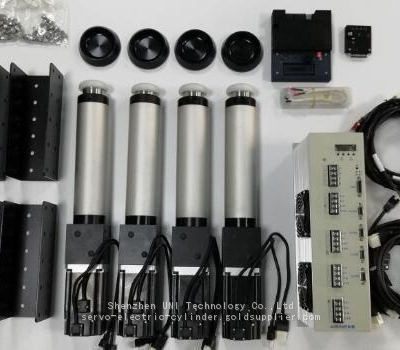

UNI 4DOF Simulator Actuator Kit with AASD-15A controller

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port SHENZHEN
Payment TermsT/T Western Union
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UNI		Place of Origin	China
Model Number	UNI-4DOF

Product Description

Description

4DOF Simulator Actuator with AASD-15A controller is made by Thanos. Our 4DOF servo actuators are with custom floor contacts. It fixes the actuators to the ground. Also, the bracket will be attached to the simulator frame together.

UNI Simulator rig are intend for 9d VR racing simulator. It is quick in response and fast in velocity. What’s more, the whole rig offers bigger payload. The high frequency and acceleration allows you an immersive VR experience. We can provide you a controller from drive to your PC. What you need to do is to operate the game.

4DOF motion system with roll, pitch, yaw, and sway which allows you to feel the limit of adhesion, understeer/oversteer, terrain changes such as hills, banking, curbing, bumps, camber, and both left/right and fore/aft weight transfer in a motion simulator like you have never felt in a sim.

Click our website for more details: /product/uni-4dof-simulator-actuator-with-aasd-15a-controller/

Technical Date

Product	UNI-4DOF	UNI-4DOF
Pitch/Screw Lead(mm)	5	10
Payload(KG)	500	250
Max Stroke(mm)	2000	2000
Max Speed(mm/s)	333	500
Roll/Pitch/Yaw(Cont.)	±30°	±30°
Acceleration	2g	2g
Precision	±0.1°	±0.1°

Q1. How much payload do I need for 4DOF simulator rig?
A1: We have to consider a person, frame and cockpit weight. Heavy weight comes along with high moment of inertia. As a result, safety magin is needed. It is recommend to choose platform that can handle twice the real payload.

Q2. Does 100kg are enough for 4 DOF actuators?
A2: Well, if the platform tilt to one side, then the payload will exert to one actuator. As a result, 100kg load of single actuator are far from enough.

Q3. Can you provide a plug and play solution?
A3: Yes, we can provide you simulator kit with controller integrated. Our 4DOF Car Simulator Actuator-AMC AASD15A controller by Thanos, which can connect to Simhub-motion,Sim Racing Studio,FlyPT Mover,Simtools.

Different softwares, protocols, connections, expertise will also be applied. We have engineer team to instruct installation. Furthermore, on-site debugging is available.

Q4. What is the lead time of your UNI 4DOF Simulator Actuator？
A4: Normally, 7 days are fine for the completion.
