Home > Products > 300-1000KG Servo Electric Cylinder > Self Synchronized Lifting Actuator For Lifting Table

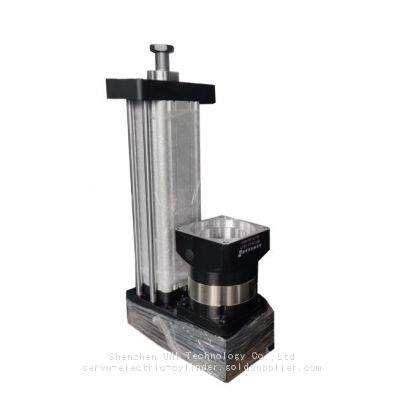

Self Synchronized Lifting Actuator For Lifting Table
- SHENZHEN
- T/T L/C PayPal D/P Western Union Other
- 5 days
You May Like
-
High Force Electric Servo Cylinder with Position Feedbacks Encoder and Limit Switch Sensors
-
High Speed Lifting Electric Cylinder with wireless remote control ready to ship
-
5KN High Precision Servo Cylinder with Sensors PLC controllable
-
50KN High Force Heavy Duty Electric Cylinder for Servo Press Machine
-
50KN High Force Heavy Duty Electric Cylinder for Servo Press Machine
-
30KN Electric Piston Rod Cylinder PLC Controllable-Replacement of Hydraulic and Pneumatic Cylinders in Automation
Product Details
Brand Name | UNI | Place of Origin | China | |
Model Number | UNI-A40 |
Product Description
Description
Self Synchronized Linear Actuator are essential for various industries. However, what makes Actuator synchronization indispensable in lifting?
These actuators work in paris to simplify the heavy load of automation. What’s more, multi-actuators can be controlled for level support of the uneven loads.
Placed in sides or corners, they are vital for keeping balance of the loads. Furthermore, these paris will move synchronously. Also, they work at the same speed to remain precise control and equal load distribution. Moreover, actuators can stop accurately at any point within the stroke. Besides, UNI Self Synchronized Lifting Actuator are easy to install. They are aiming to make a syschroning motion. Furthermore, we can actuate them simply by remote control.
Technical Date
Product | UNI-A40 | UNI-A40 |
Pitch/Screw Lead(mm) | 10 | 20 |
Max Force(N) | 10,000 | 8000 |
Max Stroke(mm) | 2000 | 2000 |
Max Speed(mm/s) | 83 | 166 |
Repeatability Accuracy(mm) | 0.02 | 0.02 |
Ball Screw Diameter(mm) | 25 | 25 |
Axial Backlash(mm) | 0.02-0.04 | 0.02-0.04 |
Click our website for more details: /product/uni-customized-self-synchronized-linear-actuator-table/
FAQ
Q1. How to control UNI Self Synchronized Linear Actuator ?
A1: You are able to simply use a remote control. Synchronous control will output variable voltage to each actuator. Meanwhile, it will give feedback in the form of hall sensors or potentiometers. You can take this advantage and dominate actuator pairs.
Q2. Can UNI synchronize actuators work in paris?
A2: Sure. They work at the same speed and position. What’s more, actuators share a high precision movment.
Q3. Can arduino control UNI synchronized actuators ?
A3: Yes. Not only Arduino can but also Simtool,Real engine,Unity,etc.
