DMX512 Control System Actuator for Advertisment Billboard

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port SHENZHEN
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UNI		Place of Origin	China
Model Number	UNI-A32

Product Description

Description

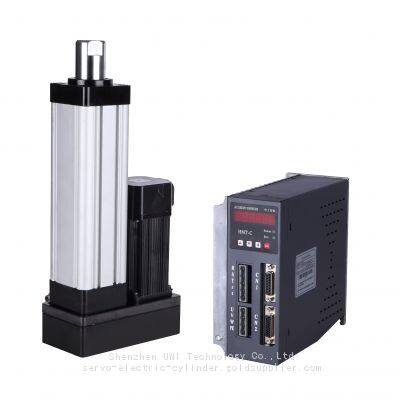

DMX512 Control UNI Actuator for the movement of each LED screens separately. Our drive are compatible with DMX512 protocol for the application of 3D robotic advertisment billboard. Meanwhile, the DMX512 control console controls the speed, scale, adjust the screen position directly. It will make an effect of LED screen waves. More cool funtion of DMX512 Control UNI Actuator are waiting for you to explore.

Technical Date of DMX512 Control Linear Actuator

Product	UNI-B40-1005	UNI-B40-1005
Pitch/Screw Lead(mm)	5	10
Max Force(N)	5000	2500
Max Stroke(mm)	2000	2000
Max Speed(mm/s)	250	500
Repeatability Accuracy(mm)	0.02	0.02
Ball Screw Diameter(mm)	16	16
Axial Backlash(mm)	0.02-0.04	0.02-0.04

Note:

The rated load and speed of actuator will be calculated, based on the gear reduction ratio and motor specification. Gearbox will be needed when high force, low speed requested. Japan-shimpo, Taiwan Liming and other high precision brands of gearbox are available.
All UNI Simulator Servo Actuators will be equiped with motor,drive,encoder and cables. Panasonic, Yaskawa, Mitsubishi,Siemens,Schneider and other brands of motor are affordable now.
If you prefer use your own motor or gearbox, please send us the drawings and specification. UNI engineer team will design and custom the servo actuator for you.

Click our website for more details: /product/dmx512-control-linear-actuator-for-3d-robotics-billboard/

FAQ

Q1. Does DMX512 Control Linear Actuator come with controller?
A1: Yes. We can provide you controller if you needed.

Q2. Are there instruction files for DMX512 Control UNI Actuator?
A2: Sure. We will offer instruction manual of the control system. Also, our engineer team can provide you online support through skype.

Q3. How much of DMX512 Control system?
A3: As for the price, that’s depends on your requirements about load,speed and stroke. You can send us inquiry for more dedtails.
