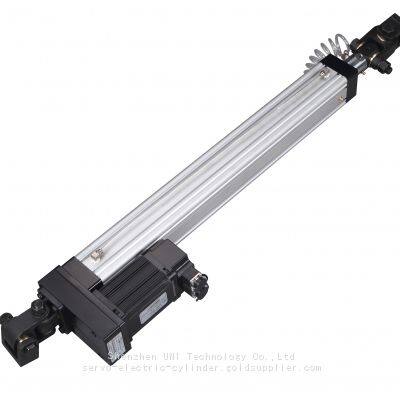

High Force Electric Servo Cylinder with Position Feedbacks Encoder and Limit Switch Sensors
- SHENZHEN
- T/T L/C PayPal D/P Western Union Other
- 5 days
You May Like
-
Self Synchronized Lifting Actuator For Lifting Table
-
High Force Electric Servo Cylinder with Position Feedbacks Encoder and Limit Switch Sensors
-
High Speed Lifting Electric Cylinder with wireless remote control ready to ship
-
5KN High Precision Servo Cylinder with Sensors PLC controllable
-
50KN High Force Heavy Duty Electric Cylinder for Servo Press Machine
-
50KN High Force Heavy Duty Electric Cylinder for Servo Press Machine
Product Details
| Brand Name | UNI | Place of Origin | China | |
| Model Number | UNI-A40 |
Product Description
Description
Servo Press Electric Cylinder are manufactured by UNI Technology. It offers large load capacity in many model options. These are best for applications you want high force but low speed is not an issue. It’s of high precision but high efficicy. Meanwhile, absolute and incremental encoder are choosable. It feedbacks the position to your software. As a result, you can control the position precisely. RS232/485 protocol is for speed control. Pulse/CanOpen or other control ways are also available. Omron NPN/PNP sensors will be provided to limit stroke. The sensors will be lightened when it reach its limit stroke.
Technical Date
| Product | UNI-A40 | UNI-A40 |
| Pitch/Screw Lead(mm) | 10 | 20 |
| Max Force(N) | 10,000 | 8000 |
| Max Stroke(mm) | 2000 | 2000 |
| Max Speed(mm/s) | 83 | 166 |
| Repeatability Accuracy(mm) | 0.02 | 0.02 |
| Ball Screw Diameter(mm) | 25 | 25 |
| Axial Backlash(mm) | 0.02-0.04 | 0.02-0.04 |
Click our website for more details: /product/servo-press-electric-cylinder/
FAQ
Q1. Can UNI High Force Servo Press Electric Cylinder feedbacks the position?
A1: Of course. Our drive comes along with incremental or absolute encoder. It assists feedback the position from drive to your control software.
Q2. Can I control the speed of UNI Servo Press Cylinder ?
A2: Yes, sure. The speed are adjustable within the stroke. You can use RS232/RS485 protocol to control the speed.
Q3. What is the mounting way available?
A3: Our standard mounting are front flange+rod thread. Also, we have side mounting, joints, clevis,etc.
