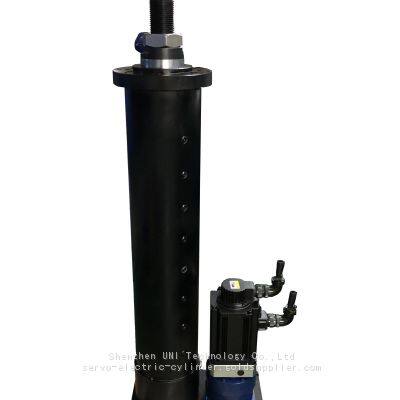

50KN High Force Heavy Duty Electric Cylinder for Servo Press Machine

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port SHENZHEN
Payment TermsT/T L/C PayPal D/P Western Union Other
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	UNI		Place of Origin	China
Model Number	UNI-T13

Product Description

Description

HOW TO CONTROL A ELECTRIC ACTUATOR?

Electric linear actuators are famous for their precision and flexibility, making them a common sight in automated systems. Besides, control over these actuators is achieved through electrical signals that can be finely tuned to meet specific operational needs. Here are some control methods below:

Switches and Relays: Ideal for simple on/off control, allowing for straightforward operation without the need for complex programming.
Programmable Logic Controllers (PLCs): Offer sophisticated control capabilities, enabling integration with broader system operations for automated processes.
Digital Interfaces: These facilitate precise adjustments and real-time monitoring of position, speed, and force, catering to applications requiring high levels of accuracy and adaptability.

The choice of control method directly impacts the actuator’s performance, influencing its ability to execute tasks with the desired precision and efficiency. What’s more, electric linear actuators, with their range of control options, provide a versatile solution for enhancing the operational capabilities of your machinery.

Heavy Duty Electric Cylinder ranges from 1ton to 20ton manufactured by Shenzhen UNI Technology Co.,Ltd. Our heavy duty high precision servo cylinder ideal for applications requiring high force performance in tough environments. What’s more, we can make IP65 protection and stainless steel 304/316 material. UNI Servo Press Cylinder series are more robust in mechanical design and materials used. We use triple safety factor bearings,ball screw,gear and timing pulley and other machinal components.We can assure the safety of usage.

Technical Date

Product	UNI-T13
Pitch/Screw Lead(mm)	10	20
Max Force(N)	50000	25000
Max Stroke(mm)	1000
Max Speed(mm/s)	250 (1 Ton)	40 (5 Tons)
Repeatability Accuracy(mm)	0.02
Ball Screw Diameter(mm)	32/40
Axial Backlash(mm)	0.02-0.04

Note:

The rated load and speed of actuator will be calculated, based on the gear reduction and motor technical data. Gearbox will be needed for higher force and lower speed. Japan-shimpo, Taiwan Liming and other high precision brands of gearbox are available.
All UNI heavy duty electric cylinders will be equipped with motor,drive,encoder and cables. Panasonic, Yaskawa, Mitsubishi,Siemens,Schneider and others brands of motor can be choosen. Please Contact us for more infomation.
If you prefer use your own motor or gearbox, please send us the drawings. UNI engineer team will design and custom the servo actuator for you.

Click our website for more details: /product/50kn-heavy-duty-precision-servo-press-electric-servo-cylinder/

FAQ

Q1. Can you custom 20ton load of UNI electric cylinder for the application of Servo Press?
A1: Yes,sure. We had manufactured 20 tons load servo cylinder before for the application of servo press. This heavy duty series cylinder can be used in tough environment.

Q2. What is the ball screw life of UNI 5tons electric servo cylinder?
A2: The life time of our servo linear actuators ball screw are 100,000km.

Q3. Do you have ready to ship UNI 50KN electric cylinder?
A2: No, we don’t. For such high force electric cylinder,we need 15-20days manufacture. Our standard electric linear actuator are in stock ready to ship.
