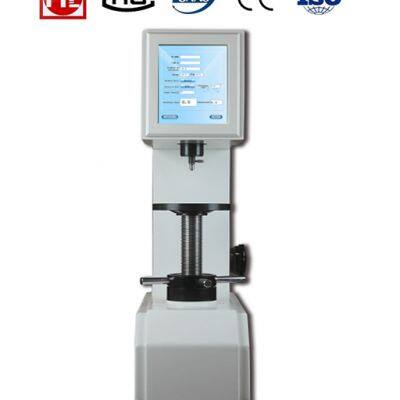

Model HRS-150DT Touch Screen Digital Rockwell Hardness Tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Features:

Electric loading with weight, high precision sensor;

Touch screen interface, easy operation;

Automatic correction of high, medium and low hardness values;

Built-in hardness value correction of convex cylindrical surface;

Strong data processing function, conversion of hardness value HR, HB, HV and so on, set the qualified range, overrun alarm; The sample names and other information can be input;

Test results can be stored, processed and printed automatically;

Application Fields:

Industrial production, Inspection of product quality on processing technology; Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Technical Specifications:

model	HRS-150DT
Initial test force	10kgf(98.07N)
Total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
scales	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、 HRK、 HRL、HRM、HRR、HRP、HRS、HRV
Hardness testing range	HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100 , HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Dwell time	0-99s
Hardness resolution	0.1HR
Load value error	＜0.5%
data output	LCD
Touch-screen size	8inch
data storage	Store 60 test results, built-in printer RS-232 interface, optional U disk automatic storage
Exchanging scales	Rockwell, Brinell, Vickers
Executive standard	BSEN 6508， ISO 6508， ASTM E18， GB/T230
max height of sample	220mm
Distance of indenter to outer wall	200mm
dimension	560×200×800mm
weight	70kG
power	AC220+5%,50～60Hz
