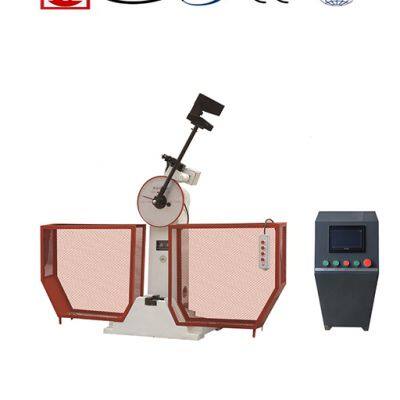

Model JBS Series Digital Display Pendulum Impact Tester
- 100 Set / Sets per Month
You May Like
-
Model JBW Series Computer Screen Display Pendulum Impact Tester
-
Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBW-N Computer Screen Display Charpy and Izod Pendulum Impact Tester
-
Model WDC Series Low temperature Chamber for Impact Specimen
-
Model WDC-196T Low temperature Chamber for Impact Specimen
-
ZT-VU1 Manual special Cutting Machine for Notch of Impact Specimen
Product Description
Application:
This product was strictly designed according to national standard GB/T3038 “Inspection for pendulum Impact Testing Machine” and GB/229 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148, EN100045 and ASTM E23. It is mainly used to determine the anti-impact capability of metal materials under dynamic load. It is the ideal testing equipment for many metal material manufactories, quality inspection departments and universities. The result will display on both digital display and dial gauge, with PLC control, its reliability is very good, JBS Series can use pendulum’s residual impact energy to achieve the raising again of pendulum, so it’s applicable for batch testing tasks.
Specifications:
Specifications | JBS-300 | JBS-500 | JBS-750C | |
Impact energy (J) | 150, 300 | 250, 500 | 300, 450, 600, 750 | |
Impact velocity (m/s) | 5.2 | 5.4 | 5.24 | |
Raised angle (o) | 150 | |||
Standard span (mm) | 40 | |||
Round angle of jaws (mm) | R1-1.5 | |||
Round angle of striking edge (mm) | R2-2.5 | |||
Size of specimen (mm) | 10 x 10 x 55 | |||
Power supply | 3phs, 380V, 50Hz, | |||
Dimensions (mm) | 2124 x 600 x 1340 | 2144 x 736 x 1390 | 2450 x 1200 x 2455 | |
Net Weight (kG) | 450 | 650 | 1800 | |
Display | LCD Touch screen | |||
