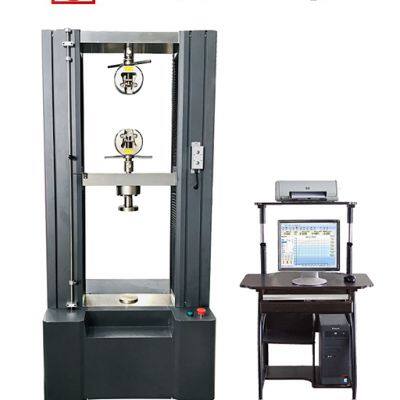

Model WDW Series Computer Control Electromechanical Universal Testing Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Applications

Computer Control Electromechanical Testing Machines are designed and manufactured according to ASTM, ISO, DIN, GB etc standards. It is suitable for wide range of material for tension, compression, bending, shearing and low cycle test. With special grips, it can also do very special test as customer’s request. It is for metal, rubber, plastic, spring, textile, and components testing. This machine is servo control mode and the computer with strong function software does data processing and issues the test reports. The software based on Windows system can make automatic calculating of test results, i.e. tensile strength; upper / lower yield strength, Non proportional stress point etc. Report creation function makes it is very simple to make testing report in needed format. It is necessary inspect device in the filed of steel and iron factory, the laboratories of scientific research institutes, infrastructure construction organs, machinery plants and education for research and teaching, etc.

WDW Series (10-300KN) Main Specifications:

Model	WDW-300	WDW-200	WDW-100	WDW-50	WDW-20	WDW-10
Max. Load	300KN	200KN	100KN	50KN	20KN	10KN
Load accuracy	≤±1%
Load range	2%-100% of full scale
Test speed	0.01-250mm/min		0.01-500mm/min	0.01-500mm/min
Speed accuracy	≤±1%
Displacement resolution	0.01mm
Effective test width	570mm		500mm	440mm
Effective tensile space	600mm			600mm
Effective compression space	700mm			700mm
Dimension	1130×650×2550mm		840×565×1750mm	830×565×1660mm
Power supply	380V, 3ph, 4/3KW		220V, 1ph, 1.5KW	220V, 1ph, 1KW
Weight	1800KG		720KG	460KG
Grips	Wedge type, plate type and other grips as consumer’s demand
Load frame type	Double column
