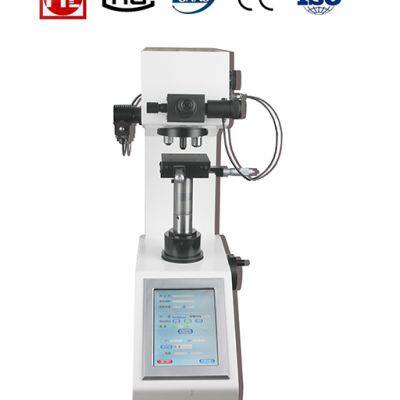

HVS-1000DT Digital Display Touch Screen Micro Vickers Hardness Tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Applications：

Model HVS-1000DT Digital display touch screen Micro Vickers hardness tester adopts large 8’ LCD touch screen display with menu type operation interface, on which hardness scale HV or HK (Option) can be chosen, showing tested hardness value, automatic calculation and display; The different hardness scale and value can be converted; The brightness of light source can be adjusted without grades; Can equip with inner camera to make the image more clearly

The tester can be calibrated by the standard hardness block or length scale to make the hardness value to meet request more precisely.

The eyepiece structure with digital encoder; Touch screen can show hardness value directly and D1, D2 values.

Test results can be stored automatically; automatic data processing and printing.

Equip with RS232 interface, which can connect with computer.

When the pressure head and the objective to switch to each other, the test point to be automatic positioning precision;

Technical Specifications

Model	HVS-1000DT
Test force	10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1Kgf (9.8N)
Standard Conformed to	GB/T4340，ASTM E92
Min measuring unit	0.01μm
Data output	8’LCD screen display,60 kinds of test results storage, Inside Printer, RS-232
Conversion Scale	Rockwell、 Brinell
Hardness measuring range	8~2900HV
method of testing force applied	Automatic (loading, Dwelling , unloading)
Test microscope magnification	400X(Measuring)，100X（observation）
Dwell time	0-99s
Maximum specimen height	100mm
Distance from the center to the outer wall of the indenter	130mm
X-Y test sets	Dimension：100100mm Maximum Movement：2525mm
Dimensions	540260650mm
Net Weight	Approx. 50Kg
Power supply	AC220V+5%，50-60Hz
