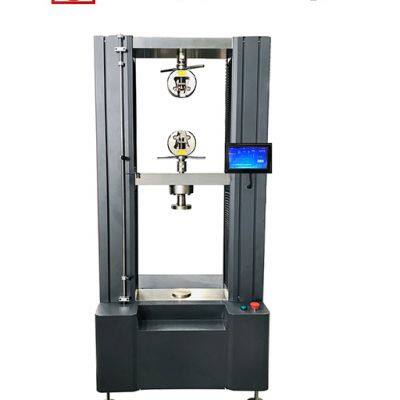

Model LDW Series Digital Display Touch Screen Electromechanical Universal Testing Machine
- 100 Set / Sets per Month
You May Like
-
Model WDD Series Computer Control Electromechanical Universal Testing Machine
-
Model WDW-S Series Computer Control Electromechanical Universal Testing Machine
-
Model WDW Series Computer Control Electromechanical Universal Testing Machine
-
Model WDW-D Series Computer Control Electromechanical Universal Testing Machine
-
Model WDW-E Series Computer Control Electromechanical Universal Testing Machine
-
Model WE-C Series Analog Hydraulic Universal Testing Machine
Product Description
Application:
This kind of machine is widely used in metallurgy, machinery, building engineering and materials, automobile, and shipping industry, college, university, and quality assessment department, which can test the mechanical performance of metal, plastic, rubber, spring, all kinds of rope materials and other materials. It can meet global standards, such as ASTM, DIN, BS, JIS, GB, etc. It uses touch screen LCD controller to control machine.
LDW Series Main Specifications:
Model | LDW-300 | LDW-200 | LDW-100 | LDW-50 | LDW-20 | LDW-10 |
Max. Load | 300KN | 200KN | 100KN | 50KN | 20KN | 10KN |
Load accuracy | ≤±1% | |||||
Load range | 2%-100% of full scale | |||||
Test speed | 0.1-250mm/min | 0.1-500mm/min | 0.1-500mm/min | |||
Speed accuracy | ≤±1% | |||||
Disp. resolution | 0.01mm | |||||
570mm | 500mm | 440mm | ||||
Effective tensile space | 600mm | 600mm | ||||
Effective comp. space | 700mm | 700mm | ||||
Dimension | 1130×650×2550mm | 840×565×1750mm | 830×565×1660mm | |||
Power supply | 380V, 3ph, 4/3KW | 220V, 1ph, 1.5KW | 220V, 1ph, 1KW | |||
Weight | 1800KG | 720KG | 460KG | |||
Grips | Wedge type, plate type and other grips as consumer’s demand | |||||
Load frame type | Double column | |||||
