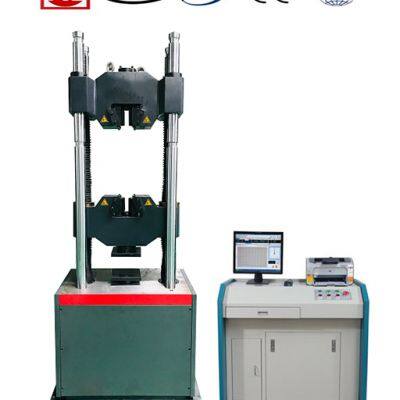

Model WAW-E Series Computer Control Servo Hydraulic Universal Testing Machine

Machine Features:

1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;

Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.

2. Displacement measurement: adopts optical encoder with high accuracy and stability;

3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.

4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;

5. Clamp automatically: uses hydraulic grips with reliable holding;

6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;

7. Test report can be acquired according to requirements of customers;

8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;

9. Stable performance with little influence of temperature and voltage;

10. Multiple Servo control mode：Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc

Main specifications:
