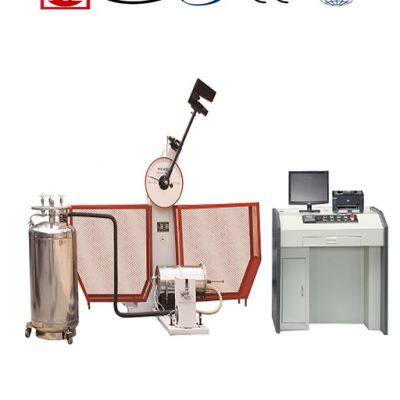

Model JBW Series Computer Screen Display Pendulum Impact Tester
You May Like
-
Model JBDW Series Computer Screen Display Pendulum Impact Testing Machine with super low temperature chamber
-
Model JBW-N Computer Screen Display Charpy and Izod Pendulum Impact Tester
-
Model WDC Series Low temperature Chamber for Impact Specimen
-
Model WDC-196T Low temperature Chamber for Impact Specimen
-
ZT-VU1 Manual special Cutting Machine for Notch of Impact Specimen
-
ZT-VU2 Electric special Cutting Machine for Notch of Impact Specimen
Product Description
Application & Features:
JBW Series Computer control Pendulum Impact Testing Machine were strictly designed according to national standard GB/T3038-2002 “ Inspection for pendulum Impact Testing Machine” and GB/T229-1994 “Charpy notch Impact Test Method for metal material”. It is also accordance with international standard ISO148-1983，ASTM E23 and EN10045. It is mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of clear zero and return automatically, capture the value of lost impact energy and pendulum cycle by means of setting up with computer program, and the result can be displayed, stored and printed out. Hand box and computer program controlled alternative operating method.
Specifications:
Specifications | JBW-300 | JBW-500 | JBW-750C |
Impact energy (J) | 150, 300 | 250, 500 | 300, 450, 600, 750 |
Impact velocity (m/s) | 5.2 | 5.4 | 5.24 |
Raised angle | 150o | ||
Standard span (mm) | 40 | ||
Round angle of jaws (mm) | R1-1.5 | ||
Round angle of striking edge (mm) | R2-2.5 | ||
Size of specimen (mm) | 10 x 10 x 55 | ||
Power supply | 3phs, 380V, 50Hz or 220V, 60Hz | ||
Dimensions (mm) | 2124 x 600 x 1340 | 2144 x 736 x 1390 | 2450 x 1200 x 2455 |
Net Weight (kg) | 450 | 650 | 2300 |
Display | Computer screen | ||
