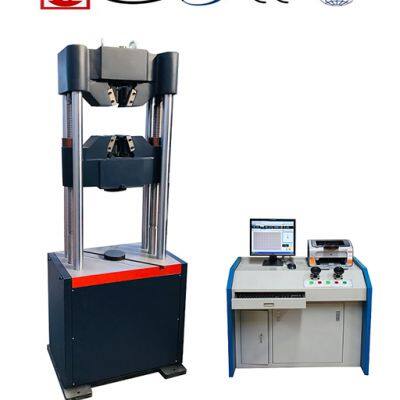

Model WEW-D Series Computer Screen Display Hydraulic Universal Testing Machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Applications:

WEW-D Series Testing machine are guaranteed to meet ISO15579-2000, ISO679, ISO7438-1985, ISO6892, EN100021-1-2001, ASTM E8M, JIS Z2241-1998, ISO75000-1, ISO4012, ISO10065 and other international and national specifications, which are suitable for tension, compression, bending, shear, and other tests by adding different test fixture for metal and non-metal materials. It adopts hydraulic power pack to drive the piston in the oil cylinder to provide testing load. By using load cell and photoelectric encoder, the computer is timely showing the testing parameters like testing load, piston stroke, deformation of specimen and various kinds of testing curves etc. This machine is manual control mode and the computer with strong function software does data processing and issues the test reports.

Main specifications:

Model Specifications		WEW-100D	WEW-300D	WEW-600D	WEW-1000D	WEW-2000D
Max. Testing Load (kN)		100	300	600	1000	2000
Load resolution		1/200000
Load Accuracy		≤±1% from 2% to 100% of full scale
Displacement Accuracy		≤±0.5%
Displacement resolution		0.01mm
Strain accuracy		≤±0.5%
Strain resolution		0.001mm
Control Mode		Manual Control
Load frame Type		4-column and 2-screw structure
Max. tensile space (Including piston Travel) mm		600	600	700	700	850
Max. Compression space (mm)		550	550	600	600	750
Round specimen grip (mm)		Ф10-32	Ф13-32	Ф13-40	Ф20--60	Ф20--60
Flat Sample Clipping Thickness (mm)		0-15	0-15	0-30	0-40	0-40
Ram stroke (mm)		200	200	250	250	250
Max. Distance Between Two Fulcrums of Bending Test (mm)		400	400	480	550	700
Lifting Speed of Mobile Beams (mm/min)		>200
Distance Between Two Column (mm)		460	500	505	545	705
Dimensions of the Machine (mm)	Load Frame	750×530×1930	750×530×1930	840×600×2130	910×640×2250	1170×800×2750
	Hydraulic power pack	1200x600x750	1050×770×1280	1200x600x750	1200x600x750	1200x600x750
Approx. Weight (KG)		1200	1200	1700	2100	5000
