CE Certificated Aluminium Profile Digital Display Double Head Cutting Machine

FOB Price

US$ 10,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

PARKER

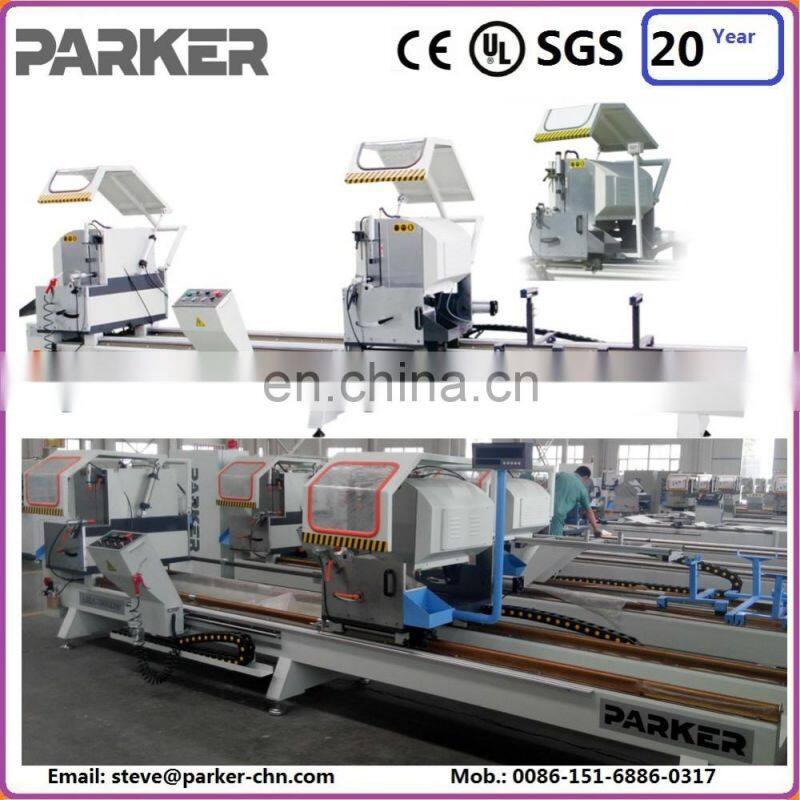

CE certificated Aluminium profile Digital Display Double head Cutting machine

Model: LJZ2S-500×4200

Feature:

LJZ2S-500X4200 is used for cutting of Aluminiumand wall profile. The imported special hard-metal saw features the high precision and efficiency for cutting Aluminium doors and windows. And the cutting precision has reached the advanced level in the world.
The hi-precision main shaft makes the saw stable and the surface smooth. The gas-liquid damping cylinder realizes smooth feeding and steady moving. The automatically opening and closing protecting cover makes the operation safe and easy.
The moving heads adopt imported linear bearing motion pair, and they features high precision. The moving feeder can efficiently locate the profile, and making the clamping easy and reliable. With the large saws and long structures, the saw has large cutting range.
If CNC system is put in, it can make the cutting much more precise (precision 0.01mm), and the operating more visualized.

Parameter:

Voltage:	380V 50HZ
Power:	4.4KW
Air pressure:	0.5-0.8MPa
Air consumption:	200L/min
Blade specification:	500304.4mm (standard size)
Cutter moving speed:	0-2m/min
Cutting length:	Max4200mm Min200mm
Cutting width:	Max.135mm
Cutting height:	Max.300mm
Cutting angle:	45° 90°
Repeat locating length error:	+/- 0.2mm
Angle error	+/- 4’
Surface plainness:	+/-0.1mm
Surface harshness:	Ra12.5µm
Overall dimension:	5500mmX1750mmX1990mm
