Best Manufacturer of Aluminum Window Door Machines
- QINGDAO SHANGHAI TIANJIN CHINA
- T/T Credit Card
You May Like
-
Aluminum Window Machines
-
Industrial Aluminum CNC Milling Drilling Machine
-
Aluminum Profile CNC Milling and Drilling Machine for Aluminum Window Doors/ 4 Axis Copy Router Machine Center
-
Aluminum CNC Machining Center for Milling Drilling Tapping
-
Aluminum Profiles CNC Double-Head Cutting Saw Double Mitre Saw Aluminum Cutting Cut Off Saw
-
Aluminum Profile 4 Axis CNC Milling Drilling Machine for Raiway
Product Details
| Brand Name | PARKER CHINA | Model Number | aluminum window door machine line |
Product Description
aluminum doors aliuminum cutting and milling machines ,end milling machine , window door machinery,double mitre saw for aluminum
/watch?v=Yk4Hkw7joTg

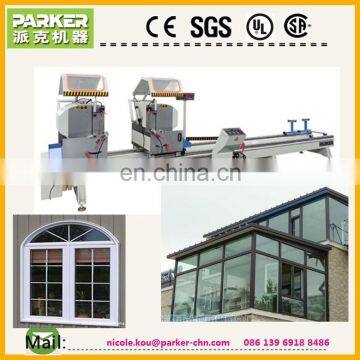

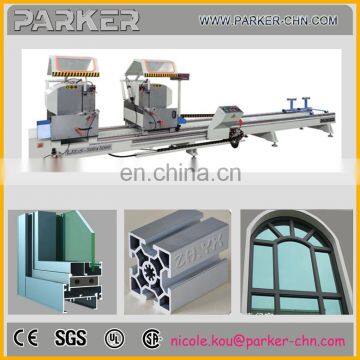

1) aluminum window machine :Aluminium Profile Double Head Cutting Machine :
aluminum window machine Technical Data:
| Voltage | 380V 50 Hz |
| Power | 6.8 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 (Standard Size) |
| Cutter Moving Speed | 0 to 2 m/min |
| Cutting Length of CNC Cutting Saw | Max. 5000mm Min. 480 at 90° Max. 5000mm Min. (Double Height of Profile) at 45° |
| Cutting Width | 120 mm |
| Cutting Height | 230 mm |
| Cutting Angle | 45° to 157.5° |
| Repeat Locating Length Error | ± 0.2 mm |
| Surface Plainness | ± 4´ |
| Overall Dimension | 6800 mm × 1500 mm × 2040 mm |
2) aluminum window machine Aluminium Window Door Mullion Cutting Machine:LDX-250
aluminum window machine Technical Data:
| Type | LDX-250 Automatic Aluminum Profile End Milling Machine |
| Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Motor Power | 6.6 kW |
| Rotary Speed | 2840 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling Cutter | 250 mm |
| Motor Adjusted Travel | 0 to 80 mm |
| Overall Dimension | 2300 mm × 1060 mm × 1670 mm |
| Weight of Aluminum Profile Milling Machine | 842 kg |

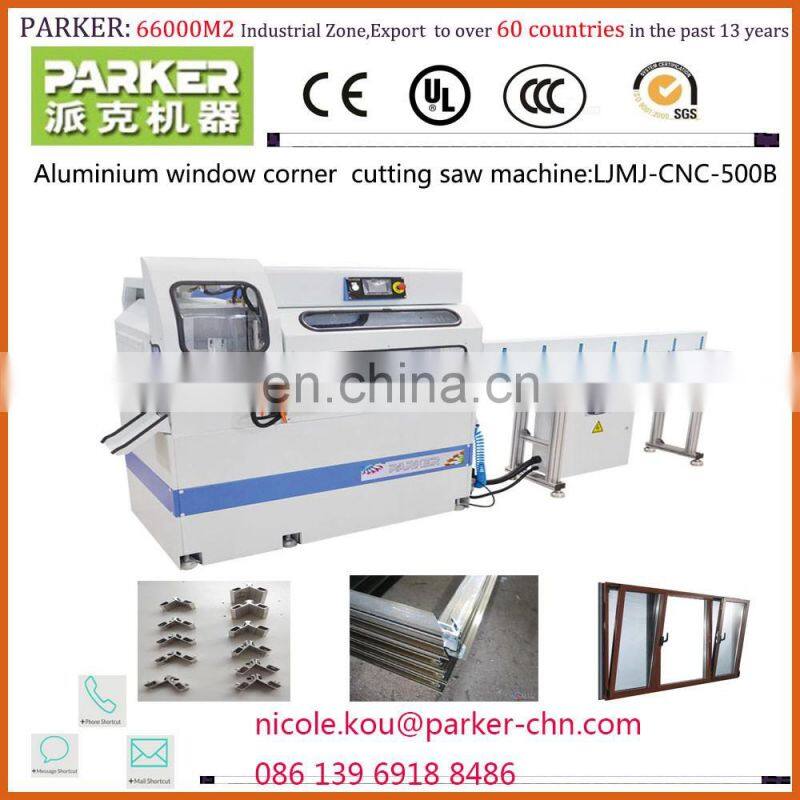

3) aluminum window machine Aluminium Window Door Corner Key Cutting Machine : Model LJMJ-500B:
aluminum window machine Technical Data:
| Model | LJMJ-CNC-500B CNC Connector Key Cutting Saw |
| Voltage | 380V 50 Hz |
| Power | 2.2 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 200 L/min |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 |
| Feeding Speed | 0 to 3 m/min |
| Rotary Speed | 2800 rpm |
| Cutting Length | Max. 600 mm Min. 3 mm |
| Cutting Width | 140 mm |
| Cutting Height | 140 mm |
| Surface Plainness | ± 0.1 mm |
| Surface Harshness | Ra12.5 µ m |
| Overall Dimension | 1700 × 1700 × 1400 (mm) |

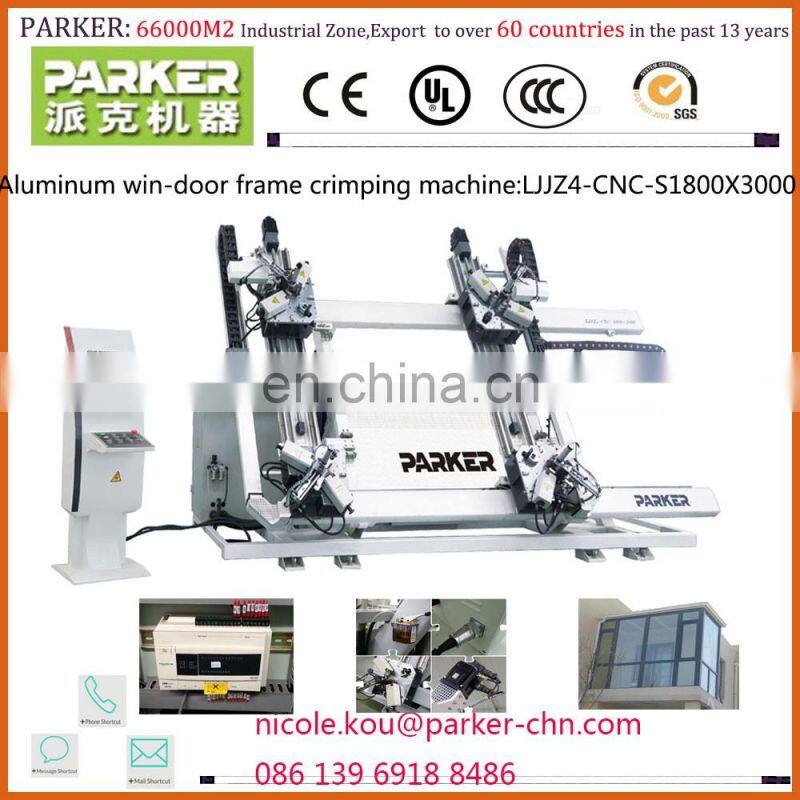

4) aluminum window machine Aluminium Window Door Corner Single Head Crimping Machine : Model LJJ-120 and LJJZ4-CNC-1800X3500:
aluminum window machine Technical Data
| Model | LJJZ4-CNC-1800×3000 |
| Type | CNC Four Head Corner Crimper |
| Power Supply | 380V 50 Hz |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Oil Tank Capacity | 60 L |
| Air Consumption | 0.45 L/min |
| Corner-Assemble | 0 to 50 mm |
| Max. Dimension | 1800 mm × 3000 mm |
| Min. Dimension of Window | 510 mm × 510 mm |
| Dimension of Profile | 100 mm |
| Overall Dimension | 5000 mm × 2000 mm × 2600 mm |
| Weight of CNC 4-Head Corner Crimping Machine | 3000 kg |

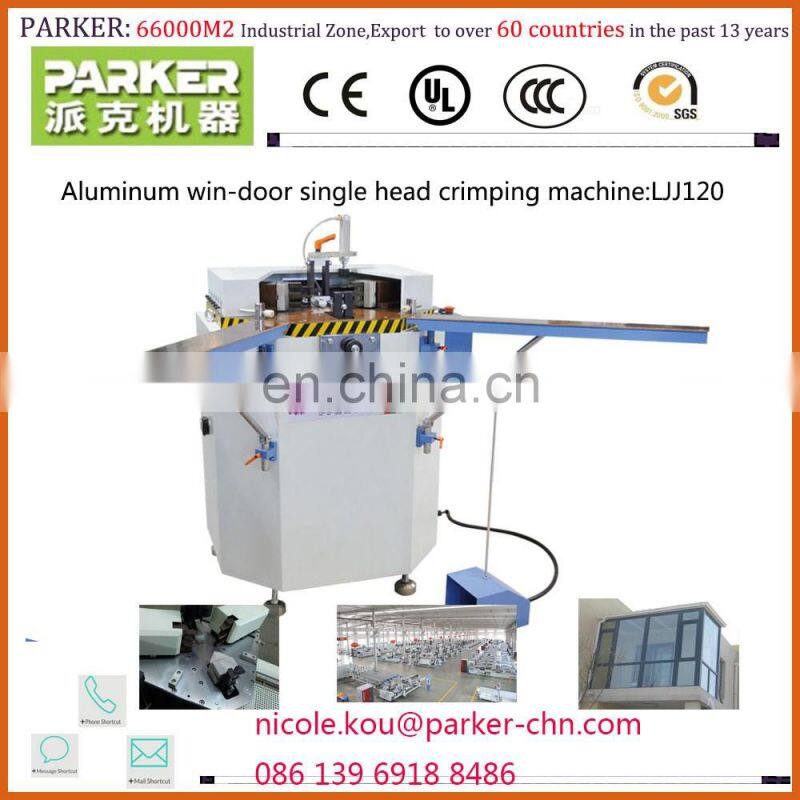

aluminum window machine Technical Data
| Model | LJJ-120 Hydraulic Corner Crimping Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Input Power | 1.5 kW |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 2 L/min |
| Oil Tank Capacity | 20 L |
| Width of Profile | 120 mm |
| Overall Dimension | 1000 mm × 1200 mm × 1200 mm |
| Weight of Single Head Crimping Machine | 360 kg |

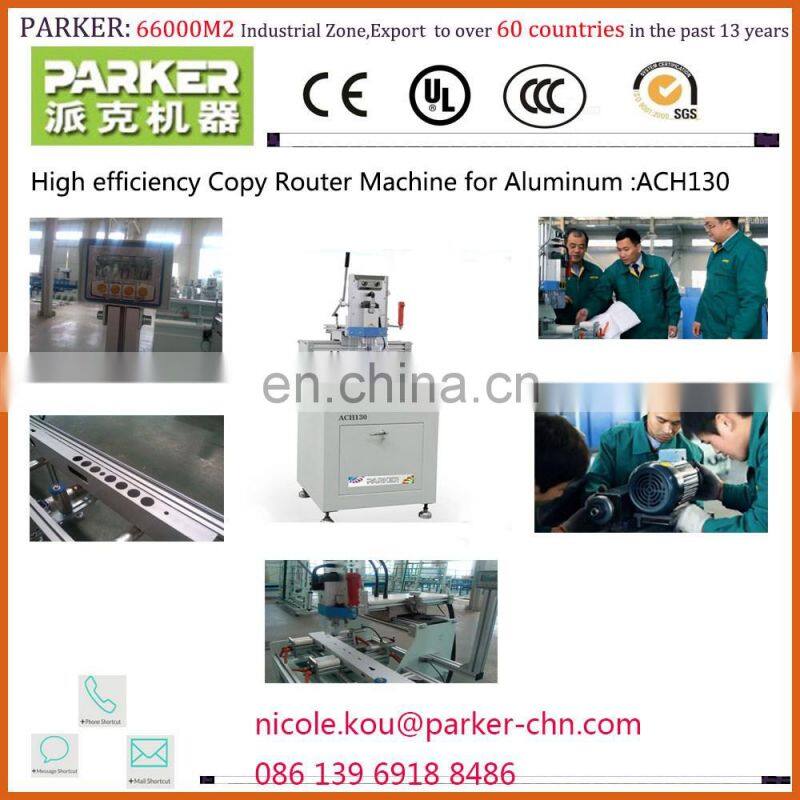

5) aluminum window machine Aluminium Window Door Single Axis Copy Router Machine : ACH130
aluminum window machine Technical Data:
| Model | ACH-130 High Speed Aluminum Curtain Wall Single Axis Copy Router |
| Voltage | 380V 50 Hz |
| Motor Power | 3.0 kW |
| Air Pressure | 0.5-0.8 MPa |
| Diameter of Milling Cutter | 8 mm |
| Air Consumption | 10 L/min |
| Processing Profile Section | 200 mm (W) × 150 mm (H) |
| Copying Dimension | 370 mm × 125 mm |
| Overall Dimension | 720 mm × 1070 mm × 1760 mm |
| Weight of High Speed Copy Router | 225 kg |
aluminum window door machine line Video Youtube Links:
1)aluminum profile double head cutting saw machine:Model: LJZ2-CNC-E500
2) Aluminum profile 3 Axis double head cutting saw machine: A8-500
/watch?v=wLvqhZwuGPU
3)Aluminum window door 4 heads crimping machine: LJJZ4-CNC-1800X3000
4)Aluminum window door single head crimping machine:LJJ-120
https://youtu.be/48H5nLnPpS0
5)Aluminum window door corner key cutting saw:LJMJ-CNC-500B
https://youtu.be/E63j549p05M
6)Aluminum window End Milling Machine(for window mullion):LDX-350
https://youtu.be/bPFfy22sqG4
7)Aluminum Profile Punching Machine: LLZC-50
https://youtu.be/jFuMFrkR33g
8)CNC Milling Drilling Machine Center : DMCC82
Parker Machinery Co., Ltd is a leading supplier and exporter of door and window making machine in China.
We mainly provide aluminum profile Machine:
1)Aluminium window door frame machine :CNC cutting machine,
2) insulating glass processing machine.
3)PVC window and door machine,
4)3Axis,4Axis CNC Drilling and Milling Machine Center curtain wall equipment, and so on.
Complying with European standards, we always purchase main parts internationally.
Our machinery has passed CE and UL certifications.
They are exported to over120Countries and regions, such as North America, East Europe and the Middle East
Aluminium Window Door Machine,Aluminium profile Saw Cutting Machine,Aluminium Window door frame Corner Crimping Machine, Window door Punching Machine, 3 Axis 4 Axis Machine center/ Milling and Drilling machine,China Aluminium Door Making machine, Window door Fabrication Machine.
1)Over 13 years factory experience in this line
Parker Machinery Co.,Ltd China. who established in 2003 year,we own 13years experiences,
We have a large group of good quality with good price parts supplier: Aluminum Window Door Making Machine,PVC Window door making machine, Insulating Glass Production Line, CNC milling and drilling machine center.They are stable and very cooperated due to our big factory strength.
2)Professional/Advance Production lines with professional workers!

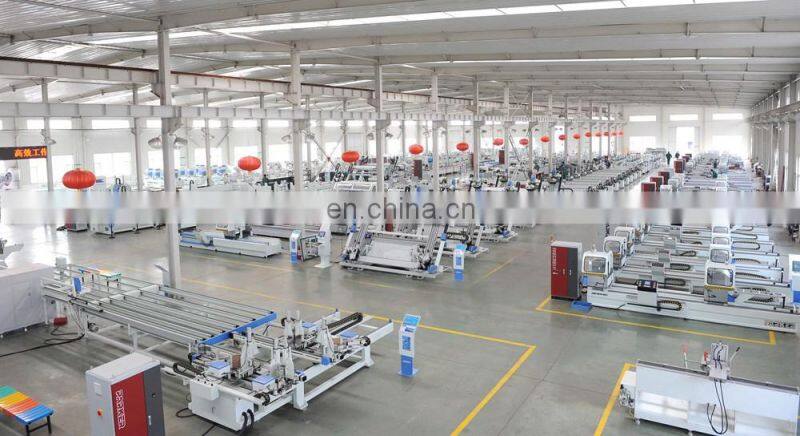

66000 Indsutrial Zone for our product which have been get patented Invented.and 24 hours work time for our customer
3).The stable annual output
The stable output was upon the stable quality,This can only be achieved through innovative research
and developments together with decades of experience on countless brewery projects all over the world.
4).Our factory workers and service team was very powerful and professional.
We always can meet your requirements upon our tech and service.
The large group of tech and service team will meet you around 24 hours.we have our professional
Contact us Below:
Nicole | |
Parker Machinery Co., Ltd China | |
Address: | 9th Floor, NO. 9 Building, Shuntai Square, High-tech Development Zone, Jinan, Shandong Province, China |
Tel: | +86-531-88075288 , Mobile:86 139 6918 8486 |
Fax: | +86-531-88977066 |
Email: | nicole.kou (at) , Skype:nicole4.parker |
Web: | |
Industrial Park: | Mingjia West Road, Qihe, Shandong, China |
