Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| Type | Horizontal | Certification | ISO CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 2500KG | Dimension(L*W*H) | 4525 x 1630 x 1900mm | |
| Voltage | 380V/50Hz, 380V 50HZ | Condition | New | |
| Power(W) | 6Kw |
Product Description

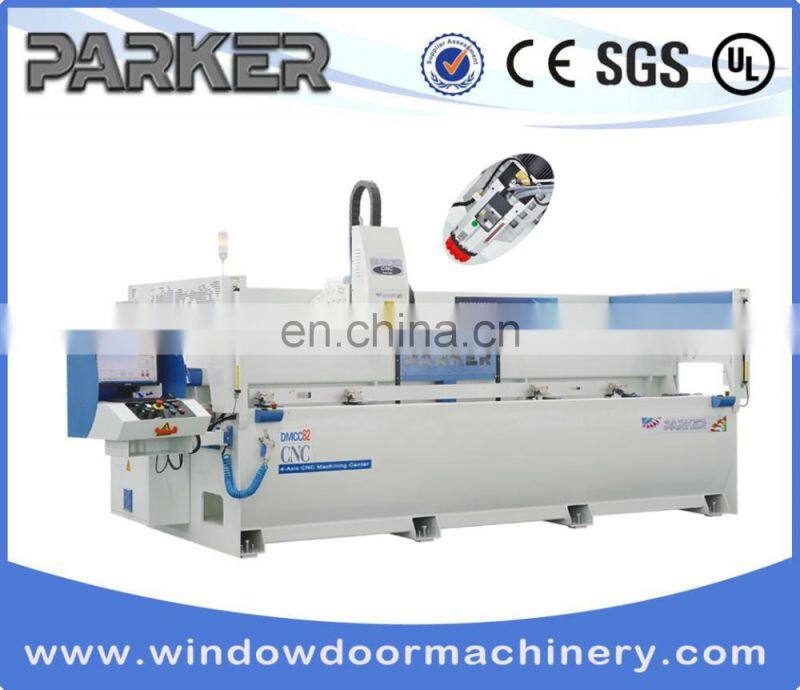

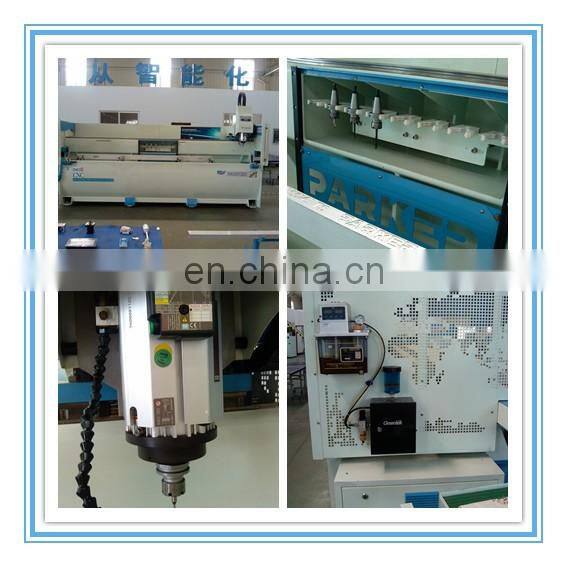

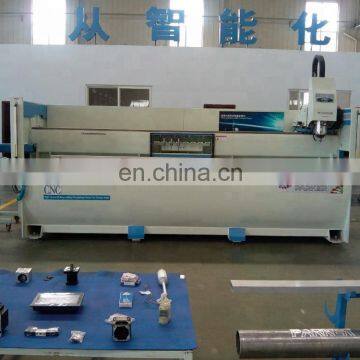

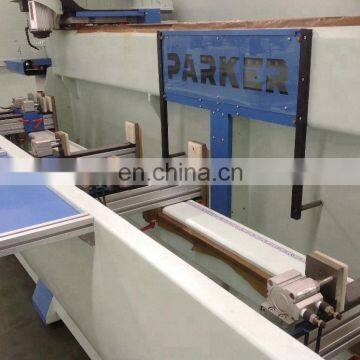

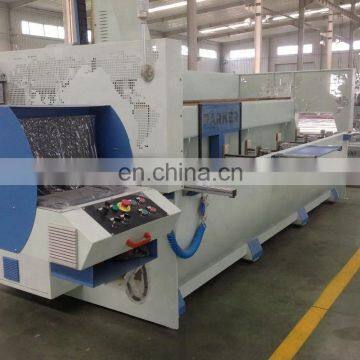

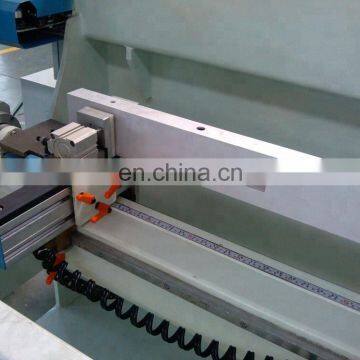

Aluminum Profiles and Curtain Wall 4 Axis CNC Machining Center/Aluminum Profiles CNC Drilling and Milling Machine Center
Features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts imported high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4. It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.
6. It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
Parameter:
Voltage: …………………………..380V 50HZ
Total Power: ……………………...6Kw
Air pressure: …………………….0.5-0.8MPa
X axis: ……………………………3200mm
X axis running speed: ………….0 – 140m/min
Y axis: …………………………...300mm
Y axis running speed: ………….0 – 75m/min
Z axis: ……………………………200mm
Z axis running speed: ………….0 – 75m/min
Processing angle: ……………...-900 00 +900
Cutter diameter:………………...ER25 8mm
Max. processing speed: ………..18000rp
1. One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3. Free maintenance service.
4. Free training course at our factory with professional engineers.
5. We provide the consumable parts at agent price when you need replacement.
6. Engineer available overseas.
1. When can we arrange shippment?
We usually arrange shippment in 25 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
