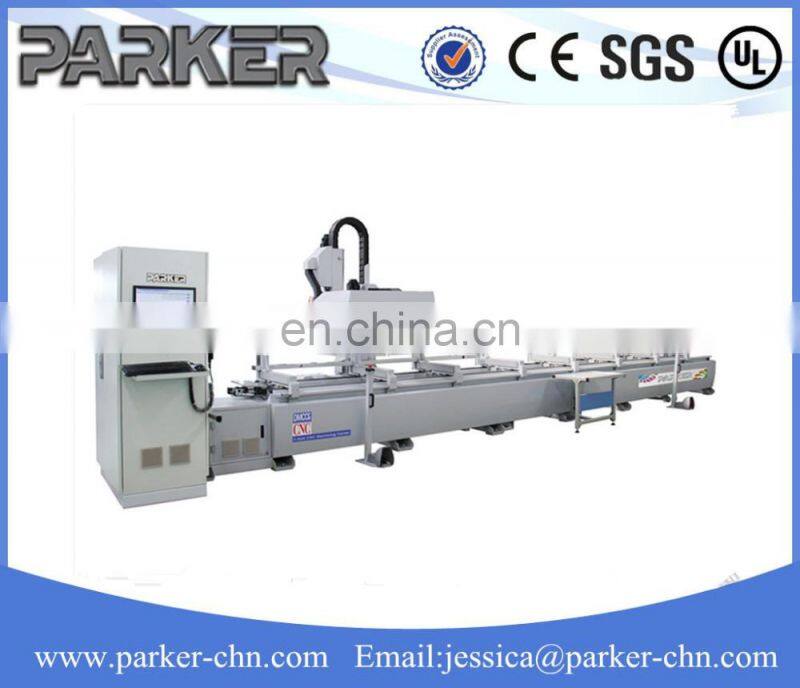

Aluminum Profile 4 Axis CNC Milling Drilling Machine for Raiway

Aluminum CNC Machining center

Feature

1.The Machine is suitable for processing installation holes ,water slot,shaped holes and end milling and making screw on curtain walls and aluminum windows and doors.

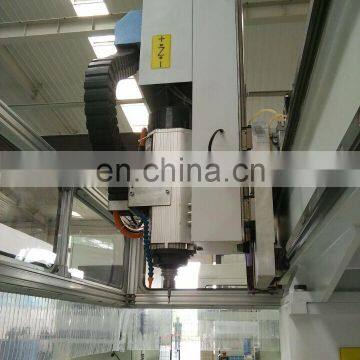

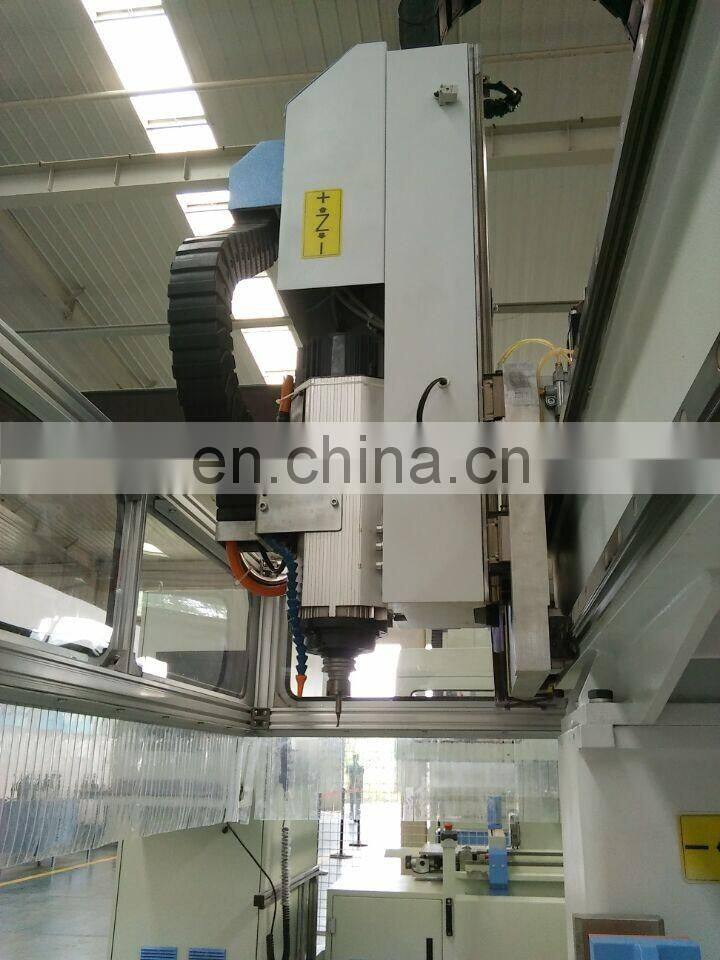

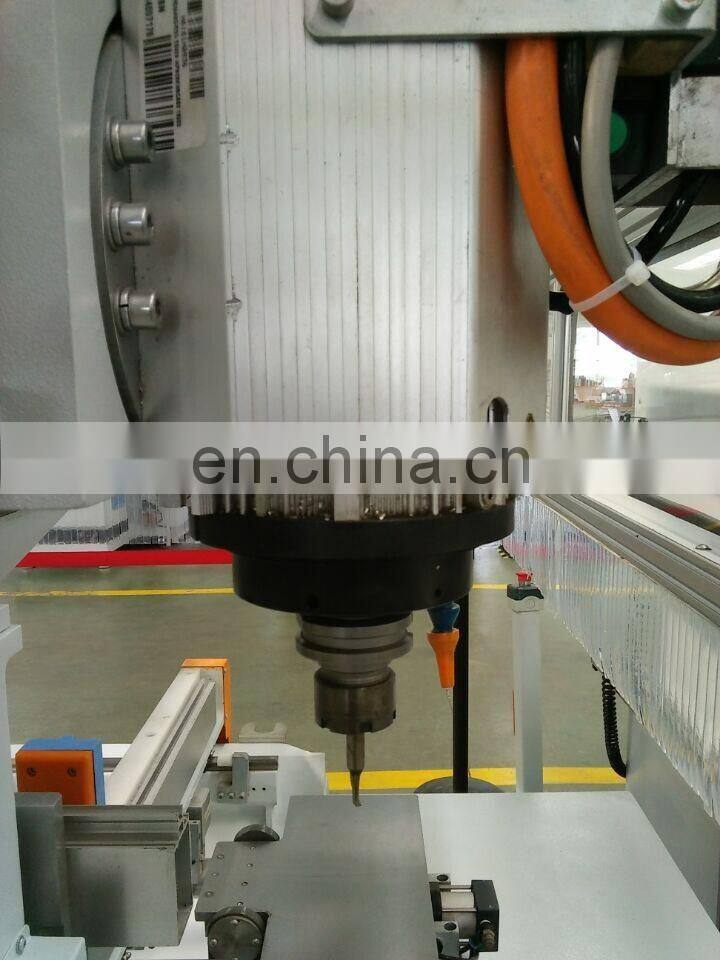

2.It adopts high-speed electric principal axis,which is imported from Italy.It’s extremely efficent and can swing in +-90 Angle

3.It adopts high-quality computer control system which is used in industry area specially,with good user interface,graphical programming and processing tracking interface,truly realize what you see and what you get.

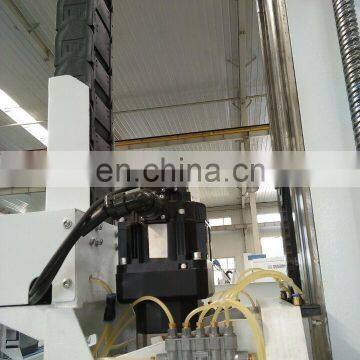

4.It adopts high-quality servo motor,ball screw,linear guide pair and bearing and so on to ensure the machine runs with high precision.

5.Equipped six cutters positions,the cutter can change quickly and automatically.

6.The semi-closed guard improved security greatly

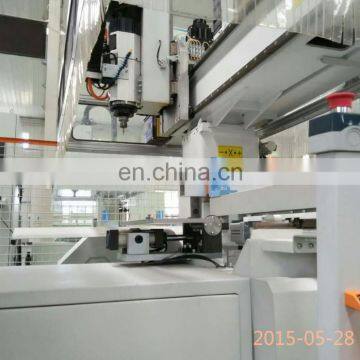

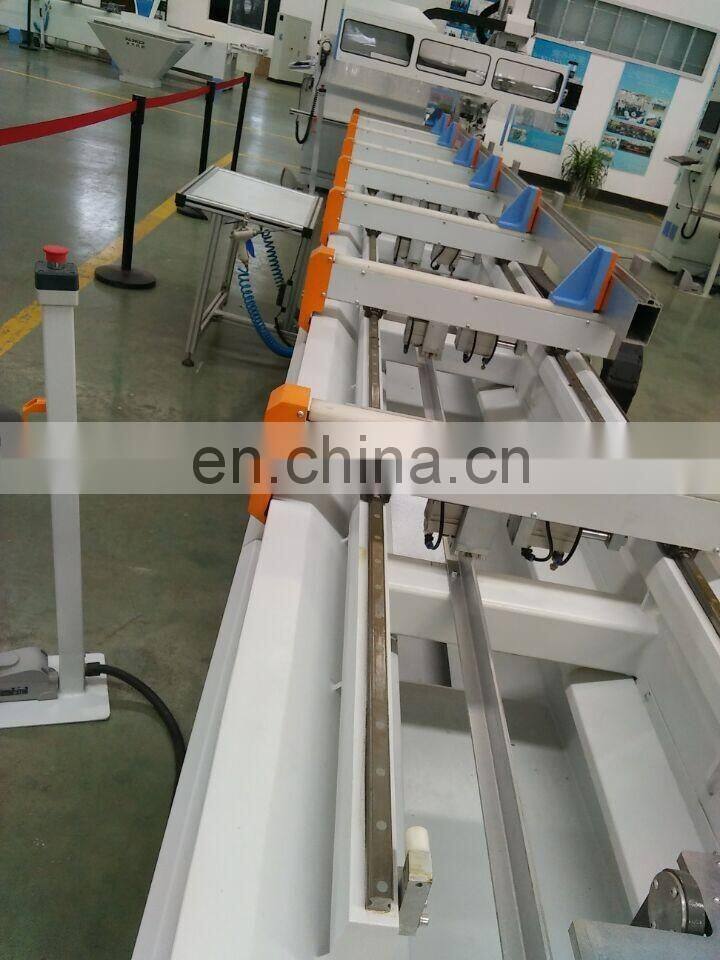

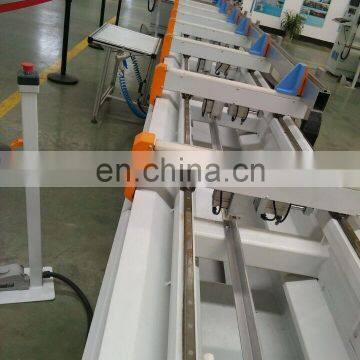

7.Clamping device position can be optimized and put to right position automatically and freely.

Parameter

Name 4 axis CNC machining center
Model DMCC6
Power 380V/50Hz/10kw
Air pressure 0.5-0.8Mpa
X axis stroke 7600mm
X axis speed 90000mm/min
Y axis stroke 960mm
Y axis speed 80000mm/min
Z axis stroke 610mm
Z axis speed 75000mm/min
Cutter Station 6 cutter,automatic change by program
Cutter Max.Length 165mm
Resetting error ±0.02mm
Processing error ±0.1mm
Surface roughness Ra12.5μm
Overall dimension:10100mmx2300mmx2600mm
Processing dimension :7300mmX550mmx300mm
