Aluminum Profile CNC Milling and Drilling Machine for Aluminum Window Doors/ 4 Axis Copy Router Machine Center
- Qingdao
- T/T Credit Card
You May Like
-
Aluminum CNC Machining Center for Milling Drilling Tapping
-
Aluminum Profiles CNC Double-Head Cutting Saw Double Mitre Saw Aluminum Cutting Cut Off Saw
-
Aluminum Profile 4 Axis CNC Milling Drilling Machine for Raiway
-
Cnc High Quality Machine Center For Aluminum Product Milling Drilling
-
Parker Aluminum Double Head Mitre Saw With CNC
-
Aluminum CNC Cutting Saw Machine From Parker
Product Details
| Brand Name | PARKER | Place of Origin | Shandong, China | |
| Type | Horizontal | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 2500Kg, 2500Kg | Dimension(L*W*H) | 4525 x 1630 x 1900mm | |
| Voltage | 380V/50Hz, 380V 50HZ | Condition | New | |
| Power(W) | 6Kw |
Product Description

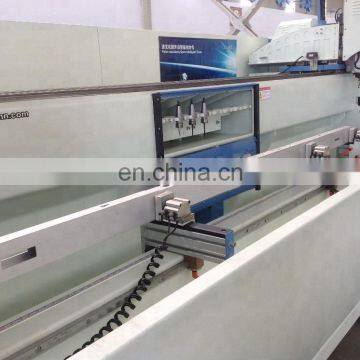

Aluminum Profile CNC Milling and Drilling Machine for Aluminum Window Doors/ 4 Axis Copy Router Machine Center
Features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts imported high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4. It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.

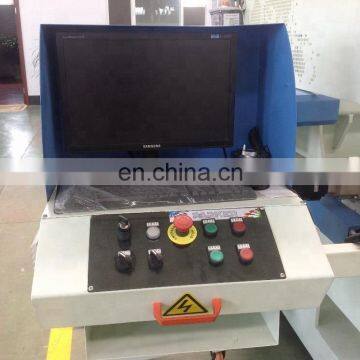

6. It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
Parameter:
Voltage: …………………………..380V 50HZ
Total Power: ……………………...6Kw
Air pressure: …………………….0.5-0.8MPa
X axis: ……………………………3200mm
X axis running speed: ………….0 – 140m/min
Y axis: …………………………...300mm
Y axis running speed: ………….0 – 75m/min
Z axis: ……………………………200mm
Z axis running speed: ………….0 – 75m/min
Processing angle: ……………...-900 00 +900
Cutter diameter:………………...ER25 8mm
Max. processing speed: ………..18000rpm
Overall dimension: ……………...4525 x 1630 x 1900mm
Weight: …………………………...2500Kg
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
1. When can we arrange shippment?
We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
