Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Model Number | SYNTEC controller sysytem | |||
| Year | 2018 | Condition | New |
Product Description

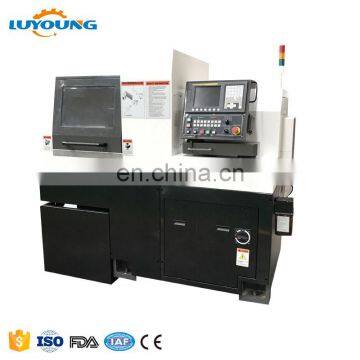

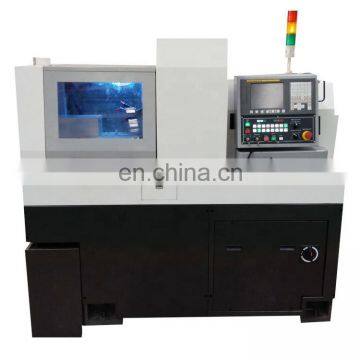

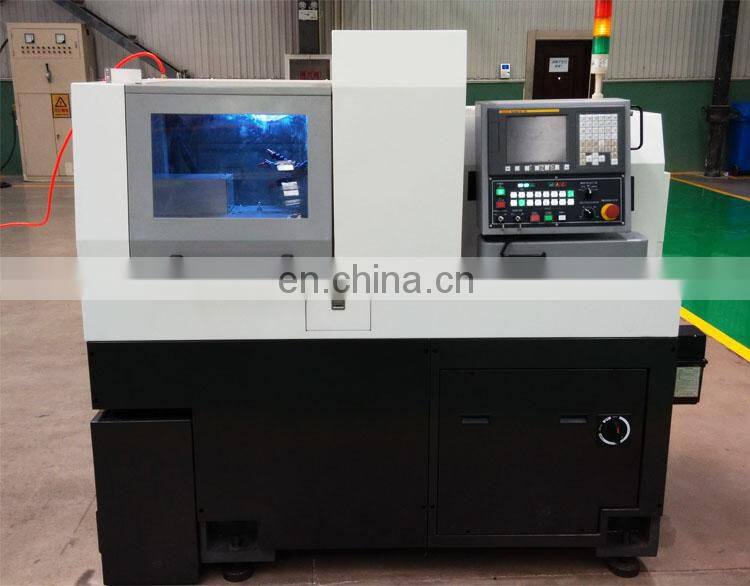

AK164 high precision swiss type combo lathe milling machine for sale

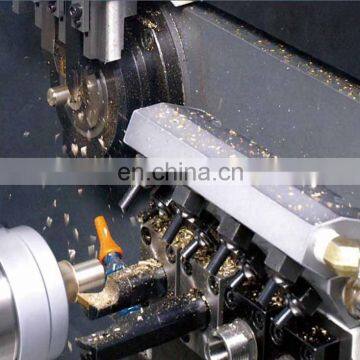

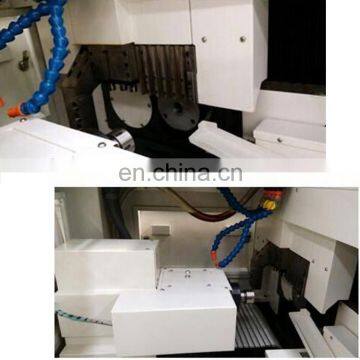

AK164 high precision swiss type combo lathe milling machine for sale configuration vice spindle, belonging to the turning and milling compound model. The biggest feature is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender shaft parts.
Specification of AK164 high precision swiss type combo lathe milling machine for sale
describe | unit | specifications | |||
Processing capacity | Max maching diameter | mm | 16 | ||
Stroke | mm | ||||
Main Spindle RPM | rpm | 8000 | |||
Sub Spindle RPM | rpm | 8000 | |||
Cross Driven Tools RPM | rpm | 6000 | |||
| |||||
Traverse Rate | Stroke | X1 axis | mm | 60 | |
Y axis | mm | 285 | |||
Z1 axis | mm | 150 | |||
Z2 axis | mm | 150 | |||
Rapid Traverse Rate | X1 axis | m/min | 24 | ||
Y/Z1/Z2 axis | m/min | 24 | |||
Arrangement of tools | ea | 6 | |||
ea | 3 | ||||
ea | 3 | ||||
O.D Tools specification | mm | 12×12 | |||
Front Work Tools diameter | mm | 25 | |||
Power Tool Chuck Specifications | mm | E6 | |||
Motors | Spindle motor | kw | 3.7/5.5 | ||
Sub Spindle motor | kw | 0.55/1.1 | |||
Servo axis motor | kw | 0.75 | |||
Cross Driven Tools motor | kw | 0.55 | |||
Lubrication pump motor | w | 5 | |||
Coolant motor | kw | 0.25 | |||
Others | Coolant tank capacity | L | 180 | ||
Lubrication tank capacity | L | 1.8 | |||
Height from floor tospindle center | mm | 1050 | |||
Floor space | (L) | mm | 1950 | ||
(W) | mm | 1334 | |||
(H) | mm | 1680 | |||
Mass of machine | kg | 3000 | |||
CNC control unit |
| FANUC 0i- TD | |||
Configuration:
1 | CNC controller: Taiwan Syntec Controller system |
2 | Automatic lubrication system |
3 | Water pump cooling system |
4 | Full Protection Frame |
5 | Cross living tools,4live tools |
6 | Z axis direction Fixed cutter holder,4 drilling tools holder(ER16) |
7 | P4 classes Precision screw guide:Japan THK brand(X,Y,Z) |
8 | Electric spindle |
9 | Bearing:Japan NSK |
10 | C axis Stepless indexing |
11 | X1,Y1,Z1,Z2 ,X2 aixs servo motor: Japan YASGAWA |
12 | Driving---Japan YASGAWA |
13 | Long workpieces feed tube |
Optional configuration
1. | CNC controller:Fanuc Controller system |
2. | The oil film type automatic feeder(3000MM) |
3. | Taiwan whirling head |
4. | Deep hole drilling tool holder (high pressure oil cold,oil collector) |
Application of AK164 high precision swiss type combo lathe milling machine for sale
Swiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, military, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.

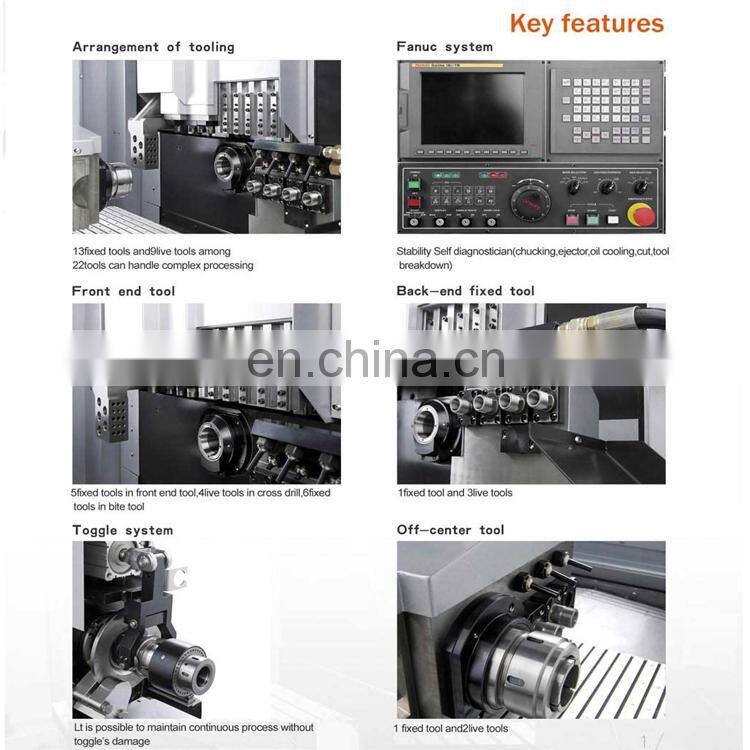

2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).

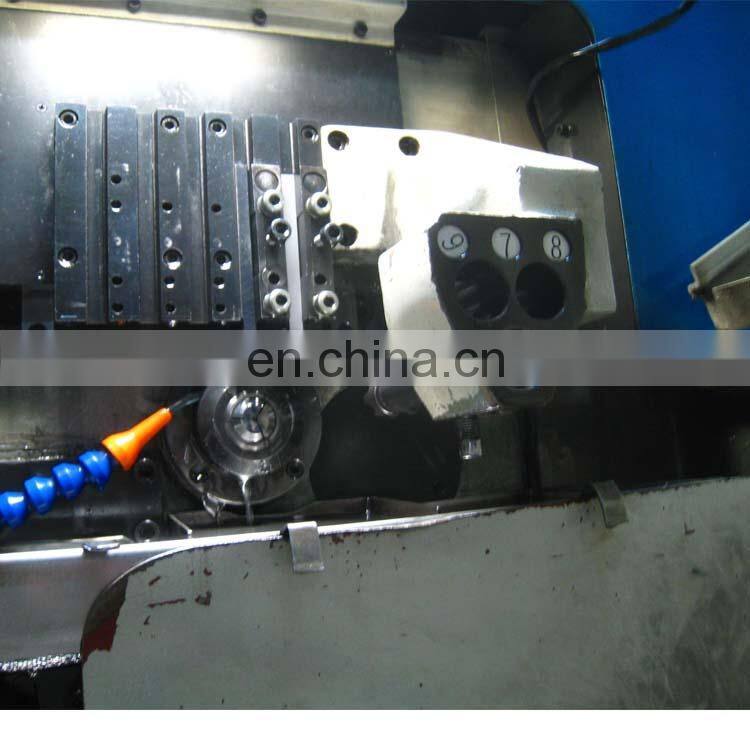

3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.

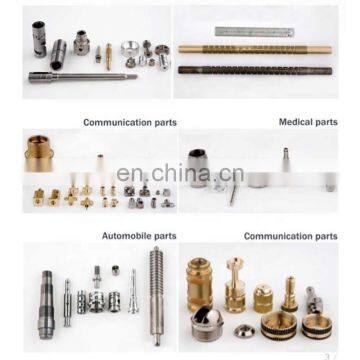

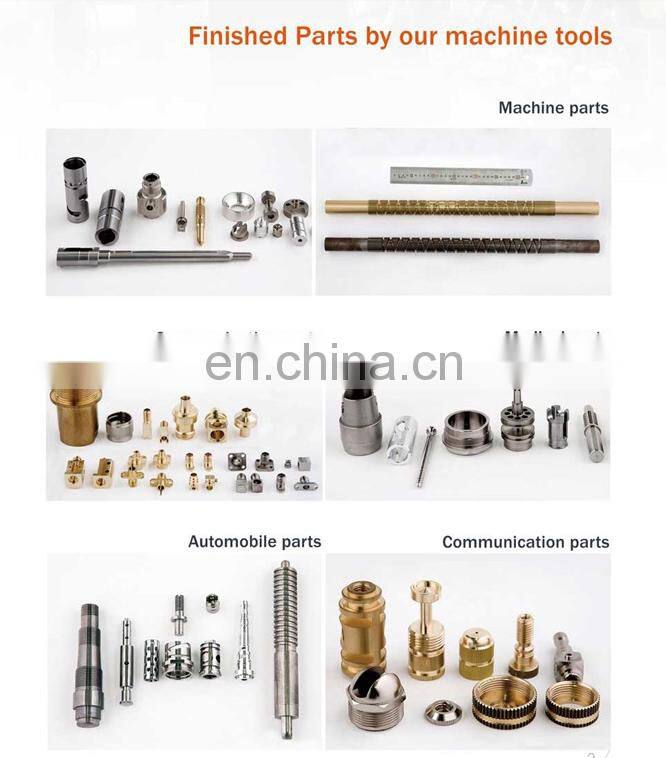

6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine tools
Why choose our AK164 high precision swiss type combo lathe milling machine for sale ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
