Home > Products > Wire Stripping Machines > Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine

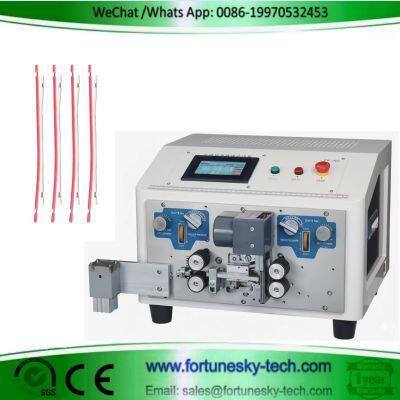

Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine
- Shenzhen
- T/T PayPal Western Union
- 3 days
You May Like
-
Automatic Flat Sheathed Cable Cutting Stripping Machine
-
Automatic Multi-core Cable Cutting Stripping Machine
-
Automatic Multicore Cable Cutting Sheath & Cores Stripping Machine
-
Automatic Ribbon Cable Splitting Cutting Stripping Machine
-
Automatic Sheathed Cable Cutting Sheath and Cores Stripping Machine
-
Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine
Product Details
| Material | Metal | Certification | CE | |
| Warranty | One Year Limited | Application | Other, Wire Cutting and Stripping | |
| Standard | ANSI | After-sales Service | Yes | |
| Customized | Customized | Condition | New | |
| Transport Package | Plywood Case | Specification | Yes | |
| Trademark | Yes | Origin | China |
Product Description
Features
Full touchscreen CNC control for easy-to-understand digital operation, including wire length, single-end stripping, double-end stripping, single-end splitting, double-end splitting, single-end differential length stripping, and double-end differential length stripping.
Utility blade splitting method provides a smoother, burr-free split.
The cylinder and roller design pulls the wire for splitting, allowing for unlimited and easily adjustable splitting lengths.
The independent splitting structure is easy to disassemble and can be used for general electronic wires, making it a versatile machine.
The L model handles two wires with length differences. When the tail end has a significant differential stripping length, a clamp is used to help straighten the wires. The differential length is fully adjustable and can be easily switched between differential and non-differential modes.
Technical Parameters:
| Component | Description | Component | Description |
| Equipment Name | Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine | Cutting Wire Core | 0.3-2.5mm2 (dual parallel wire) |
| Equipment Model | FY-902L | Cutting Length | 0.1-99999.9mm |
| Input Power | AC220V 50/60HZ | Stripping Head Length | 0.1-30mm |
| Body Dimensions | L520mm*W465mm*H350mm | Stripping Tail Length | 0.1-30mm |
| Body Weight | 38kg | Splitting/Differential Length | Arbitrarily adjustable |
| Total Power | 680W | Blade Material | High-speed steel |
| Rated Power | 400W | Stripping Accuracy | Silent hybrid stepping motor 0.01mm |
| Display Mode | 4.3-inch color screen display | Capacity/Hour | 50-1000mm (1000-2500 pieces/hour) |
| Auxiliary Functions | Automatic feeding/retracting, timed start, jogging adjustment | ||
| Program Storage | Serial numbers 00-99 (one-key copy, one-key read, can be customized with names) |
