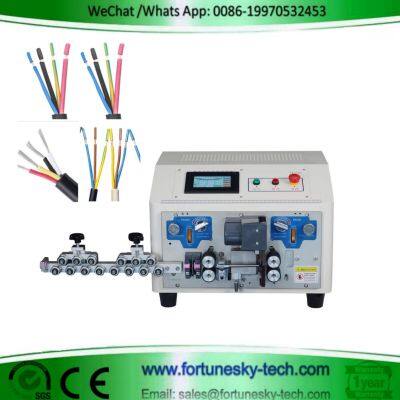

Automatic Multi-core Cable Cutting Stripping Machine
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T PayPal Western Union
- 3 days
You May Like
-
Automatic Multicore Cable Cutting Sheath & Cores Stripping Machine
-
Automatic Ribbon Cable Splitting Cutting Stripping Machine
-
Automatic Sheathed Cable Cutting Sheath and Cores Stripping Machine
-
Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine
-
Automatic Wire Cut Strip Twisting Machine
-
Automatic Wire Cutting Stripping and Twisting Machine
Product Details
| Material | Metal | Certification | CE | |
| Warranty | One Year Limited | Application | Other, Wire Cutting and Stripping | |
| Standard | ANSI | After-sales Service | Yes | |
| Customized | Customized | Condition | New | |
| Transport Package | Plywood Case | Specification | Yes | |
| Trademark | Yes | Origin | China |
Product Description
Feature:
Single-chip microcomputer self-developed motion control board
Full-touch 4.3-inch LCD screen
Low-noise hybrid subdivision driver
One-key correction for wire length error
Unique smooth and precise exterior design
Round sheathed cable: cutting, inner and outer stripping of both ends completed in one step
Technical Parameters:
| Model | FY-905 | Cutting Outer Diameter | 1?6mm |
| Power Supply | AC220V 50/60HZ | Number of Cores | 2 cores/3 cores/4 cores/5 cores |
| Machine Dimensions | 470mm*450mm*350mm | Cutting Length | 0.1-99999.9mm |
| Machine Weight | 36.5kg | Outer Sheath Stripping Length | Head 0.1-250mm, Tail 0.1-70mm |
| Blade Material | Imported Tungsten Steel / High-Speed Steel | Inner Core Stripping Length | Head 0.1-30mm, Tail 3-30mm |
| Stripping Precision | Silent Hybrid Stepper Motor 0.01mm | Middle Strip Segments | Customizable |
| Rated Power | 700W | Additional Functions | Automatic feeding/output, timed start, jogging adjustment |
| Capacity (100mm/500mm/1000mm) | 1300 pcs/1100 pcs/900 pcs per hour | Optional Accessories | Automatic wire feeder, gripper, long wire conveyor belt |
