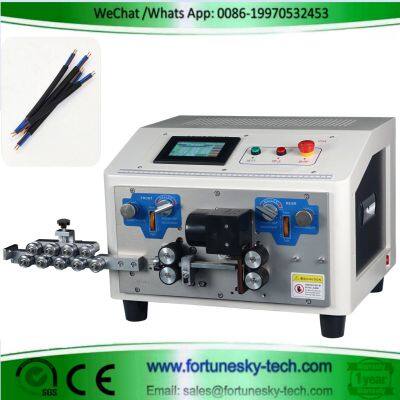

Automatic Flat Sheathed Cable Cutting Stripping Machine

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Metal	Certification	CE
Warranty	One Year Limited	Application	Other, Wire Cutting and Stripping
Standard	ANSI	After-sales Service	Yes
Customized	Customized	Condition	New
Transport Package	Plywood Case	Specification	Yes
Trademark	Yes	Origin	China

Features

This machine is specially designed for the simultaneous stripping of the inner and outer layers of 2, 3, and 4-core flat sheathed cables, greatly improving efficiency.
The full touchscreen CNC control allows for simple, digital operation.
The unique, sleek, and compact design makes it easy to place.

Product Specifications

Equipment Name	Automatic Flat Sheathed Cable Cutting Stripping Machine	Equipment Model	FY-904
Strippable Core	20.3mm2 – 21.5mm2	Cutting Length	0.01 – 999999.99mm
Input Power	AC220V 50/60HZ	Dimensions	L470mmW465mmH350mm
Lead End Stripping	Outer layer: 0.01-100mm	Tail End Stripping	Outer layer: 0.01-70mm
Lead End Stripping	Core: 0.01-30mm	Tail End Stripping	Core: 0.01-30mm
Machine Weight	31.5kg	Total Power	680W
Rated Power	400W	Working Pressure	0.5-0.8MPa
Production Capacity	600-1000 pcs/hour	Blade Material	High-speed steel
Stripping Accuracy	Silent hybrid stepper motor: 0.01mm	Detection Function	Wire shortage detection
Conduit Swing	Electromagnet	Program Storage	00-99
Display Method	4.3-inch color screen	Auxiliary Functions	Automatic feeding/discharging, timed start, jogging adjustment
