Home > Products > Wire Stripping Machines > Automatic AWG30-AWG10 Wire Cutting Stripping Machine

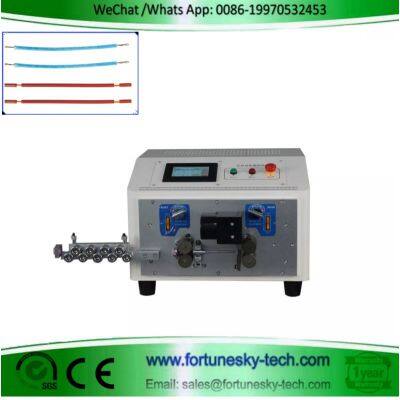

Automatic AWG30-AWG10 Wire Cutting Stripping Machine
- Shenzhen
- T/T PayPal Western Union
- 3 days
You May Like
-
Automatic Battery Cable Cutting Stripping Machine
-
Automatic Double Parallel Wire Cutting Stripping Splitting Machine
-
Automatic Dual Parallel Wire Diff. Length-Cutting Stripping Splitting Machine
-
Automatic Flat Sheathed Cable Cutting Stripping Machine
-
Automatic Multi-core Cable Cutting Stripping Machine
-
Automatic Multicore Cable Cutting Sheath & Cores Stripping Machine
Product Details
Material | Metal | Certification | CE | |
Warranty | One Year Limited | Application | Other, Wire Cutting and Stripping | |
Standard | ANSI | After-sales Service | Yes | |
Customized | Customized | Condition | New | |
Transport Package | Plywood Case | Specification | Yes | |
Trademark | Yes | Origin | China |
Product Description
Features Description
1. Full Touch Screen CNC Debugging: Wire length, single-end stripping, and double-end stripping are all completed via digital operation, making it simple and easy to understand.
2. Unique Appearance: Sleek and precise round design, delicate and compact, convenient for placement.
3. Automatic: Features automatic feeding/outfeeding, timed startup, and inching adjustment switch.
4. Error Correction: One-key correction function for wire length error.
5. Applicable Wires: Suitable for electronic wires, PVC wires, silicone wires, braided wires, Teflon wires, fiberglass wires, shielded wires, etc.
Technical Parameters:
Equipment Name | Fully Automatic Computerized Wire Stripping Machine | Cutting Wire Core | 0.1?6mm2 (AWG30#-10#) |
Equipment Model | FY-805 (Single Wire Processing) | Cutting Length | 0.1?99999.9mm |
Input Power | AC220V 50/60HZ | Stripping Head Length | 0.1?30mm |
Machine Dimensions | L470mm× W465mm× H350mm | Stripping Tail Length | 0.1?30mm |
Machine Weight | 31.5kg | Mid-Stripping Segments | 16 segments (Customizable) |
Total Machine Power | 680W | Display Method | 4.3-inch color screen display |
Rated Power | 400W | Blade Material | Tungsten Steel / High-Speed Steel |
Production Capacity / Hour | 50?1000mm (2000?4500 wires/hour) | Stripping Accuracy | Silent hybrid stepper motor 0.01mm |
Auxiliary Functions | Auto feed/outfeed, Timed startup, Inching adjustment | Program Storage | No. 00?99 (One-key copy, one-key read, customizable number/name) |
