vmc420 high speed automatic china vertical cheap 3 axis cnc milling machine
- 1000 per Month
- T/T Credit Card
You May Like
-
BC6085 Traditional education shaping machine with metal price
-
BC60100 Company price horizontal shaper machine with factory price
-
B5020 Company price vertical slotting machine with top selling
-
B5032 professional supplier vertical slotting machine
-
CK6130 Flat bed 2 aixs precision chinese cnc metal lathe small machine
-
ck6132 high precision small cnc horizontal metal lathe machine
Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Type | Vertical | Certification | ISO CE | |
| Warranty | 1 Year | |||
| Weight | 1700kg | Dimension(L*W*H) | 1900*1400*2100mm | |
| Voltage | 220V/380V | Condition | New | |
| Power(W) | 3.7/5.5KW |
Product Description

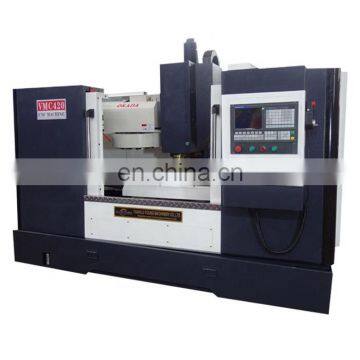

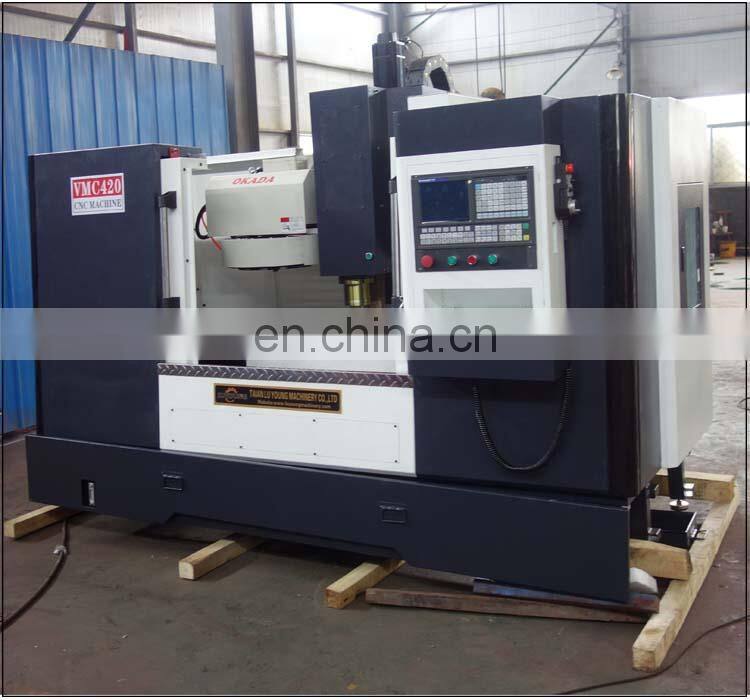

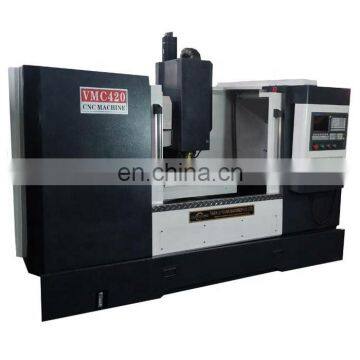

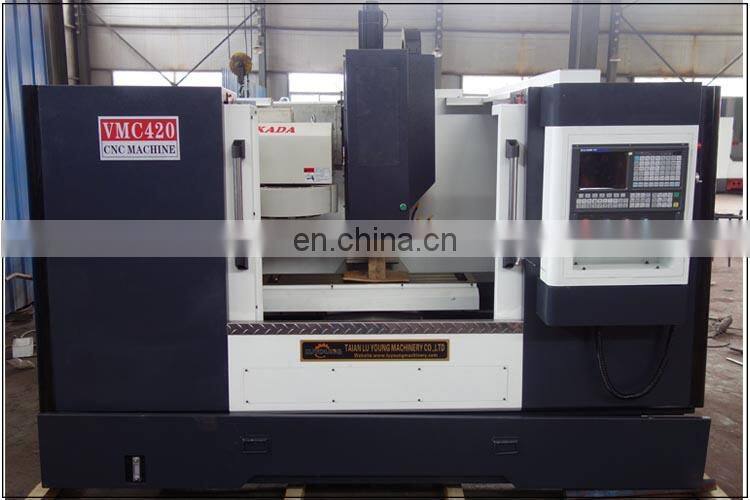

vmc420 high speed automatic china vertical cheap 3 axis cnc milling machine
| vmc420 high speed automatic china vertical cheap 3 axis cnc milling machine is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable. |

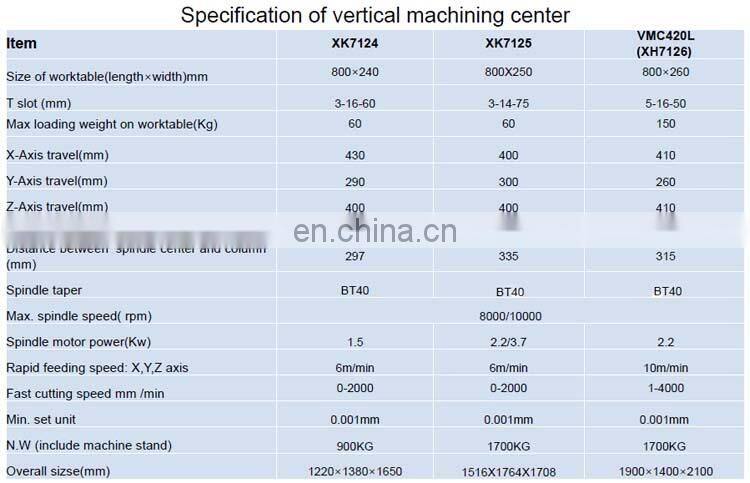

Specification of vmc420 high speed automatic china vertical cheap 3 axis cnc milling machine
| VMC420L | ||||
| Table size (mm) | 800×260 | |||
| T-Slot Q-W(mm)–Distance(mm) | 5-16-50 | |||
| Max,load (kg) | 150 | |||
| Travel of X axis(mm) | 410 | |||
| Travel of Y axis(mm) | 260 | |||
| Travel of Z axis(mm) | 410 | |||
| Distance from spindle nose to table (mm) | 70-480 | |||
| Distance from center of spindle to Column guideway (mm) | 315 | |||
| Taper hole of spindle | BT40 | |||
| Max speed of spindle (Rpm) | 8000 | |||
| Power of main power(kW) | 3.7kw/5.5kw | |||
| X,Y,Z Rapid feed rate (m/min.) | 15 | |||
| fast cutting speed (mm/min) | 1-6000 | |||
| Accuracy | Positional accuracy mm | 0.02 | ||
| Repeat positional accuracy mm | 0.01 | |||
| Tools | Number | 12 | ||
| Time of tool changing | 12 | |||
| Operation pressure Mpa | 0.6 | |||
| Weight kg | 1700 | |||
| Dimension | 1900×1400×2100mm | |||
Configuration:
1. High strength resin sand casting 2. Harden guide way

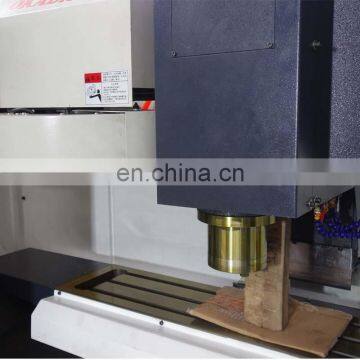

3.Siemens808D system 4. BT40 Taiwan high speed spindle unit 8000rpm
5.3 axis 6. Separate the hand wheel
7. Pneumatic broach system 8. Full guard
9. Automatic intermittent lubrication 10.Colling system
Workpiece sample

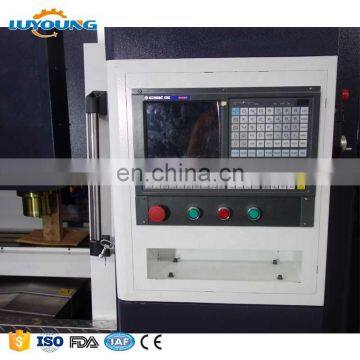

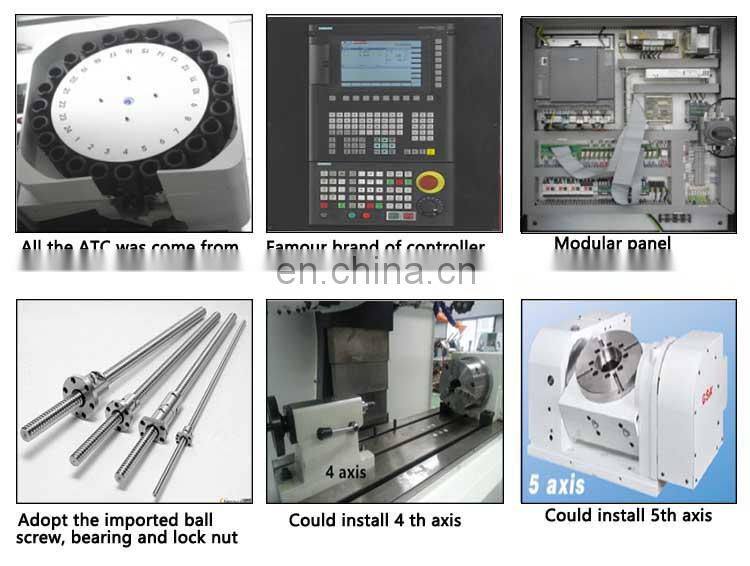

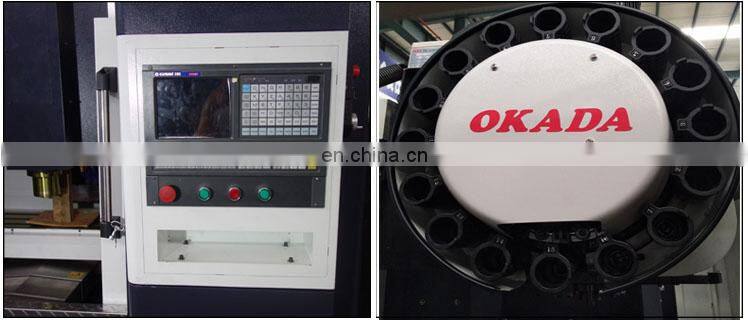

2. CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS, FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision. The bumper block at the end of the ball screw could protect the machine parts when have impact.
5.4 Axis and 5 Axis support : if you have special request for the 4 axis or 5 axis, we also could supply as your reques
Why choose our vmc420 high speed automatic china vertical cheap 3 axis cnc milling machine ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
Feedback from our customer
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.Does thevmc420 high speed automatic china vertical cheap 3 axis cnc milling machine can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
How to contact us? My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
