DK7780 Wholesale Tapping Fast Wire Contour Cutting Machine
- Qingdao or shanghai
- T/T Credit Card
You May Like
-
DK77100 Company Good Efficiency Metal Wire Cutting Machine
-
Ck6140 China Semi Automatic Metal Cnc Lathe Machine Fanuc for Sale
-
High Quality Metal Heavy Duty Cnc Horizontal Lathe Machine Ck6150
-
Xh7125 China Cheap 3 Axis Vertical Build Your Own Cnc Milling Machine
-
Vmc850 High Quality Cheap 3 Axis Cnc Metal Milling Machine for Sale
-
CK6130 Small China Machine Cnc Lathe With Metal Horizontal Turning
Product Details
| Brand Name | Lu YOUNG | Place of Origin | Shandong, China | |
| Certification | CE | |||
| Warranty | 1years | Weight | 4000KG | |
| Dimension(L*W*H) | 2600*2400*2000 mm | Voltage | 380V | |
| Condition | New | Power(W) | 2KW | |
| CNC or Not | CNC |
Product Description

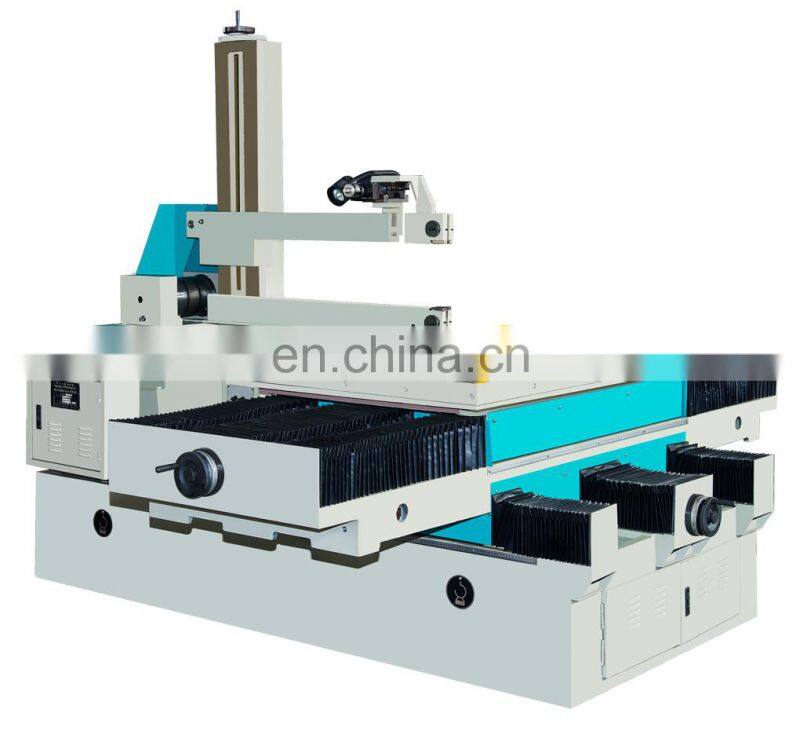

DK7780 Wholesale tapping fast wire contour cutting machine
Model No. | WOrk range(MM) | Max machining depth(MM) | Max loading weight(KG) | Roughness | Dimensions | Accuracy | Weight(KG) |
DK7730 | 300*360 | 350 | 150 | Ra≤2.5μ | 1400*1050*1500 | ±0.01 | 1100 |
DK7732 | 320*400 | 350 | 200 | Ra≤2.5μ | 1450*1050*1500 | ±0.01 | 1200 |
DK7735 | 350*450 | 360 | 200 | Ra≤2.5μ | 1500*1100*1500 | ±0.01 | 1400 |
DK7740 | 400*500 | 400 | 320 | Ra≤2.5μ | 1700*1050*1700 | ±0.01 | 1500 |
DK7750 | 500*630 | 450 | 500 | Ra≤2.5μ | 2050*1800*1700 | ±0.01 | 1900 |
DK7763 | 630*1000 | 600 | 1000 | Ra≤2.5μ | 2400*2650*2000 | ±0.01 | 2800 |
DK7780 | 800*1150 | 600 | 1500 | Ra≤2.5μ | 2650*2750*2400 | ±0.01 | 5200 |
DK77100 | 1000*1300 | 800 | 4000 | Ra≤2.5μ | 3200*3200*3000 | ±0.01 | 6700 |
Performance
Good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
Four axis linkage,wire breaking protection.It is especially suitable for mould processing
Features and Options
1, BMXP software Functions:
(1)Coordinate system: Absolute coordinate, incremental coordinate (relative coordinate)
(2)Functions of coordinate transforming, zooming in and zooming out, rotating and tracking display in real time
(3)Functions of interpolation of straight line and circular arc
(4)Function of taper processing
(5)Function of processing different top and bottom abnormities parts
(6)Auto-handle for short circuit and wire-break
(7)Functions of memorizing when power was cut and auto-stop after processing
(8)Functions of auto edge-touching position and auto center finding
(9)Function of auto-adding transitional arc (Arbitrary angle)
(10)Function o Functions of menu technology and auto-programming ward
(11)Functions of menu technology and auto-programming
(12)AUTOCAD can be used to program directly in the software.
2. CNC system configuration and technical performances
(1) CNC Hardware configuration:
(A) Industrial Computer: P4 or above
(B)EMS memory: 1G
(C)Fixed DisK: 160G
(D)USD and Internet
(E)15" liquid crystal display (LCD)
(F) RS232 and Keyboard and mouse
(1)CNC technical function:
4. Axis processing
(2)Running environment
(A)Temperature: 5-40 degree
Relative humidity: 40%~80%
Features of the cnc wire cut edm machine:
Special supporting design of the machine with high strength and heavy loading capacity.
The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.
The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.
The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good
wear resistance.
The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high
transmission efficiency,
good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with
high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is almost 0.
Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high
precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser
interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).

packaging and transportation
1. We use the special plywood box for export, and our products are shipped by sea.
2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
