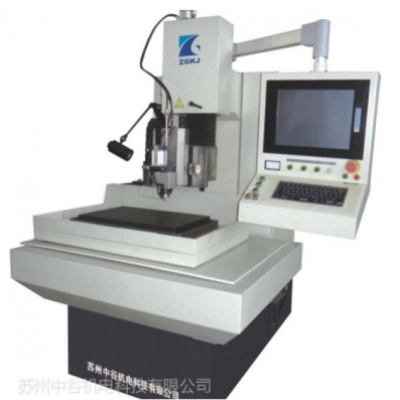

cnc edm drilling machine cnc small hole edm drilling machine 0.15-6.0mm
- 100 Set / Sets per Month
- T/T L/C PayPal
You May Like
-
ZNC edm die sinker machine electric discharge machine edm350 edm450 edm 540 edm550 edm 650
-
DK7735 DK7745 DK7750 DK7763 wire cut machine cnc wedm
-
sevro moto wire cut machine cnc wedm with larger taper
-
wire cutting machine cnc wedm with larger taper ±30°
-
cnc edm die sinker machine electric discharge machine znc edm die sinker machine
-
cnc edm drilling machine cnc small hole edm drilling machine hole edm drilling machine
Product Details
| Place of Origin | China | Certification | iso9001/CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | one year | |
| Weight | 1.5t | Dimension(L*W*H) | 2000*2500*1800 | |
| Voltage | 380V/220V | Condition | New | |
| Power(W) | 2.5kw | CNC or Not | CNC |
Product Description
Serial number | Item name and specification | SPECIFICATIONS | Quantity | Remarks |
1 | CNC EDM high speed perforation |
403cnc |
1 set | |
2 | Complete outfit | Model number | Quantity | Remarks |
Host | 907 | A set | ||
Numerical control system and pulse power supply | 1 set | |||
Instruction manual, repair manual | 1 copy | |||
Electrical Schematics | 1 copy | |||
Certificate of conformity | 1 copy | |||
Guide | φ0.25-φ3.0 Choose either of two | 1 piece each | ||
Tool electrode | Matching guide specifications | 10 of each | ||
Sealing rings | Match the guide specifications | 5 pieces each | ||
Anchor bolts | 4 | |||
Floor pad blocks | 4 pieces | |||
Allen wrench | 1 set | |||
Phillips screwdriver | 100mm | 1 piece | ||
Flat-head screwdriver | 100mm | 1 piece | ||
Wrench | 6" | A piece | ||
Dumb wrench | 14 "- 17" | 1 piece | ||
Water baffle | 1 piece |
I、 Equipment instructions
l The equipment is mainly used in the plane group holes and various inclined planes, curved surfaces, deep holes and other machining difficult to achieve the parts processing, can process steel, aluminum, copper, casting, alloy, titanium alloy, conductive ceramics and other conductive materials blind hole and through hole processing.
l Basic structure: by the host, CNC pulse power control cabinet, working fluid system and other components.
l Main machine: composed of bed, column, X axis, Y axis, Z axis, W axis (manual).
l CNC pulse power control cabinet: composed of industrial control computer, numerical control system, liquid crystal display, servo drive, machine tool electrical appliances, high-efficiency discharge pulse power supply.
? Process deep holes of diameter from Ф0.15-Ф6mm rapidly.
? Servo control system realizes speedy motion.
? High accuracy movement by linear guides of Z，W axis.
? X,Y,Z ,W four axes adopt high accuracy ball screws for fast and agile movement.
? Guide Travels linear guide
? Fast approaching, quickly out of machining
? Three axes DRO with linear scales, auto depth control helps blind holes process.
? One touch, one hole made. (optional)
