Ck6163 Cheap Precision Horizontal Precision Chinese Cnc Metal Lathe
- Qingdao Shanghai Ningbo
- T/T Credit Card
You May Like
-
Ck6150 High Quality Flat Bed Precision Heavy Duty Cnc Lathe Machine With Fanuc Controller
-
XH7126 China High Quality Cnc Milling Machine Price With Automatic
-
Sm385 High Precision Semi Automatic Fanuc Twin Spindle Cnc Lathe and Milling Machine
-
TCK6336 Manufacturers Specification of Slant Bed Cnc Turning Lathe Machine With Living Tool
-
Educational 220v Single Phase Ck0640a Automatic Low Cost Mini Metal Cnc Lathe Machine
-
Vmc7126 Factory Price 3axis Automatic Small Vmc Cnc Vertical Machining Center
Product Details
| Brand Name | Lu Young | Place of Origin | Shandong, China | |
| Model Number | Ck6163 | |||
| Year | 2018 | Condition | New |
Product Description

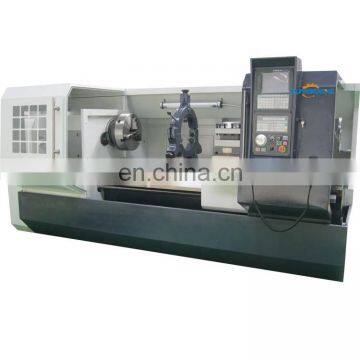

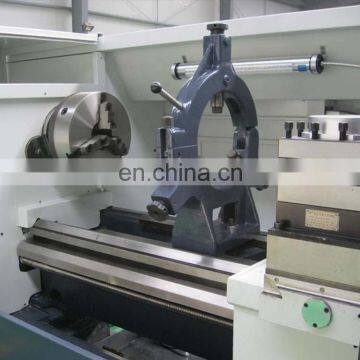

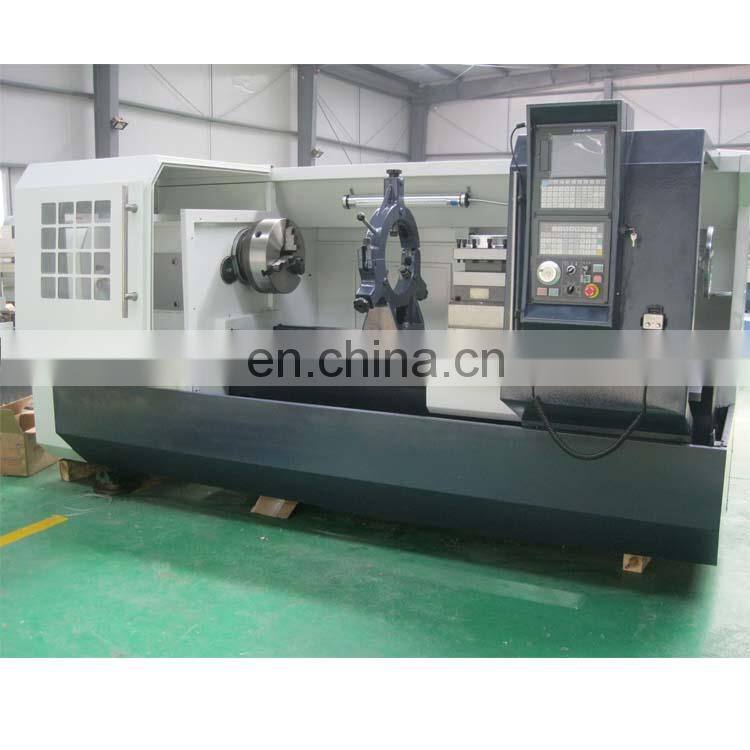

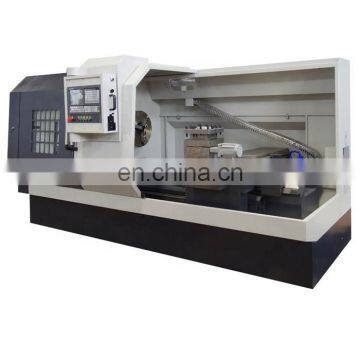

ck6163 cheap precision horizontal precision chinese cnc metal lathe
ck6163 cheap precision horizontal precision chinese cnc metal lathe is characterized by high technical content, rigidity, precision and stability, energy efficient, high power. It is widely used in wind power, petroleum, chemical, papermaking, textile, mining, and so on. It is widely used in wind power, oil, chemical industry, papermaking, textile, mining, Ship, aviation, rubber, mold, auto parts, processing such as steam turbine rotor, belt, generator, turbine rotor, machine spindle, hoist, and so on machinery manufacturing industry.
Specification of ck6163 cheap precision horizontal precision chinese cnc metal lathe :
| ck6163 cheap precision horizontal precision chinese cnc metal lathe | ||
| Max. swing over bed (mm) | Φ630 | Φ630 |
| Max. swing dia. over cross slide(mm) | Φ350 | Φ350 |
| cessing length(mm) | 1000 | 1500 |
| Form | Three gears No grade to change frequency | |
| Number of spindle speed | No grade | |
| Range of spindle speed(r/min) | 25-850 rpm | |
| The spindle terminal structure | C11 | |
| Diameter of spindle bore (mm) | φ105 | |
| The taper of spindle front-end | (Metric)120 1:20 | |
| Power of main motor (KW) | 11KW | |
| Max.travel of tool post (mm) | X:530 Z:1200 | |
| Fast moving feed speed (mm/min) | X:4000 Z:5000 | |
| Resetting accuracy(mm) | X:0.012 Z:0.016 | |
| Processing accuracy(mm) | IT6-IT7 | |
| Surface roughness | Ra1.6 | |
| Sleeve diameter of tailstock (mm) | φ100 | |
| Sleeve travel of tailstock (mm) | 250 | |
| Cone hole taper of tailstock’s sleeve | MT6 | |

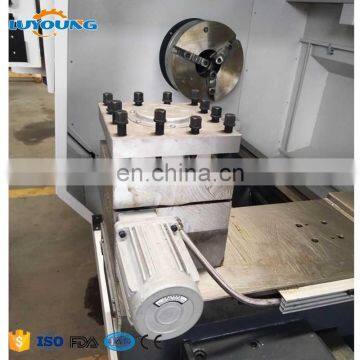

| Standard configuration | Four-station vertical electrical knife rest | |
| Restting accuracy (mm) | 0.01 | 0.01 |
| Length of section of knife handle (mm) | 30×30 | 30×30 |
| Length*width*height | 3200×1820×1780 | 3700×1820×1780 |
| Net weight (Kg) | 4100 | 4500 |
| Standard configuration | Optional configuration | |
| Four-station vertical electrical knife rest | Horizontal Six-station electrical knife rest | |
| 3 jaw chuck | Hydraulic chuck | |
| 4 station electric tool hooder | 6 station electric tool hooder | |
| normal tailstock | Pneumatic chuck | |

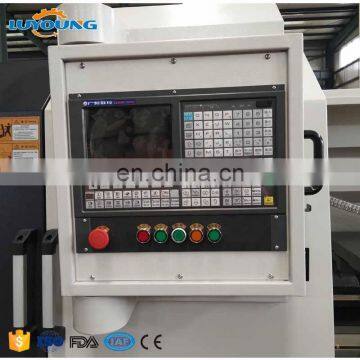

| GSK 980 TDC controller system | Siemens,Fanuc cnc controller system | |
| 380V 3 phase(can be customized ) | ||
Hot selling flat bed high precision CNC lathe machine for metal

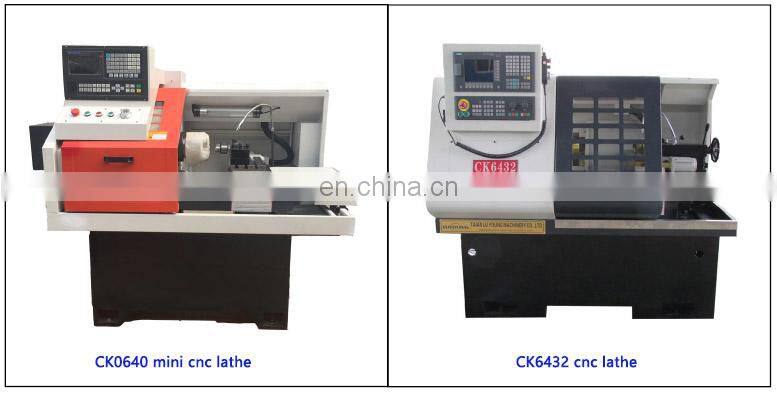

CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |

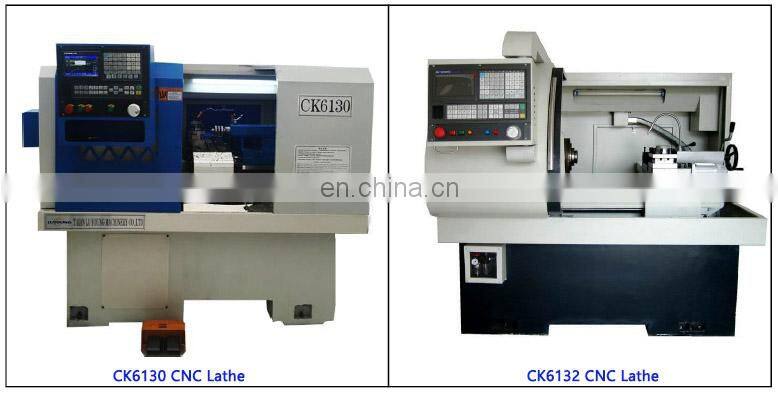

CK6130 small CNC lathe machine CK6132 small CNC lathe machine |

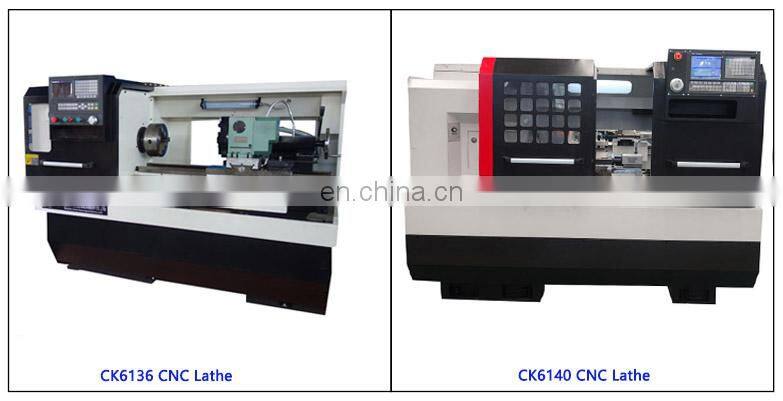

CK6136 middle lathe machine CK6140 middle lathe machine |

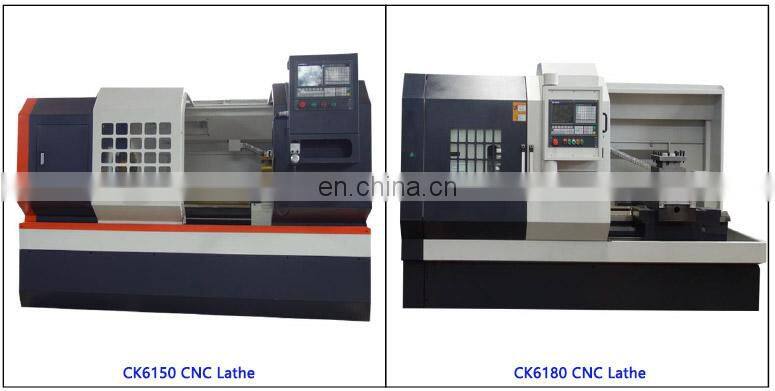

CK6150heavy duty CNC lathe machine CK6180 heavy duty CNC lathe machine |
Feature of ck6163 cheap precision horizontal precision chinese cnc metal lathe
1. large carrying capacity, high precision, reasonable structure, wide adaptability, easy operation and so on.
2.A wide range of processing, can be cone, surface, step axis, slot and thread CNC automatic processing, coupled with different accessories can be grinding, milling and curved surface processing.
3. High precision, key parts include bed, bedside box, knife, etc. are selected high-strength cast iron, good material stability, can withstand heavy cutting and long-term to maintain accuracy.
4.High torque, spindle selection High-power motor drive, high horsepower, high torque, even in the low speed state can also achieve high-precision heavy cutting.
5. Prevent the screw thermal deformation, feeding system with increased diameter, pre-stretched ball screw, screw to increase the rigidity and can effectively prevent the screw thermal deformation.
6. Reasonable structure, large bed and bedside box structure support, to ensure that the machine tool processing the best rigidity of cutting various parts.
Why you choose our ck6163 cheap precision horizontal precision chinese cnc metal lathe ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.

The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Best service from Lu Young

1.Sincerity. We only recommend the most suitable product to you not the most expensive product.
2.Flexibility.Please tell us your request, we re-design to you, produce the best goods to you.
3.Credit. You can place an order use TRADE ASSURANCE online, eliminate concerns about quality, delivery and payment.
4.Responsibility,We offer free training,depending on your situation, you can choose to train online or learn to the factory.
5.Meticulous,We provide technical information in detail, including the instructions machine, the accuracy of the test book, the map machine, supporting tools, etc.
6. In time.You can contact us at any time, our service time is 7 × 24 hours, we will reply within 12 hours you.
Strong packing will protect the goods from any possible damage during transit
Packing of ck6163 cheap precision horizontal precision chinese cnc metal lathe
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.Does the ck6163 cheap precision horizontal precision chinese cnc metal lathe can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
6.How to contact with you?
| My mobile/whatsapp: +86 18660853235; QQ:3494630853 |
