BK5018 High Quality Factory Price Automatic Cnc Slotting Machine for Metal
- T/T Credit Card
You May Like
-
Ck6180 High Quality Heavy Duty Large Diameter Fanuc Cnc Lathe Machine
-
XK7118 Small Cnc Milling Machine School With Vertical Hot Sale
-
Ck6136 China Flat Bed Specification of Small Metal Cnc Turning Lathe Machine With CE
-
Vmc7126 China Factory Price 3 Axis Small Metal Cnc Vertical Milling Machine With CE
-
Ck6163 Cheap Precision Horizontal Precision Chinese Cnc Metal Lathe
-
Ck6150 High Quality Flat Bed Precision Heavy Duty Cnc Lathe Machine With Fanuc Controller
Product Details
| Brand Name | luyoung | Place of Origin | Shandong, China | |
| Condition | New |
Product Description

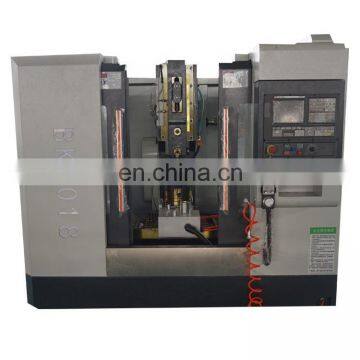

BK5018 high quality factory price automatic cnc slotting machine for metal
Model | Unit | BK5010 | BK5108 |
Ram maximum slotting length | mm | 120 | 180 |
Ram stroke adjustment | mm |
| 80 |
Ram per minute motion data | N/min | 60-320 | 46/60/90 |
Work table size | mm | 600x500 | 600X320 |
Table travel (X,Y) | mm | 300(x) | 460X320 |
The knife head supporting hole axis to distance of upright column for arm | mm |
| 400 |
The knife head supporting hole end to table working distance | mm | 270-720 | 480 |
X to the motor torque | N.M | 6 | 6 |
Y to the motor torque | N.M |
| 6 |
Fast moving | X(m/min) Y(m/min) |
| 5 5 |
Ball screw X |
|
| FFZD3205-3/P4 |
Ball screw Y |
|
| FFZD3205-3/P4 |
The main motor power | K w | 1.5kw | 1.5/2/2.2 |
Machine weight | kg | 1500 | 1800 |
Dimension LxWxH | mm | 200x1800x1950 | 2150x2150x2200 |
This BK5018 high quality factory price automatic cnc slotting machine for metal be used for interpolation plane, forming surface and Key way Etc. And BK5018 high precision cnc vertical slotting machine for metal price can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.
BK5018 high quality factory price automatic cnc slotting machine for metal is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining,
2. Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3. The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.
4. Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.
5. Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.
Why choose our BK5018 high quality factory price automatic cnc slotting machine for metal ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe,vertical slotting machine and shaper machine.
Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.

The products have exported more than 40 countries around the world, please look who choose us:

7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
FAQ:
1.Does this machine can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
