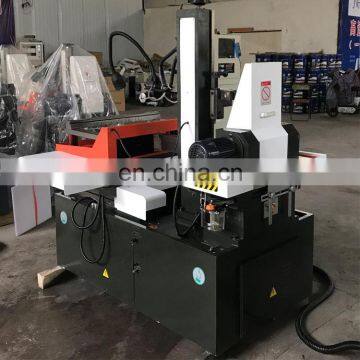

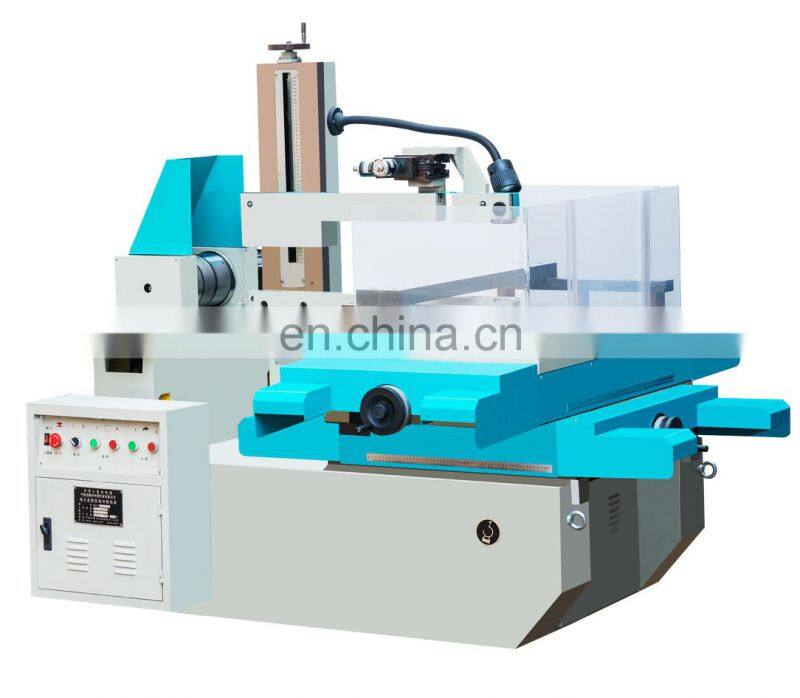

DK7750 China price top selling cutting machine wire

 Performance
 China price top selling cutting machine wire.Good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
Four axis linkage,wire breaking protection.It is especially suitable for mould processing

Features and Options

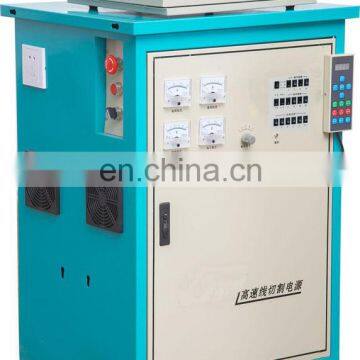

1.High-performance pulse power supply with mufti-level two-range amplifier, applicable to thick jobs, the thickest being≥800mm.

2.Stable, efficient,low-loss pulse power supply, the maximum cutting efficiency being 120mm/min and the molybdenum wire loss rate≤0.01/80000mm.

3.Backlash compensation:3B language direct compensation, ranging from 0-9999, as well as backlash compensation with the angle-clearing function, the all-angle rotation function, the translation function,the command reverse function, the command

reverse function and the proportionate scaling function.

4.The fuse protection function, the automatic centralizing and edge-tracing processing and the alarm upon finished job functions.

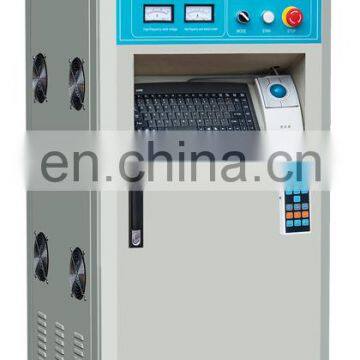

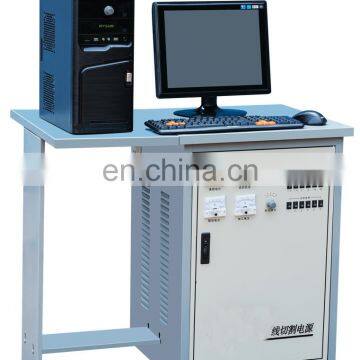

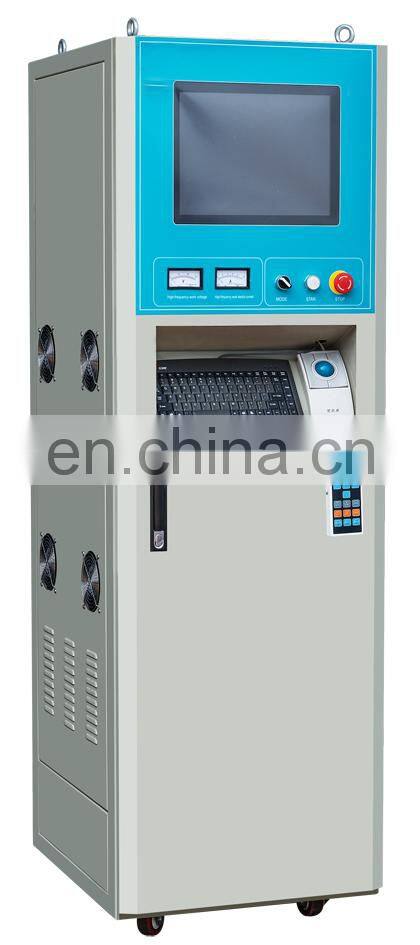

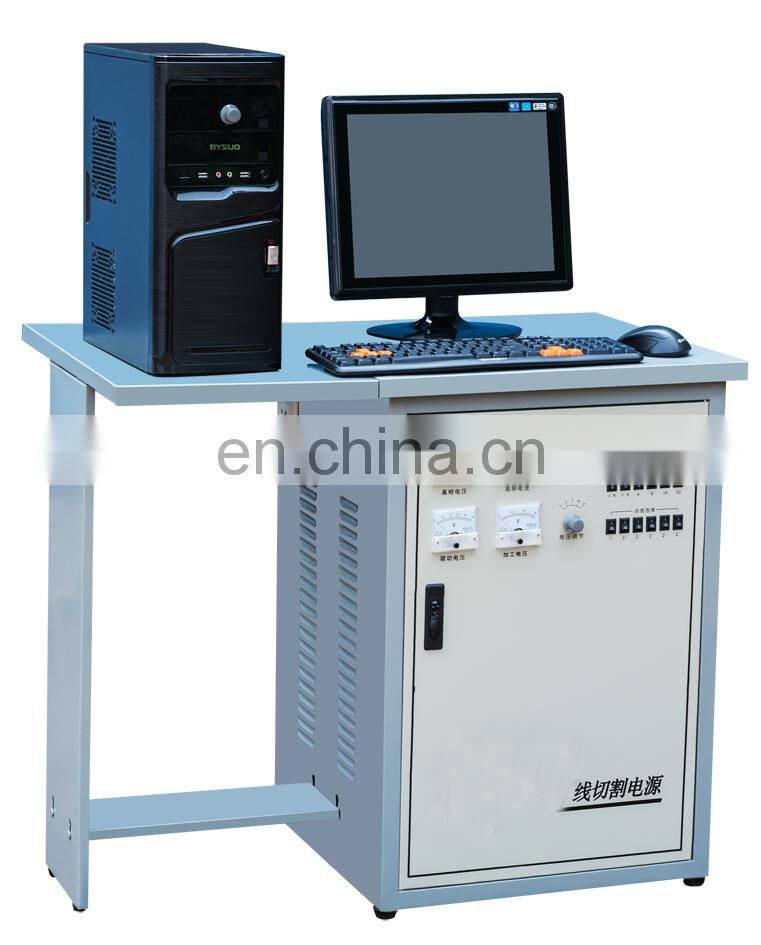

5.Industrial personal computer-controlled pulse power supply, vertical case, color interface,capable of automatic editing,ISO codes

 compatible with 3B,4B languages with simultaneous programming, color 3D figures and real-time cutting sample pictures on display.

6. Standard configure RS-232C interface, workable with Internet accession.

7. Optional hard disk installation and windows desktop, multiple choices for the customer.

 Features of the  China price top selling cutting machine wire:

      Special supporting design of the machine with high strength and heavy loading capacity.
     The machine uses the V-shape long span and long guiding rail structure lined with steel which helps the stability.
     The feeding wire part of the machine uses the driving system of gearwheel with lower noise and longer life.
     The maximum diameter of molybdenum wire is <= 0.25mm. The wire tube uses the chroming material with good
     wear resistance.
     The cutting accuracy of all direction is less than 0.01mm. Use high precision ball screw, which has high
     transmission efficiency,
     good positioning accuracy, long life and well synchronization performance. Use the high precision guide rail with
     high strength, heavy loading capacity and low resistance. High stability of the machine. The failure rate is almost 0.
     Apply beakless soft reversing, which prolongs the service life of reversing key. All the machine applies the high
     precision guide wheel appliance to enhance the accuracy of cutting. All the machine-tools use the laser
     interferometer to test the accuracy. (Renishaw Laser Test System from the great Britain).

  Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.cutting machine The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.

packaging and transportation

1. We use the special plywood box for export, and our products are shipped by sea.

2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
