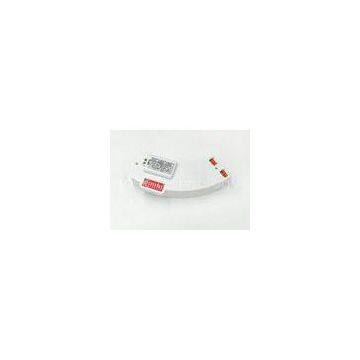

Small Microwave Motion Sensor MC008S E With 4 - Pole Press - In Terminal ( L , N , N , L )
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Temperature Control ON-OFF Microwave Motion Sensor 400 Watt 82x36.5x 25.5 mm
-
Dry Contact Detector / Microwave Motion Sensors Easy Assembly , Guaranty 5 Years
-
12v DC Microwave Ceiling Mount 360 Degree Motion Sensor For Hotel Management System
-
Detachable 5.8GHz High Frequency Microwave Motion Sensor MC015S D
-
400W Microwave 220 - 240V AC Motion Sensor 5.8GHz 75MHz , ISM Wave Band
-
3 Step Dim 1-10V Microwave Light Motion Sensor For Pathway , 50000 Hours Life Time
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC008S E |
Product Description
Certification:TUV, CE & R&TTE
400W 5.8G ON-OFF Microwave Motion Sensor MC008S E with TUV & CE and R&TTE approval
Description
1.?Automatic switching based on motion and ambient light level.
2. Compact size makes it suitable to fix within most luminaires.
3. ?4-pole press-in terminal (L, N, N,L′),easy assembly
4. Zero-crossing point operation helps protect the sensor against in-rush current..
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7. MC008S E is an innovative and active motion detector with HF system 5.8GHz. It automatically switches on/off light based on motion and ambient light level. Can control all kinds of lamps, for example, halogen, fluorescent and LED lights. Compact size and small casing, suitable to fix within most luminaires . Motion can be detected through plastic, glass and thin non-metal materials.
Function:
ON-OFF function?
Detection Patter:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
Inductive :400W,Resistive : 800W |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
12m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-20℃~60℃ |
|
Hold time |
10s / 30s / 90s / 3min / 20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Applications:
Stairwell, Corridor,Balcony, Pathway, etc
wiring:
