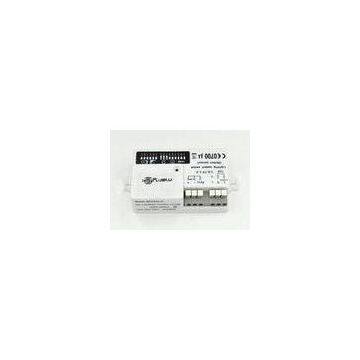

120 - 277V AC Cluster control Microwave Motion Sensor MC022V C 800W
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wireless Networking Microwave RF Motion Sensor MC022V - CP , Detection Sensitivity 100
-
400W 5.8G Radar Detector ON - OFF Microwave Motion Sensor Automatic Switching
-
50mA 1-10V DC Dimming Daylight Harvesting Sensor For Office Lighting
-
250mA to 700mA Daylight Harvesting Sensor ML30C-PV , LED Dimming Driver
-
Energy Saving LED Dimmer Driver With Ambient Light Dependent Control
-
50w Dimmable LED Driver 1-10V / Day Light Harvesting Sensor , Detection Angle 90
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC022V/C |
Product Description
Certification:CE, R&TTE
800W 120-277Vac Input Cluster control Microwave Motion Sensor MC022V C With CE and R&TTE approval
Description
1.?Automatic switching based on motion and ambient light level.
2.?Built-in adjustable daylight sensor.
3.1-10V interface can match up with Merrytek stand-alone daylight sensor MS01 and achieve daylight harvesting.
4.?Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7.?MC022V/C is an innovative and active motion detector with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.Basically, MC022V/C has the same technical parameters and function as MC022V, with an extra function, cluster control.
Function:
ON-OFF function?
Specifications:
|
Operating voltage |
120-270Vac, 50/60Hz |
|
Rated load |
Inductive:800W@227Vac,400W@120Vac |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 8m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Stand-by period |
5s / 5min / 10min / 30min / 1h / Disable |
|
Stand-by dimming level |
10% / 20% / 30% / 40% / 50% |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Applications:Wiring:
Stairwell, Corridor,Balcony, Pathway, etc
