Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | ML25C-V + MS01 |
Product Description
Certification:CE , R&TTE

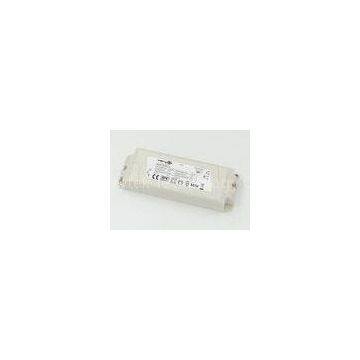

1x25W Dimmable led driver ML25C-V work with 1-10V Daylight Harvesting Sensor MS01
Description
? MS01 work with 1-10V Dimmable led driver ML25C-V to provides an energy saving without ?sacrificing visual comfort ? Output current 600mA ? With ambient light dependent control. ? Directly connected to 1-10V interface. ? Simple setting of the target light level by mean of potentiometer. ? MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V interface and using photocell to measure ambient lux level and automatically calculate how much artificial light is need, and then convert the amount of light to 1-10V dimmable control gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output according to the signal from the daylight sensor.Function:
Daylight harvesting?
Specifications:
|
Operating voltage |
1 - 10Vdc(MS01) 220-240Vac(ML25C-V) |
|
Max. current sink |
50mA(MS01) 600mA(ML25C-V) |
|
Dimming range |
1％~100％ |
|
Output voltage |
42Vdc max |
|
Cable length |
80Cm |
|
Color coding of cable |
Red+, Black- |
|
Detection angle |
? ? ? ? 90° |
|
IP rating |
?IP20 |
|
Operation Temperature |
?-0℃~45℃(MS01) -20℃ ~ 50 ℃(ML50C2-PV) |
Applications:
Office, Workshop, Warehouse, etc
