Home > Products > Daylight Harvesting Sensor > 50w Dimmable LED Driver 1-10V / Day Light Harvesting Sensor , Detection Angle 90
50w Dimmable LED Driver 1-10V / Day Light Harvesting Sensor , Detection Angle 90
Negotiable
/ Kilogram
1 Kilogram(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Classroom Light Daylight Harvesting Sensor , 1-10V Dimmable Led Driver 25W
-
350mA to 1050mA Dimming LED Driver ML50C-PV Work With MW Sensor MC008S
-
80Cm Cable 2 x 25W daylight Harvesting Sensors 220 - 240Vac ML50C2-PV
-
Auto Switch Off And Dimming MW Sensor Daylight Harvesting Sensor CE R&TTE
-
1-10V Dimmable LED Driver / Daylight Harvesting Sensor For Meeting Room Light
-
Multi - function Dimmable LED Driver For Workshop And Warehouse Light / HF Sensor
Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | ML50C2-PV + MS01 |
Product Description
Certification:CE , R&TTE

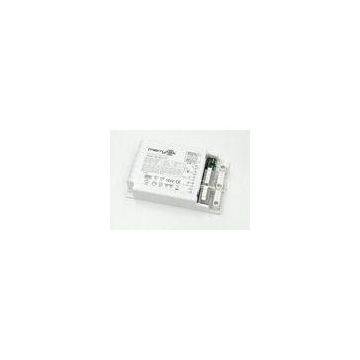

2x25W Dimmable led driver ML50C2-PV work with 1-10V Daylight Harvesting Sensor MS01
Description
?MS01 work with Dimmable led driver ML50C2-PV to provides an energy saving without ? ?sacrificing visual comfort ?Output current to load selectable from 250mA to 700mA ?With ambient light dependent control. ?Directly connected to 1-10V interface. ?Simple setting of the target light level by mean of potentiometer. ?MS01 supplies a simple and effective solution for daylight harvesting. Connecting to 1-10V ?interface and using photocell to measure ambient lux level and automatically calculate how ?much artificial light is need, and then convert the amount of light to 1-10V dimmable control ?gears (ballasts or LED drivers).1-10V dimmable control gears adjust the lighting output ?according to the signal from the daylight sensor.Function:
Daylight harvesting?
Specifications:
|
Operating voltage |
1 - 10Vdc(MS01) 220-240Vac(ML50C2-PV) |
|
Max. current sink |
50mA(MS01) 700mA(ML50C2-PV) |
|
Dimming range |
1％~100％ |
|
Output voltage |
60Vdc max |
|
Cable length |
80Cm |
|
Color coding of cable |
Red+, Black- |
|
Detection angle |
? ? ? ? 90° |
|
IP rating |
?IP20 |
|
Operation Temperature |
?-0℃~45℃(MS01) -20℃ ~ 50 ℃(ML50C2-PV) |
Applications:
Office, Workshop, Warehouse, etc
