Product Details
| Brand Name | Merrytek | Place of Origin | China | |
| Model Number | MC022V- CP |
Product Description
Certification:ETL ,FCC, R&TTE

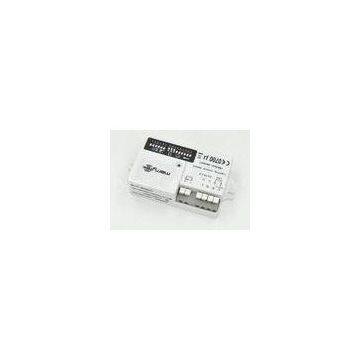

800W 120-277Vac Input RF Wireless Networking Microwave Motion Sensor MC022V - CP ETL FCC and R&TTE approval
Description
1.?Used in wireless networking of luminaires ,easy to install and free of wire .
2.?With advanced code detection technology, no code missing.
3.?Automatic switching based on motion and ambient light level.
4.?Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6.?4-pole press-in terminal (L, N, N,L′),easy assembly.
7.?Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8.?MC022V-CP is innovative and active motion detector with HF system 5.8GHz .Motion can be detected through plastic ,glass and thin non-metal materials .Merrytek takes the lead in using the rotary coding switch in RF transceiver ,very easy to create groups?
Function:
Any-to-any communication?
Specifications:
|
Operating voltage |
120-270Vac, 50/60Hz |
|
Rated load |
Inductive: 800W@227Vac,400W@120Vac |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 8m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~70℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
