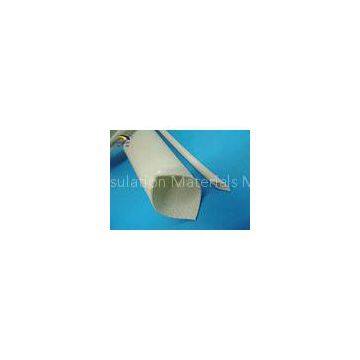

Anti-corrosion High Voltage Resistant PTFE Tube PTFE Products for Motor Use
- T/T L/C D/P D/A
- 7 days
You May Like
-
White or Black PTFE Hose / Tubing / Sleeving for Electric Products -80C 260C
-
4.0KV Red White Yellow Silicone Fiberglass Sleeving Flexible and Flame Retardant
-
High Temperature PTFE Tube PTFE Products , High voltage PTFE Pipes Low Friction
-
100% Virgin Extruded Clear PTFE Tube / Pipe Pure White With Smooth Surface
-
Self-extinguishable Silicone Fiberglass Sleeving Multi Color Silicon Tubing Insulation Sleeve
-
High Temperature Silicone Fiberglass Sleeving for Insulators Fireproof and Eco-friendly
Product Details
| Brand Name | SUNBOW | Place of Origin | China | |
| Model Number | SB-PTFE |
Product Description
Certification:ROHS, REACH, UL
Anti-corrosion high voltage resistant PTFE tube PTFE products for motor products
Quick detail
1.Strength (high strength-to-weight ratio)
2.High temperature resistance
3.Biocompatibility
4.Low coefficient of friction
5.Low temperature resistance
6.High thermal resistance
7.High chemical resistance in harsh environments
8.Various size and color
9.Low water adsorption
10.Good weathering properties
Model number:SB-PTFE
Operating temperature: -80oC ～ 260oC
Usage
PTFE tube manufacture by extrusion process with imported high quality PTFE resin. It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.
Characteristics
1. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);
2. High voltage resistance (45kv/mm)
Specification
|
Item |
Standard |
Item |
Standard |
|
Relative Density |
2.14～2.20 |
Melting Point (oC) |
327 |
|
Tensile Strength (MPa) |
≥25 |
Operating Temperature (0C) |
-80～260 |
|
Stretch Yield Strength (MPa) |
≥11 |
Oxygen index(%) |
>90 |
|
Elongation (%) |
≥300 |
Water Absorption (%) |
<0.01 |
|
Arc Resistance |
>300 |
Linear Expansion Coefficient (×105/ oC)21～1000C |
10 |
|
Shore Hardness (D) |
59～63 |
breakdown strength (kv/mm) |
≥45 |
|
volume resistance (Ω.cm) |
1×1016 |
Dimension
|
AWG |
Inside Diameter? (mm) |
Outside Diameter (mm)(S) |
Outside Diameter (mm)(T) |
Outside Diameter (mm)(L) |
Standard Package |
|
(m/roll) |
|||||
|
30 |
0.30±0.10 |
0.80±0.10 |
0.70±0.10 |
0.64±0.10 |
305 |
|
28 |
0.38±0.10 |
0.88±0.10 |
0.78±0.10 |
0.72±0.10 |
305 |
|
26 |
0.46±0.10 |
0.96±0.10 |
0.86±0.10 |
0.80±0.10 |
305 |
|
24 |
0.56±0.10 |
1.16±0.10 |
1.06±0.10 |
0.90±0.10 |
305 |
|
23 |
0.66±0.10 |
1.26±0.10 |
1.16±0.10 |
1.00±0.10 |
305 |
|
22 |
0.71±0.10 |
1.31±0.10 |
1.21±0.10 |
1.05±0.10 |
305 |
|
21 |
0.81±0.10 |
1.41±0.10 |
1.31±0.10 |
1.15±0.10 |
305 |
|
20 |
0.86±0.10 |
1.66±0.10 |
1.46±0.10 |
1.20±0.10 |
305 |
|
19 |
0.96±0.20 |
1.76±0.20 |
1.56±0.20 |
1.30±0.20 |
200 |
|
18 |
1.07±0.20 |
