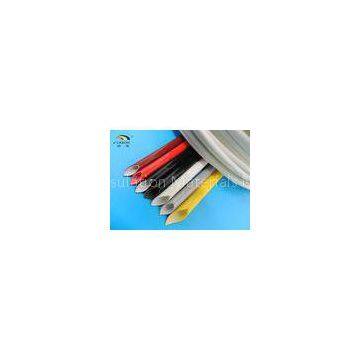

Colorful Silicone Rubber Fiberglass Sleeving / Braided Fiber Glass insulation Sleeve
- T/T L/C D/P D/A
- 7 days
You May Like
-
Electric Wires Varnished Silicone Fiberglass Sleeving / Fiber Glass Insulation Sleeve
-
Fireproof Outer Silica Inner Silicone Fiberglass Sleeving for Wire Insulating 0.5mm ~ 30.0mm
-
Silicone Coated Fiberglass Braided Sleeving / Insulation Silicon Glass Tube Cable Sleeve
-
Eco-friendly Rubber Silicone Fiberglass Sleeves Multi Color for Customized 0.5mm ~ 30.0mm
-
Electric Wires Varnished Silicone Fiberglass Sleeving High Temperature Resistant
-
Wire Insulating Rubber Silicone Coated Fiberglass Sleeving with UL RoHS Approval
Product Details
| Brand Name | Sunbow | Place of Origin | China | |
| Model Number | SB-SGS-25 |
Product Description
Certification:UL , RoHS , Reach , CSA
Wire Insulating Fiberglass Sleeve Silicone Rubber Coated with UL RoHS Reach Approval
1. Product Description
Wire Insulating Fiberglass Sleeve Silicone Rubber Coated with UL RoHS Reach Approval?is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.
2. Application
SB-SGS-25?sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.?
3. Model Number: SB-SGS-25
4. Working temperature: 200oC
5. Specification
|
Item |
Performance |
Note |
|
|
Dielectric Breakdown Voltage?? KV? AC |
Minimum Average |
≥2.5 |
Before Aging? |
|
Minimum Single Point |
≥2.0 |
||
|
Minimum Average |
≥1.5 |
6 Hrs* 245±5oC 245±5oC 6Hrs Aging |
|
|
Minimum Single Point |
≥1.0 |
||
|
Thermal Endurance |
No Indication of Crack |
OK |
6 Hrs* 245±5oC 245±5oC 6Hrs Aging |
|
Fire Resistance |
VW-1 |
OK |
UL 1441 |
6. Dimension
|
Inside Diameter |
Wall Thickness (mm) |
Standard Package???????? (m/roll) |
|
|
Nominal (mm) |
Tolerance (mm) |
||
|
φ0.5 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ1.0 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ1.5 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ2.0 |
+0.2, -0.1 |
≥0.30 |
200 |
|
φ2.5 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ3.0 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ4.0 |
+0.3, -0.1 |
≥0.35 |
200 |
|
φ4.5 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ5.0 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ6.0 |
+0.3, -0.1 |
≥0.40 |
100 |
|
φ7.0 |
+0.3, -0.1 |
≥0.45 |
100 |
|
φ8.0 |
+0.3, -0.1 |
≥0.45 |
100 |
|
φ9.0 |
+0.3, -0.1 |
≥0.55 |
100 |
|
φ10.0 |
+0.3, -0.1 |
≥0.55 |
100 |
|
φ12.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ14.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ16.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ18.0 |
+1.0, -1.0 |
≥0.55 |
50 |
|
φ20.0 |
+1.0, -1.0 |
≥0.65 |
25 |
|
φ25.0 |
+1.0, |
