Electric Wires Varnished Silicone Fiberglass Sleeving / Fiber Glass Insulation Sleeve

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunbow		Place of Origin	China
Model Number	SB-SGS-25

Product Description

Delivery Time:3~7 Working Days
Certification:UL , RoHS , Reach , CSA

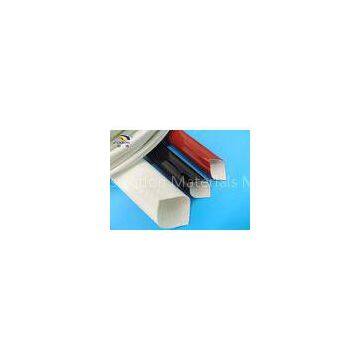

Electric Wires High Temperature Silicone Varnished Fiberglass Insulation Sleeve

1. Product Introduction

Electric Wires High Temperature Silicone Varnished Fiberglass Insulation Sleeve?is non-alkali fiberglass braided then coated with silicone resin and treated in high temperature.

2. Model Number:?SB-SGS-25

3. Working temperature:?200oC

4. Specification

Item	Performance	Note
Dielectric Breakdown Voltage?? KV? AC	Minimum Average	≥2.5	Before Aging?
Minimum Single Point	≥2.0
Minimum Average	≥1.5	6 Hrs* 245±5oC 245±5oC 6Hrs Aging
Minimum Single Point	≥1.0
Thermal Endurance	No Indication of Crack	OK	6 Hrs* 245±5oC 245±5oC 6Hrs Aging
Fire Resistance	VW-1	OK	UL 1441

5. Usage

SB-SGS-25?sleeving with its good dielectric strength, flexibility and flame retarding properties make it high performance qualities. It can be widely used in insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.?

6. Dimension

Inside Diameter	Wall Thickness (mm)	Standard Package???????? (m/roll)
Nominal (mm)	Tolerance (mm)
φ0.5	+0.2, -0.1	≥0.30	200
φ1.0	+0.2, -0.1	≥0.30	200
φ1.5	+0.2, -0.1	≥0.30	200
φ2.0	+0.2, -0.1	≥0.30	200
φ2.5	+0.3, -0.1	≥0.35	200
φ3.0	+0.3, -0.1	≥0.35	200
φ4.0	+0.3, -0.1	≥0.35	200
φ4.5	+0.3, -0.1	≥0.40	100
φ5.0	+0.3, -0.1	≥0.40	100
φ6.0	+0.3, -0.1	≥0.40	100
φ7.0	+0.3, -0.1	≥0.45	100
φ8.0	+0.3, -0.1	≥0.45	100
φ9.0	+0.3, -0.1	≥0.55	100
φ10.0	+0.3, -0.1	≥0.55	100
φ12.0	+1.0, -1.0	≥0.55	50
φ14.0	+1.0, -1.0	≥0.55	50
φ16.0	+1.0, -1.0	≥0.55	50
φ18.0	+1.0, -1.0	≥0.55	50
φ20.0	+1.0, -1.0	≥0.65	25
φ25.0	+1.0, -1.0
