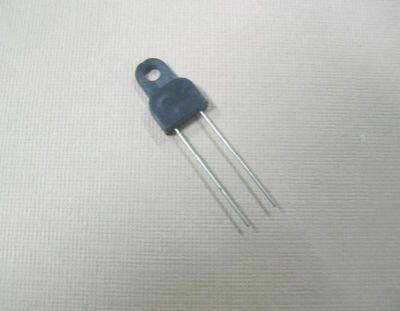

Industrial power backup NTC sensor:THERM-O-DISC ASN1H103K/10J1H0064
Negotiable
/ Piece
2500 Pieces(Min.Order)
- 10000000 Piece / Pieces per Month
- Shang Hai
- T/T
- 7 days
You May Like
-
MICROTEMP? 141 °C thermal fuses/thermal links from Therm-O-Disc
-
THERMODSIC Electric Water Heater Temperature Controls--59T, 66T Series
-
MICROTEMP? 93 °C thermal fuses from Therm-O-Disc
-
MICROTEMP? 121 °C thermal fuses/thermal cutoffs from Therm-O-Disc
-
Thermostat & Thermal Fuse for Semiconductor Heating Jacket System
-
ESKA Axial Leaded Temperature-Fuses,761.000/770.000/771.000 Series,THERMODISC G7-Series,G4-Series
Product Description
Therm-O-Disc developed NTC sensor packages especially for the PCB / electronics market. These NTC sensor products are intended to be soldered directly on a printed circuit board.
Applications
? Heat sink monitoring
? Surface temperature monitoring for power supplies, power amplifiers,industrial power backup
? Motor controllers
Operating Temperature Range: -40° to 200°C
Thermal Time Constant: 12 seconds typical (oil) 25°C/85°C
Dissipation Constant: 2mW/°C
Dielectric Withstand: 1500 VDC
Resistance vs. Temperature Multiplier Values:
Description:NTC THERM 10K 10% SCREW MNT PCB RAD
Beta 25°C/75°C=3965+/-2%
R25°C=10KΩ+/-10%
MFR: THERM-O-DISC
MPN: ASN1H103K , 10J1H0064
