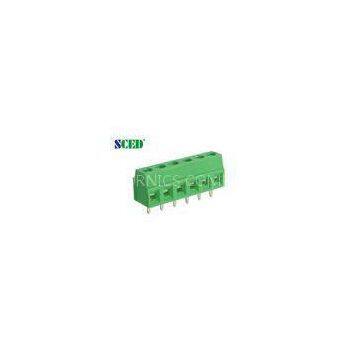

2-28P PCB Screw Terminal Blocks , 300V 10A Pitch 3.5mm for Power Supply
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
300V 10A PCB Terminal Blocks 2P-28P Euro Type Raising Series
-
2P-24P PCB Terminal Blocks Pitch 5.0mm Euro Type Raising Series
-
Pitch 3.50mm PCB Spring Terminal Block , 300V 5A 28P Screwless Terminal Blocks
-
300V 5A Single Deck Spring Screwless Terminal Block Pitch 3.50mm 2P - 28P
-
9.525mm PCB Barrier Terminal Block , Double Levels Electrical Terminal Blocks
-
Din Rail Terminal Blocks , Compact Din Rail Mount Terminal Blocks
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TJ381-08 |
Product Description
Certification:UL, CE
2-28P PCB Screw Terminal Blocks , 300V 10A Pitch 3.5mm for Power Supply
?Detailed product Description:
?PCB Terminal blocks, Pitch 3.5mm, 300V 10A, 2P-28P, PCB screw terminal blocks, Euro type Raising series?
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current????????????? V/A |
300/10 |
||
|
Wire Range?????? ????????????????AWG |
16-24 |
||
|
IEC Technical Data |
|||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current????????????? V/A |
160 / 10 |
200 / 10 |
400 / 10 |
|
Rated Surge Voltage???????????????? KV |
2.5 |
2.5 |
2.5 |
|
Rated Connecting Capacity???? ??????mm2 |
1.0 |
||
|
Material |
|||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|||
|
PCB Hole Diameter????????????????? mm |
φ1.3 |
||
|
Stripping Length??????????????????? mm |
4-5 |
||
|
Screw / Torque??????????????????? / lbf.in |
M2 / 1.8-2.0 |
??Drawing Specifications:
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Stable good quality Competitive price Quickly response Full range products for selection Flexible to design the exact part per customers\' demand?Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer, terminal block supplier.
