Good Quality - High Voltage Capacitor
- 0 Piece / Pieces per Month
- Shanghai
- T/T L/C
- 30 days
You May Like
Product Details
Type | Polystyrene-film-capacitors | Application | General Purpose, Power, High Voltage | |
Usage | High Frequency Coupling, Filter | Structure | Fixed Capacitor | |
Electrolyte | Electrolytic | Manufacturing Material | Polypropylene | |
Filter | Aluminum Electrolytic Capacitor | Packaging Type | Surface Mount | |
Capacitance | 50-100uf | Transport Package | Wooden Case | |
Origin | China |
Product Description
Application:
The capacitor suitable for parallel connection in industrial frequency alternating
current system,which is used to improve power factor of the power grid, improve
voltage quality and reduce line loss.
Technical parameters:
Voltage level: 1 ~ 24kV
Capacity level: 100 ~ 800kvar
Capacitance deviation: -3% ~ +5%
Dielectric loss tangent value: ≤0.03%
Protection methods: internal fuse or no fuse
Product introduction:

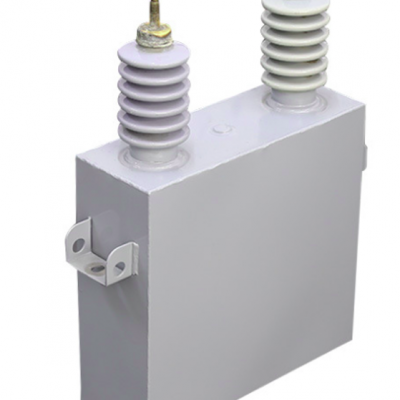

The shunt capacitor consists of a core, a fuel tank, and an outlet porcelain casing.
The core of the shunt capacitor is composed of a series of components, parallel connection
and insulation parts.The tank of the parallel capacitor is welded with high-quality steel plate,
and the outlet casing is welded on the box cover. The shunt capacitor can be designed as an
internal fuse or no fuse structure.
Work Condition:
The altitude is less than 2000m
Ambient temperature: -40 to 45°C
Installation site: indoor or outdoor
There is no conductive or explosive dust, no harmful gas and steam, and no
severe mechanical vibration in the installation and operation area.
Executive standard:
GB/T 11024.1-2010
IEC 60871
