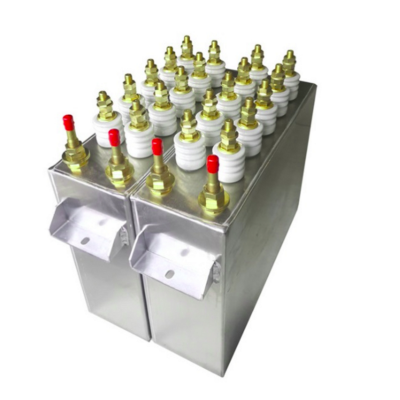

Medium Frequency Capacitor for melt /heating Furnace
USD $120 - $800
/ Piece
10 Pieces(Min.Order)
- 0 Piece / Pieces per Month
- Shanghai
- T/T L/C
- 30 days
You May Like
Product Details
| Type | Polystyrene-film-capacitors | Application | General Purpose, Power | |
| Usage | High Frequency Coupling, Filter | Structure | Fixed Capacitor | |
| Electrolyte | Electric Heating | Manufacturing Material | Polypropylene | |
| Filter | Aluminum Electrolytic Capacitor | Packaging Type | Surface Mount | |
| Capacitance | 50-100uf | Transport Package | Wooden Case |
Product Description
The capacitor is suitable for controlled or adjustable AC voltage system , and specifically dedicated to improve power factor and circuit property in applications such as induction heating, melting,agitating, casting thermal treatment etc.
Operational Requirement
| Place installed | indoors |
| Altitude | less than 1000m |
| Ambient Temperature | -20℃ ~+50℃ |
| Capacitance Tolerance | -5%~+10% |
| Max voltage | rated voltage ×1.05 |
| Max current | rate current ×1.15 |
| Dielectric Material | Polypropylene film |
| Insulation oil | PEPE or M/DBT (Non-PCB) |
| Cooling mode | water cooled or Air cooled |
| Water Pressure Required | about 0.25~0.35Mpa (max. 1Mpa) |
| inlet water temperature | No more than 35℃ |
| outlet water temperature | No more than 45℃ |
| Pressure switch | Normally closed (NC) type OFF 0.08Mpa ON 0.05Mpa |
| Body material | Aluminium alloy sheet -thickness 3mm |
| Installation Mode | Normally Vertically installed |
| Max. tighten Torque | 20N.m |
| Implementation Standard | IEC60110-1:1998 |
