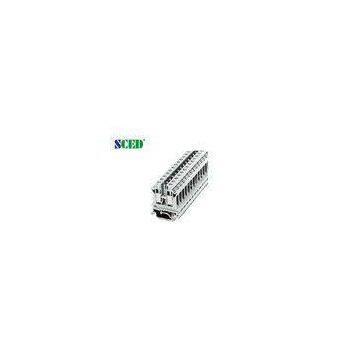

10.2mm Rail-Mounted Terminal Blocks , AWG 24 - 6 600V 65A Barrier Terminal Block

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TR-10N

Product Description

Delivery Time:7-20 working days
Certification:UL, CE

Detailed product Description:
10.2mm Rail-Mounted Terminal Blocks , AWG 24-6 600V 65A Barrier Terminal Block, Din Rail Terminal Blocks,? Compact Din Rail Mount Terminal Blocks
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Level;? □Double levels;? □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:

?
?
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
?

Description??????????????????? Color	Type
Terminal?????????????????????? Grey?	TR-10N
End Cover????????????????????? Grey? ?	D-TR-3/16
Fixed Bridge ?	FBI 10-10 ???????Imax: 76A
Insertion Bridge ?	EB 10-10? ???????Imax: 76A
Separating Plate ?	TS-K
Partition Plate ?	ATP-TR
Zack Strip????????????????????? White	ZB10
Screwdriver	SZS 1.0×4.0
Rail Material	aluminum
Dimensions???????????????????????????? mm	10.2/42.5/2
Height (U35: 7.5/U35: 15G 32)????????????? mm	47/54.5/52
Screw / Torque?????????????????????????? Nm	M4 / 1.5-1.8
Stripping Length????????????????????????? mm	10
IEC Technical Data
Max. Load Current / Cross Section???????? A / mm2	76 / 16
Rated Surge Voltage / Contamination Class??? KV / -	8 / 3
Surge Voltage Category	Ⅲ

?
Competitive Advantage:
?

Stable good quality Competitive price Quickly response Full range products for selection Flexible to design the exact part per customers’ demand
