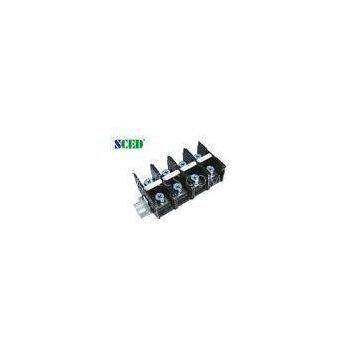

600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P - 20P

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 0 Set / Sets per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TR175-01-FaM0

Product Description

Delivery Time:7-20 working days
Certification:UL, CE

Parameter and Drawing Specifications:
?

UL Technical Data	B	C	D
Rated Voltage / Current????????????? V/A	600 / 175	600 / 175
Wire Range?????????????????????? AWG	3/0-20	3/0-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current????????????? V/A	800 /175	1000 / 175	1000 / 175
Rated Surge Voltage???????????????? KV	8	8	8
Rated Connecting Capacity?????????? mm2	80
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length????????????????? mm	14-18
Screw Torque??????????????????? mm	M8/31-40

?
?
Detailed product Description:
?
600V 175A Barrier Rail Mounted Terminal Blocks Connectors Pitch 32.00mm 2P-20P, any pole available
■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet
■Single Level;? □Double levels;? □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors
?
?
How to order:

?
?
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
?

?
Competitive Advantage:
?

Stable good qualityCompetitive priceQuickly responseFull range products for selectionFlexible to design the exact part per customers’ demand?
